Name: 192 Cores Armoured Steel Tape GYTA GYTS GYFTY53 Fiber Optic Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTS/GYTA
Price: 130.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Place Of Origin: Guangzhou,China

Brand Name: Jiqian

Model Number: GYTS/GYTA/GYFTY53

Number Of Conductors: ≥ 10

Fiber Count: 4-288 Cores

Installation: Conduit/Underground

Strength Member: Central: Steel Wire Or FIberglass Reinforced Plastic (FRP)

Certification: ISO9001/ROHS/CE/FCC

Manufacturer: Yes

Highlight:

GYFTY53 Fiber Optic Cable

192 Cores GYTS Cable

Armoured Steel GYTS Cable

Basic Infomation

Place of Origin: China

Brand Name: Jiqian

Certification: ISO 9001/CE/FCC/ROHS

Model Number: GYTS/GYTA

Payment & Shipping Terms

Packaging Details: Plywood drum

Delivery Time: 3-5 days,it depends on order quantity

Payment Terms: T/T,Alipay, Western Union, L/C

Supply Ability: 4500km per month

Gallery

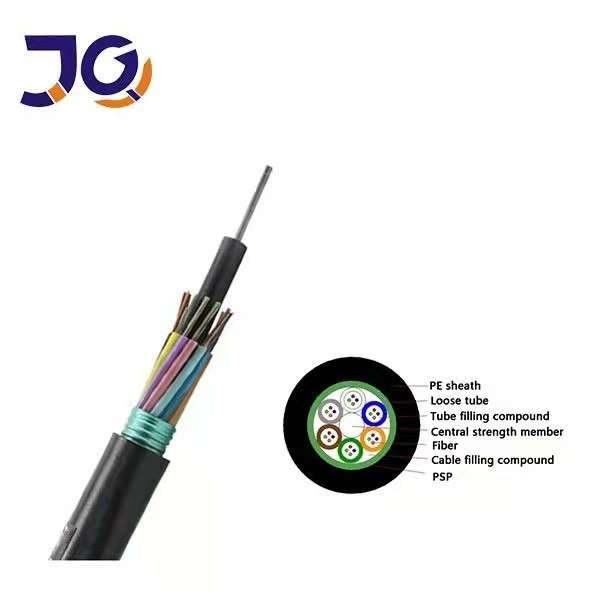

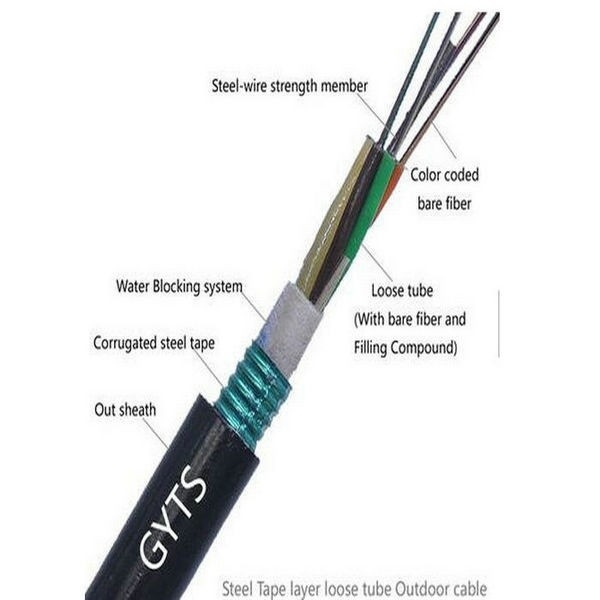

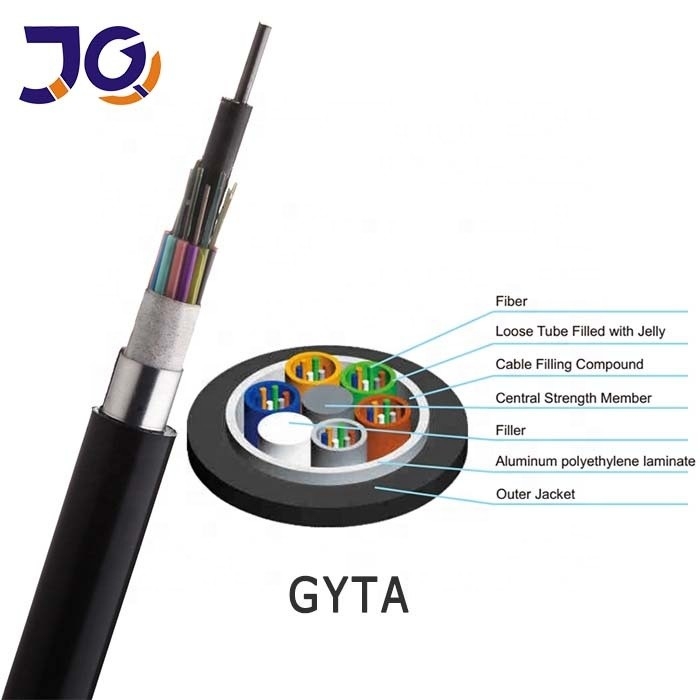

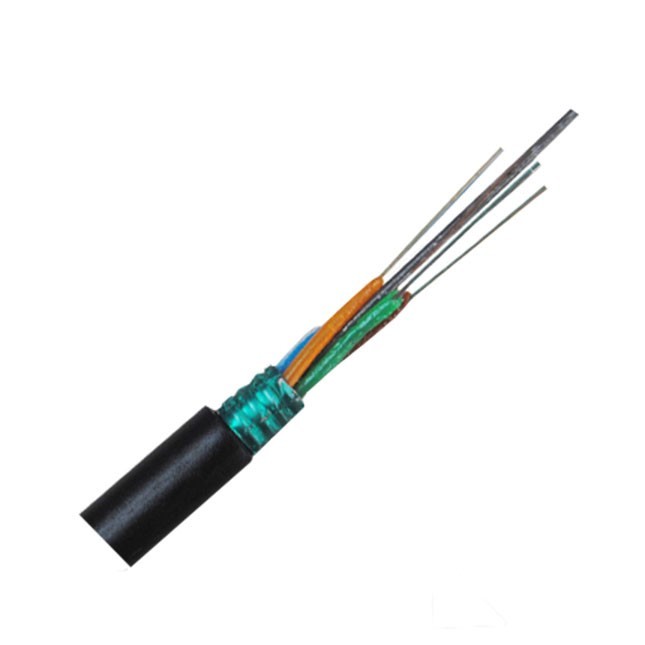

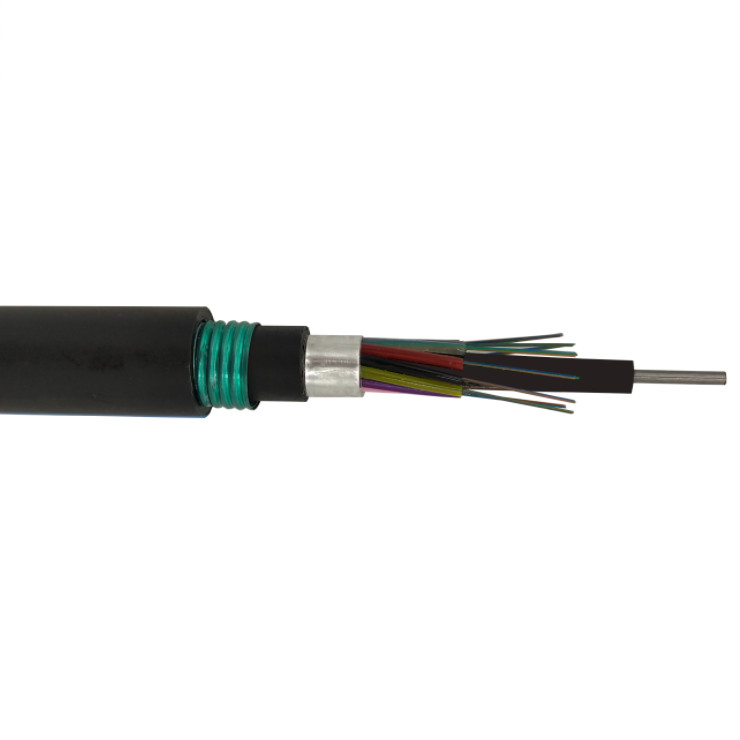

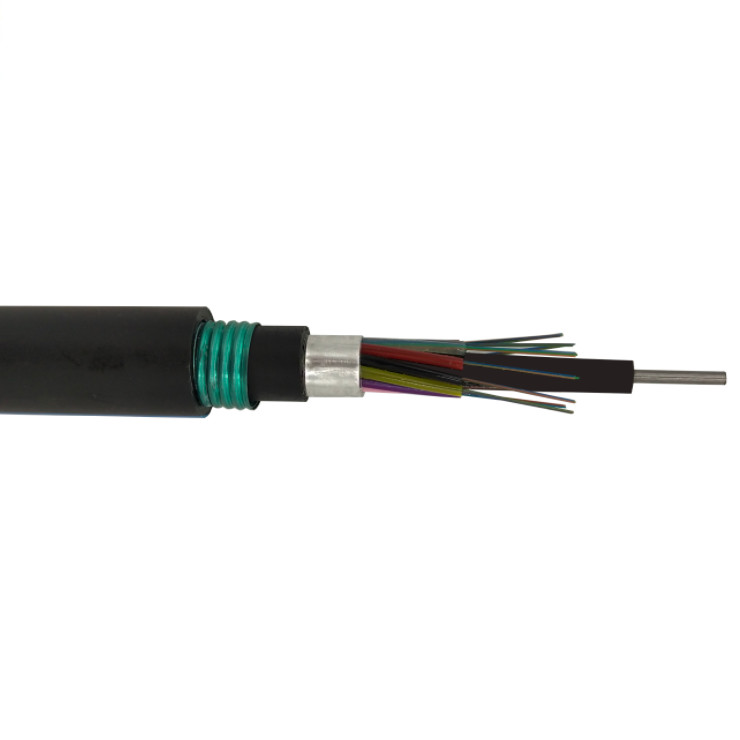

192 Cores Armoured Steel Tape GYTA GYTS GYFTY53 Fiber Optic Cable

Product Description

2 4 6 8 12 24 48 96 144 192 288 Cores Armoured Steel Tape GYTA/GYTS/GYFTY53 Fiber Optic Cable

192 Cores Armoured Steel Tape GYTA GYTS GYFTY53 Fiber Optic Cable 0

Features:
Choice of Fibre Type
Colour code of Fiber
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance

Appicable fields:

Duct/Underground

Fiber parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		mm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.36
Attenuation Coefficient	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100

Cable Performance

Item		Parameters
Fiber Count		24
Colored coated fiber	Dimension	250µm±15µm
Colored coated fiber	Color	Blue,Orange,Green,Brown,Gray,White
Loose tube	Dimension	2.2mm±0.1mm
	Material	PBT
	Color	Blue,Orange,Green,Brown
Filler	Material	PE
Filler	Color	Black
Central Strength Member	Dimension	1.6mm±0.05mm
Central Strength Member	Material	Phosphating steel wire
Armoured	Material	Plastic coated steel strip
Outer jacket	Material	PE
Outer jacket	Color	Black

Packing:

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
