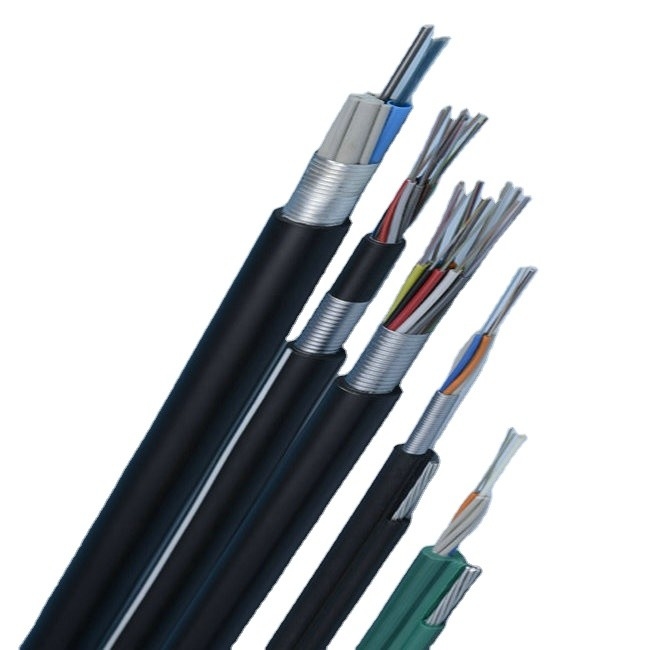

Fiber Cable GYTS Armoured Duct 24 48 96 144 288 Cores Optical Fiber Cable

Product Description

Outdoor Self Supporting Aerial Fig 8 Fiber Optic Cable FTTH Gyxtc8s 4 6 8 12 Core Optical Fiber Cable







Fiber Optic G652D

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

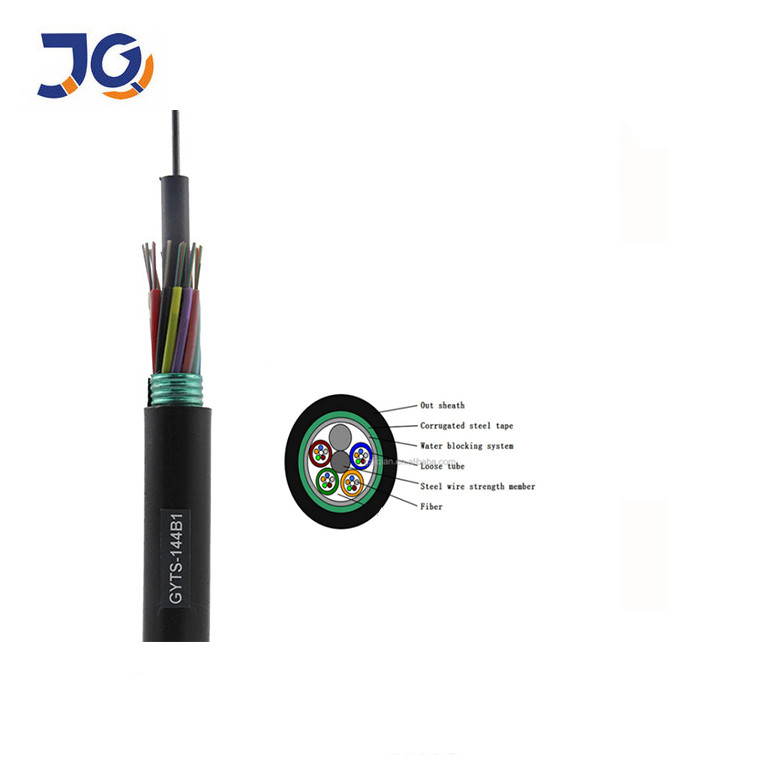

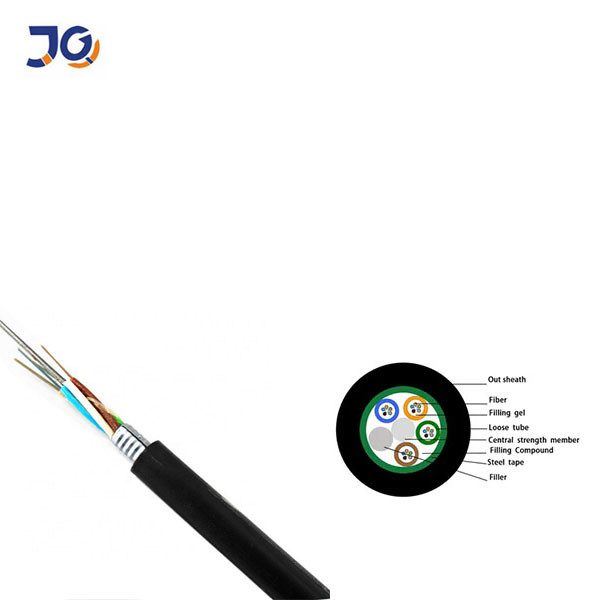

Cable performance:

Item		Parameters
Fiber Count		24
No. of Fiber per tube	Dimension	250µm±15µm
	6 fibers	Color
		Blue,Orange,Green,Brown,Gray,Natural
Loose tube	Dimension	2.2±0.1mm
	Material	PBT
	4 tubes	Blue,Orange,Green,Brown,
Filler	Material	PE
	Color	Black
Central Strength Member	Dimension	1.6mm
	Material	Phosphating steel wire
Armoured	Material	Plastic coated steel strip/Aluminium
Outer jacket	Material	PE
	Color	Black

Certification:





FAQ:



1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days,It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
