GYTS 24core Duct Fiber Optic Cable
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
Minimum Order Quantity : | 1km | Packaging Details : | 2/3km |
---|---|---|---|
Delivery Time : | 3-5 days | Payment Terms : | L/C, T/T, Western Union,Alipay |
Supply Ability : | 4500 per month |
Place of Origin: | China | Brand Name: | Jiqian |
---|---|---|---|
Certification: | ISO 9001/CE/FCC/ROHS | Model Number: | GYTS/GYTA |
Detail Information |
|||
Place Of Origin: | Guangzhou,China | Brand Name: | Jiqian |
---|---|---|---|
Model Numer: | GYTS/GYTA | OEM: | Available |
Sheath Material: | PE | Manufacturer: | Yes |
Strength Member: | Steel Wire | Certification: | CE/ROHS/FCC/ISO9001 |
Highlight: | 96 Cores Optical Fiber Cable,Armoured Duct Optical Fiber Cable |
Product Description
Outdoor Self Supporting Aerial Fig 8 Fiber Optic Cable FTTH Gyxtc8s 4 6 8 12 Core Optical Fiber Cable
Fiber Optic G652D
Item | Unit | Specification | |
Fiber Type | G.652D | ||
Mode field diameter |
1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.8 | |
Cladding diameter | μm | 125.0±1 | |
Cladding non-circularity | % | ≤1.0 | |
Core/cladding concentricity error | μm | ≤0.5 | |
Coating diameter | μm | 245±5 | |
Coating non-Circularity | % | ≤6.0 | |
Coating/cladding concentricity error | μm | ≤12.0 | |
Cable cut-off wavelength | nm | ≤1260 | |
Attenuation Coefficient |
1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.22 | |
Proof stress level | kpsi | ≥100 |

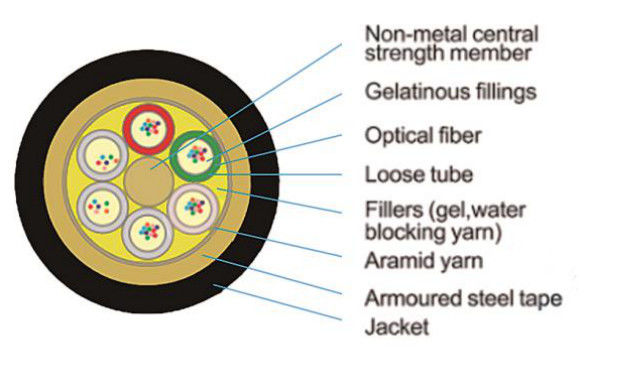

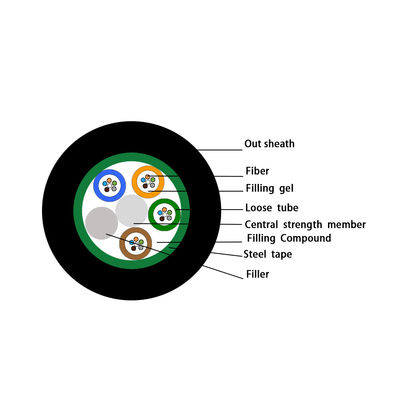

Cable performance:
Item | Parameters | |
Fiber Count | 24 | |
No. of Fiber per tube |
Dimension | 250µm±15µm |
6 fibers |
Color | |
Blue,Orange,Green,Brown,Gray,Natural | ||
Loose tube |
Dimension | 2.2±0.1mm |
Material | PBT | |
4 tubes | Blue,Orange,Green,Brown, | |
Filler |
Material | PE |
Color | Black | |
Central Strength Member |
Dimension | 1.6mm |
Material | Phosphating steel wire | |
Armoured | Material | Plastic coated steel strip/Aluminium |
Outer jacket |
Material | PE |
Color | Black |
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days,It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
