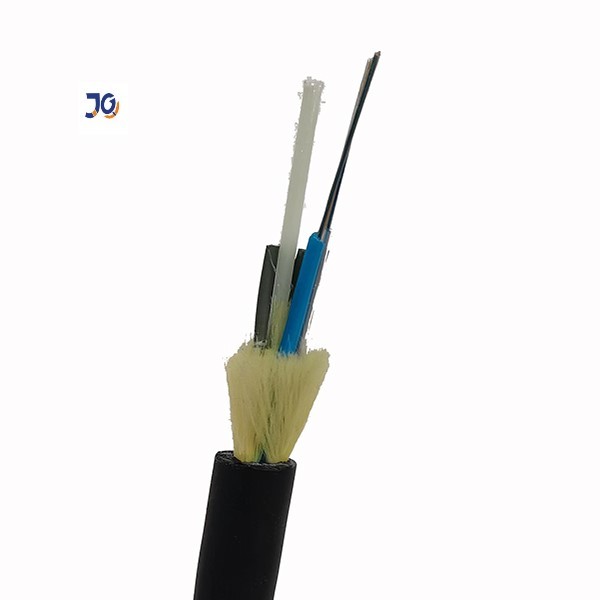

12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic Cable ADSS
What is ADSS Cable?
The All-Dielectric Self Supporting (ADSS) cable is a completely non-metallic structure in which the tensile load bearing elements are integral within the circular design of the cable - usually in the form of aramid yarns or stranded glass reinforced plastic rods. The fibres can be packaged in a variety of ways but are usually placed in polymer tubes which are then protected within the overall cable construction. (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fiber optic network.
advantages of ADSS
● Non-metal strength member ● High Strength kevlar yarn member ● Good mechanical and temperature performance
● High strength loose tube that is hydrolysis resistant ● Special tube filling compound ensure a critical protection of fiber
● PE sheath protects cable from ultraviolet radiation ● Can be installed conveniently and operated simply
·Application
1. Electricity companies, telecommunications companies, railways and private network groups for telecommunications
2. Designed for installation on distribution and transmission lines
3. Can be installed close to conductors
4. Ideal for underbuilt applications that require minimal downtime
5. For telecommunications networks that place a premium on quick, low-cost setup
6. For FTTX applications such as FTTH (Fiber to the Home)
·Standards
ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+5 |
4 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8±0.1 |
80 |
90 |
| 6 |
1+5 |
6 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8±0.1 |
80 |
90 |
| 8 |
1+5 |
4 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8±0.1 |
80 |
90 |
| 12 |
1+5 |
6 |
1.95 |
2.0/2.0 |
1.7±0.1 |
9.8±0.1 |
80 |
90 |
| 24 |
1+5 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
9.8±0.1 |
85 |
95 |
| 48 |
1+5 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
10.0±0.1 |
88 |
98 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
10.5±0.1 |
98 |
108 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
12.0±0.1 |
122 |
135 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
15.2±0.1 |
176 |
189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0±0.1 |
125 |
135 |
| 6 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0±0.1 |
125 |
135 |
| 8 |
1+5 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0±0.1 |
125 |
135 |
| 12 |
1+5 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0±0.1 |
125 |
135 |
| 24 |
1+5 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.0±0.1 |
128 |
138 |
| 48 |
1+5 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.5±0.1 |
130 |
140 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
13.2±0.1 |
145 |
155 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
14.5±0.1 |
185 |
195 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
16.5±0.1 |
212 |
228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type
|
Attenuation
(+20℃)
|
Bandwidth
|
Optical cable cut-off wavelength
|
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
| G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
≤1260nm |
| G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
≤1450nm |
| 50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
--- |
| 62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
---
|

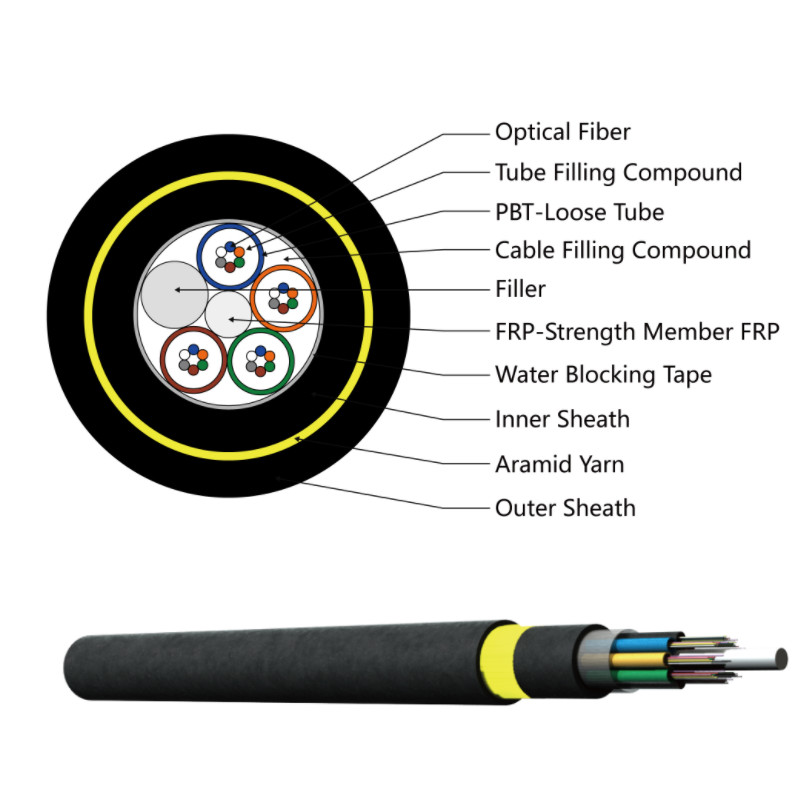

Details picture shows
single jacket ADSS fiber cable
double jacket ADSS fiber optic cable

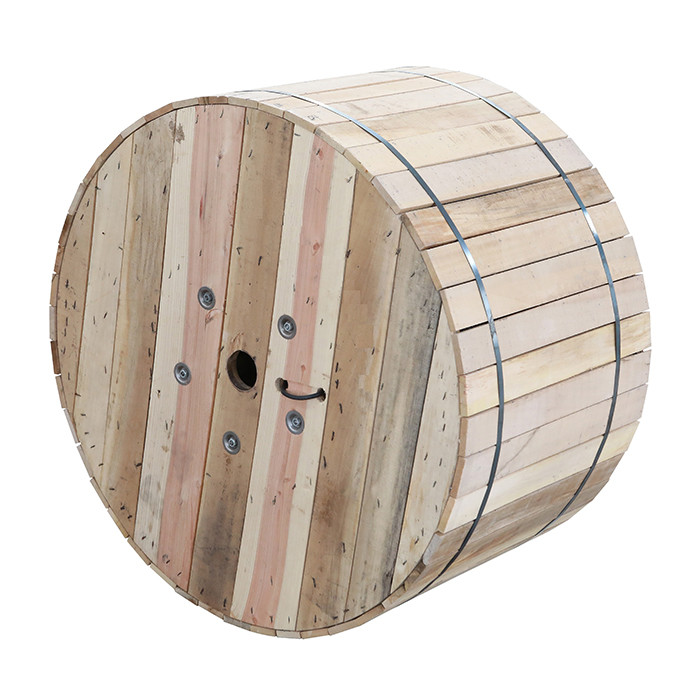

Packing:
