Mini ADSS 6 Core 12 Core Aerial Fiber Optic Cable ASU G652D
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788

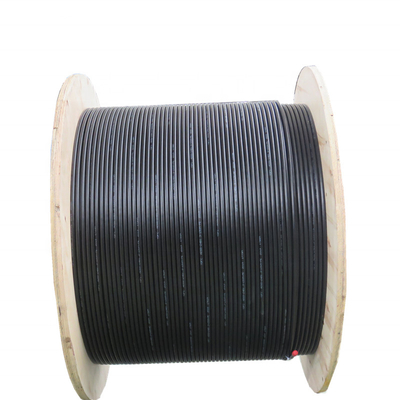

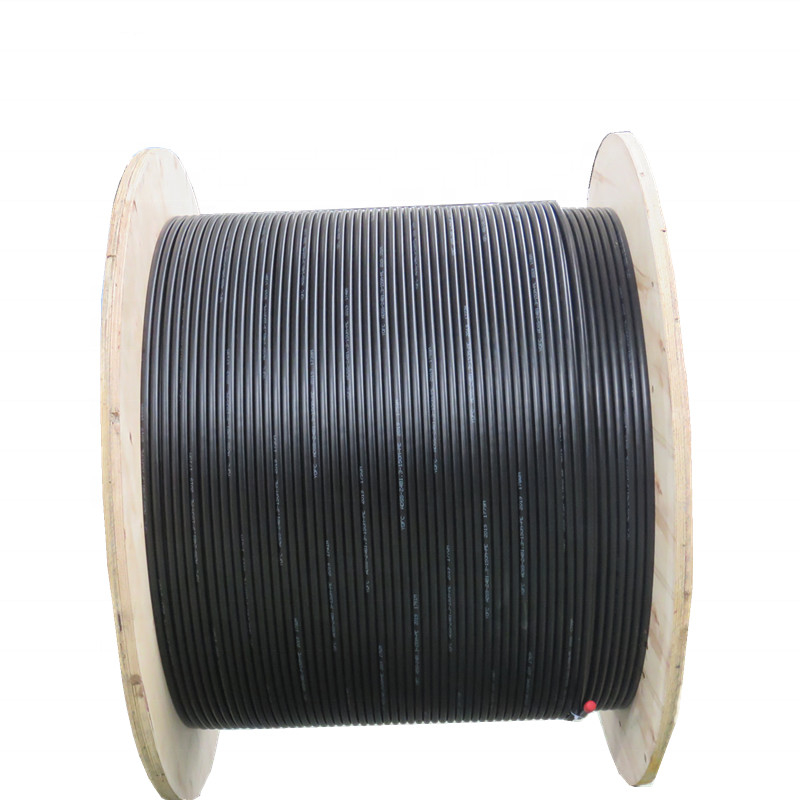

Minimum Order Quantity : | 5km | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 10 work days | Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 900KM Per day |
Place of Origin: | Guangzhou,China | Brand Name: | JQ/Customized |
---|---|---|---|
Certification: | ISO9001, FCC, ROHS/CE | Model Number: | GYTS/GYTA-12/24/48F |
Detail Information |
|||
Fiber Brand: | YOFC/Fiberhome/ Corning | Color: | Black/Customized |
---|---|---|---|
Jacket Metarial: | PE,HDPE/LSZH | Strength Member: | Steel Wire |
Fiber Count: | 2-288 Cores | Installation: | Overhead & Duct |
Service: | OEM | Armored: | Steel Tape |
Product Name: | Outdoor Optic Fiber Cable | Application: | Network/long Distance Communication |
High Light: | Steel Wire Strength Fiber Optic Cable,GYTS Fiber Optic Cable |
Product Description
Product Description
GYTS outdoor fiber optic cable is used for duct and aerial applications. We supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable, fiber strand from 2 cores to 144 cores. A related GYTA type cable is available. GYTS fiber optic cable featuer the good mechanical and temperature performance. Its tube filling compound to ensure a critical fiber protection. PE sheath protects cable from ultraviolet radiation.
Features

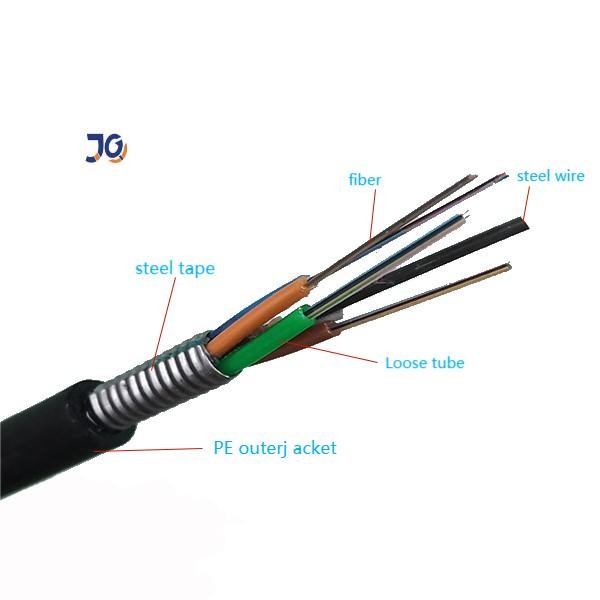

• Steel wire strength.filler protect tube fiber.steel tape armord.
• Good ultra violet radiation resistant property.
• Good moisture-resistance.
Applications:
• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
2-30 | 9.2 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 | ||
38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 | ||
62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 | ||
74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 |

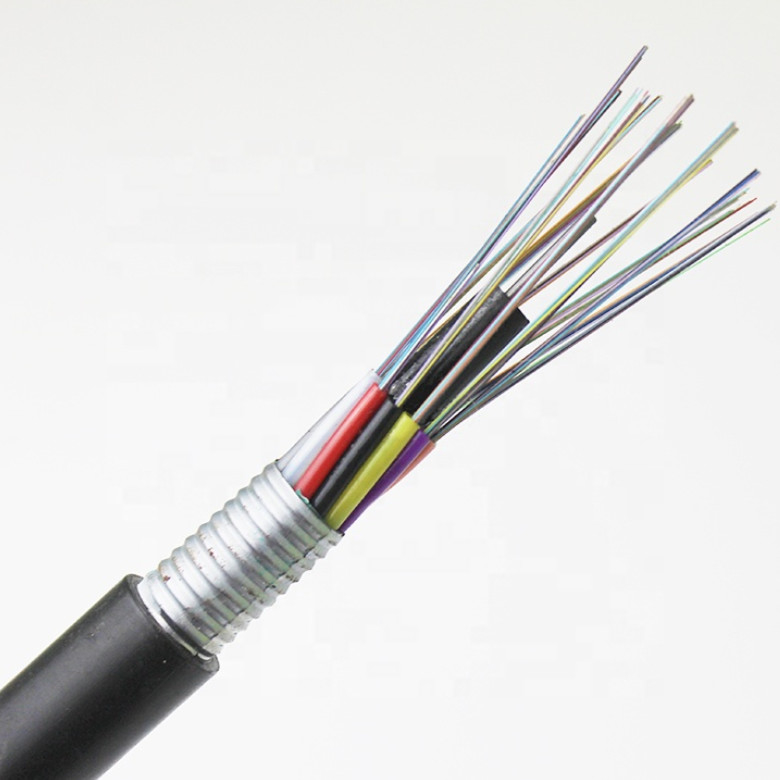

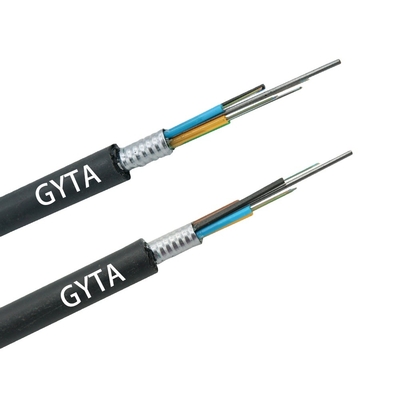

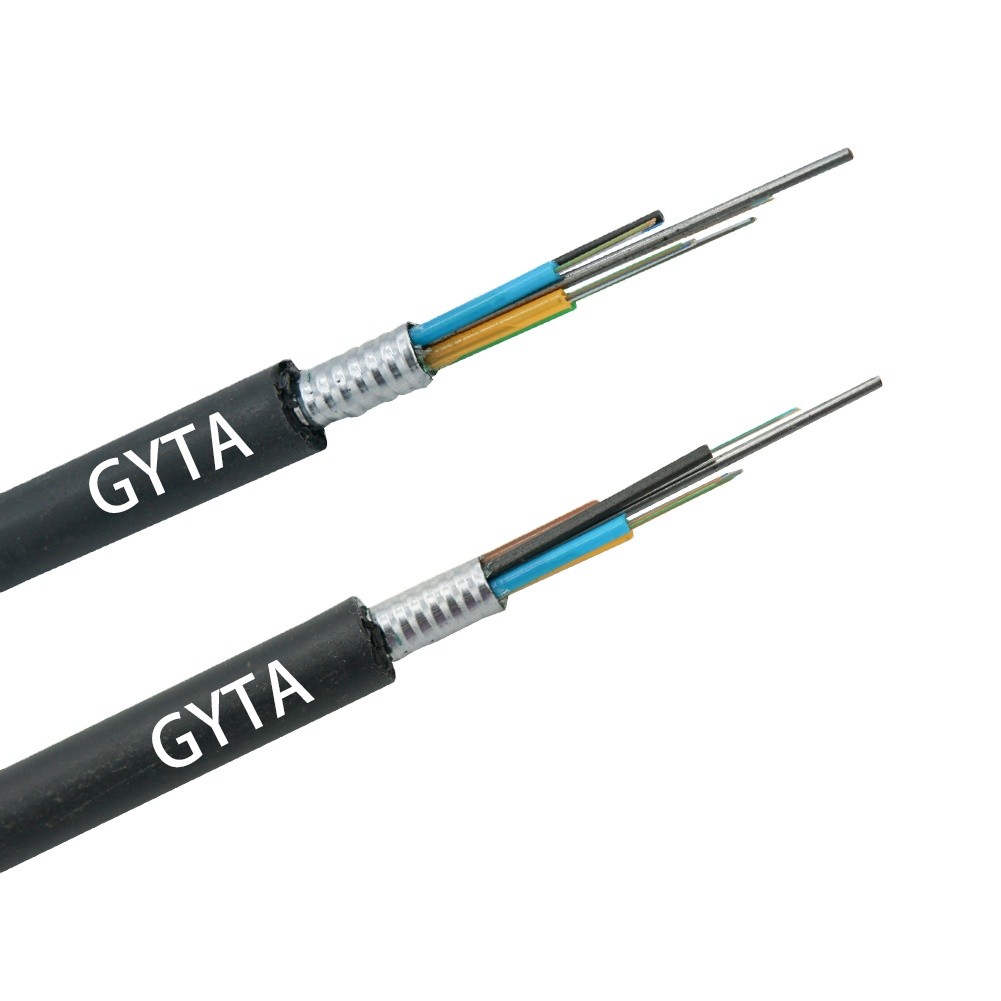

Detail product pictures
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
