GYTS 24core Duct Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788

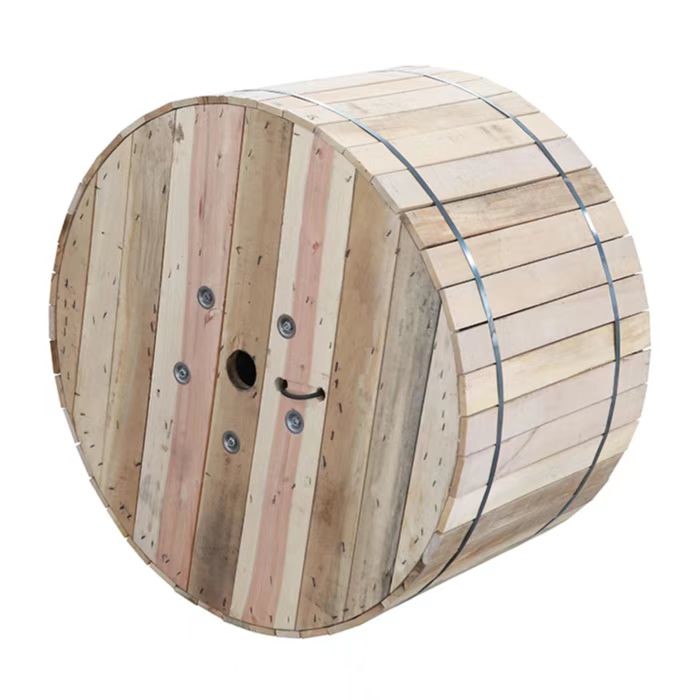

| Minimum Order Quantity : | 10km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 8working days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 800KM Per day |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/Customized |
|---|---|---|---|
| Certification: | ISO9001, FCC, ROHS/CE | Model Number: | GYTS/GYTA-12/24/48/96/144/288c |
|
Detail Information |
|||
| Fiber Brand: | YOFC/FiberHome/ Corning | Color: | Black/red Or Customized |
|---|---|---|---|
| Jacket Metarial: | PE,HDPE/LSZH | Strength Member: | Steel Wire |
| Fiber Count: | 2-576 Cores | Installation: | Overhead & Duct |
| Sample: | Acceptable | Armored: | Steel Tape |
| Product Name: | Outdoor Optic Fiber Cable | Application: | Telecom/network, Telecommunication |
| Package: | 1km/2km/3km/5km Per Roll | ||
| High Light: | Anti Rodent Fiber Optic Cable,Outdoor Direct Buried Fiber Optic Cable |
||
Product Description
Product Description

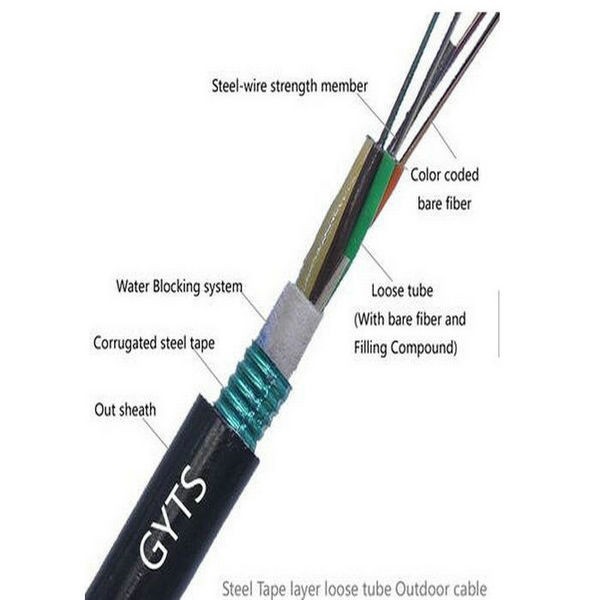

GYTS optical cable is a metal reinforcing member, a loose jacket twist-filled type, and a steel-polyethylene sheathed communication outdoor Fiber Optic Cable.
This optic fiber outdoor cable is used for core network, meropolitan network,and access network.
Features
Central loose tube with jelly compound inside to protect the cladding fiber.
Corrugated steel tape laminated with plastic at both sides bonding to PE sheath.
Good mechanical and temperature resistant performance..
Crush resistance and flexibility.
Light weight and small diameter, easy to installation and operation.
Applications:
Long distance and local area network(LAN) communication.
Aerial & conduit/duct application.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.2 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||

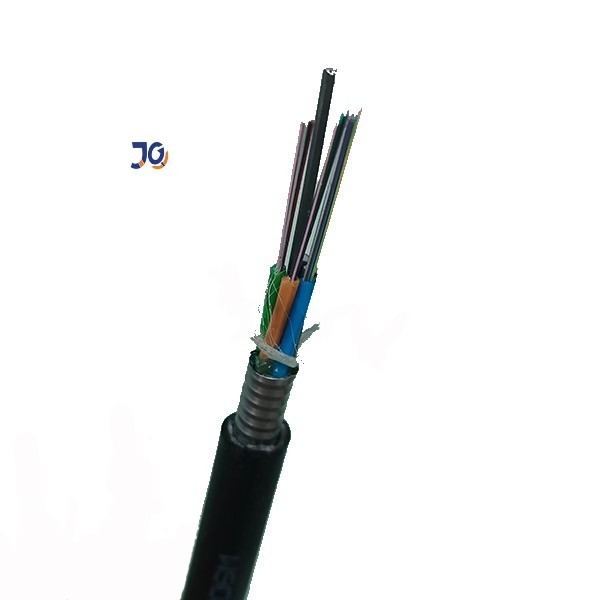

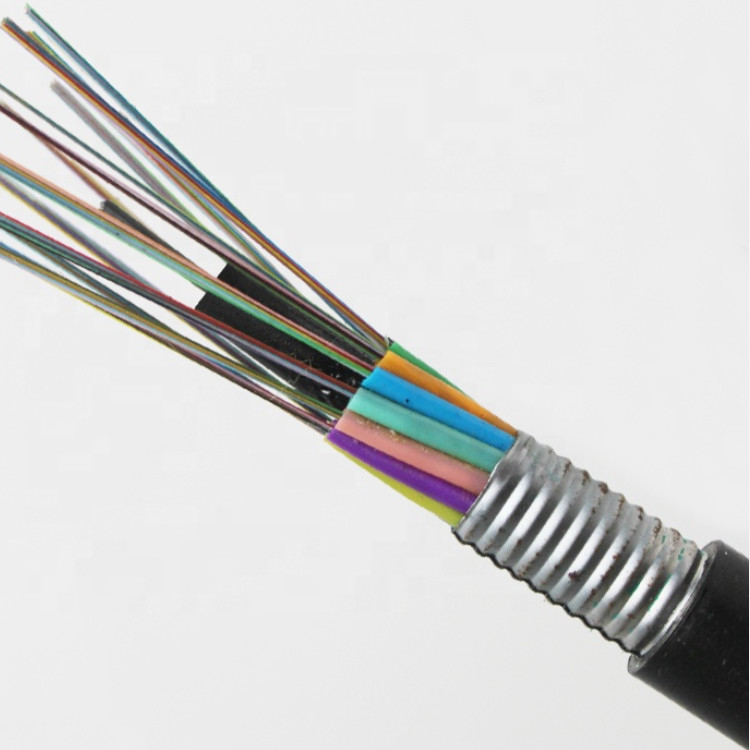

Detail product pictures
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
