GYTS 24core Duct Fiber Optic Cable
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 10km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 8 working days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1000KM Per day |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/Customized |
|---|---|---|---|
| Certification: | ISO9001, FCC, ROHS/CE | Model Number: | GYTS/GYTA-12/24/48/96/144/288c |
|
Detail Information |
|||
| Fiber Brand: | YOFC/FiberHome/ Corning | Color: | Black/red Or Customized |
|---|---|---|---|
| Jacket Metarial: | PE,HDPE/LSZH | Strength Member: | Steel Wire |
| Fiber Count: | 4-288 Cores | Installation: | Overhead & Duct |
| OEM: | Acceptable | Armored: | Steel Tape |
| Product Name: | GYTS/GYTA | Application: | Telecom/network, Telecommunication |
| Package: | 1km/2km/3km/5km Per Roll | ||
| High Light: | Armored GYTS Outdoor Optical Cable,48 Core Overhead Outdoor Optical Cable |
||
Product Description
Product Description

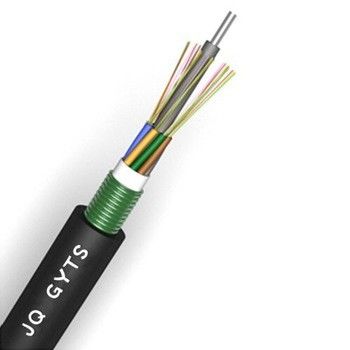

GYTS optical cable is a metal reinforcing member, a loose jacket twist-filled type, and a steel-polyethylene sheathed communication outdoor Fiber Optic Cable.
This optic fiber outdoor cable is used for core network, meropolitan network,and access network.
Features

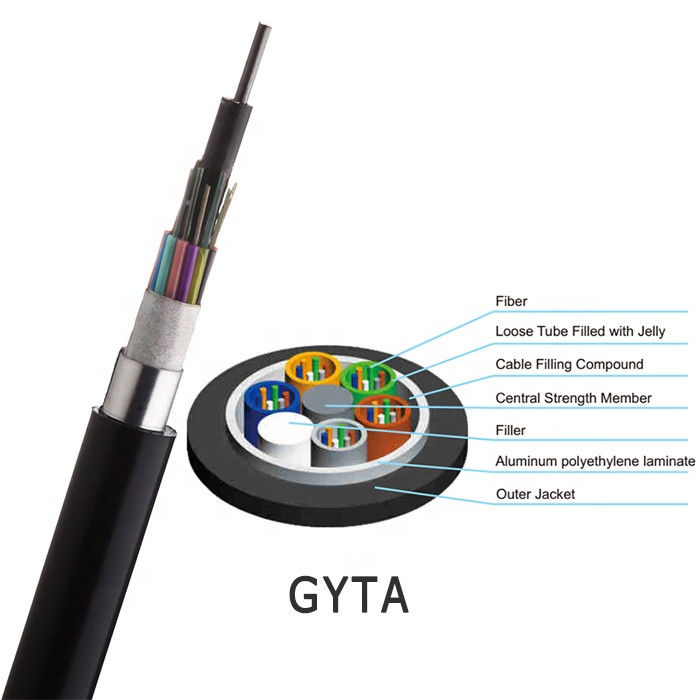

The fibers, 250μm, are placed in a loose tube made of a high modulus material. The tube is filled with a waterproof compound. At the center of the cable is a metal reinforcing core. For some cables, the metal reinforcing core may be coated with polyethylene (PE). The loose sleeve (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core. The gaps in the cable core are filled with water-blocking filler. Double - sided coated plastic steel tape (PSP) is longitudinally wrapped and extruded with polyethylene sheath to form the cable.
Applications:
Long distance and local area network(LAN) communication.
Aerial & conduit/duct application.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.2 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||

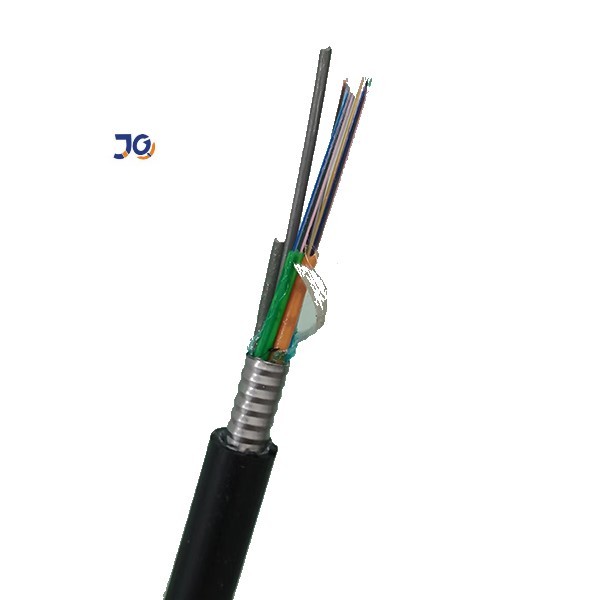

Detail product pictures
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
