Mini ADSS 6 Core 12 Core Aerial Fiber Optic Cable ASU G652D
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 4km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 6 days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 200KM Per day |
| Place of Origin: | Guangdong China | Brand Name: | JQ |
|---|---|---|---|
| Certification: | ISO9001, FCC, ROHS/CCC | Model Number: | GYFTY-12/24/48/96/144F |
|
Detail Information |
|||
| Fiber Brand: | YOFC/Fiberhome/ Corning | Color: | Black Or Blue |
|---|---|---|---|
| Jacket Metarial: | PE,HDPE/LSZH/AT | Strength Member: | FRP |
| Fiber Count: | 4-288 Cores | Installation: | Aerial & Duct |
| Sample: | Acceptable | Product Name: | GYFTY Outdoor Fiber Cable |
| Application: | Aerial, FTTH, Overhead/Aerial, Telecom/network, Telecommunication | ||
| High Light: | Single Mode G652D Fiber Optic Cable,Outdoor 24 Core Fiber Optic Cable |
||
Product Description
GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct use. We supply both single mode GYFTY cable and multimode GYFTY cables.
Features
● Precise control of the excess length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics
● PBT loose tube material has good hydrolysis resistance, and the tube is filled with special grease to protect the optical fiber
● Optical cable has excellent flexibility and bending resistance
● Optical cables are all non-metallic structures, light in weight, easy to lay, and excellent in electromagnetic resistance
● Smooth outer sheath enables the optical cable to have a smaller coefficient of friction during installation
● PE sheath has good resistance to solar radiation
Applications:
• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 8.8 | 88 |
10
|
20
|
1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 | ||
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 | ||
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 | ||
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 | ||
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 | ||
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 | ||
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 | ||
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 | ||
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 | ||
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788

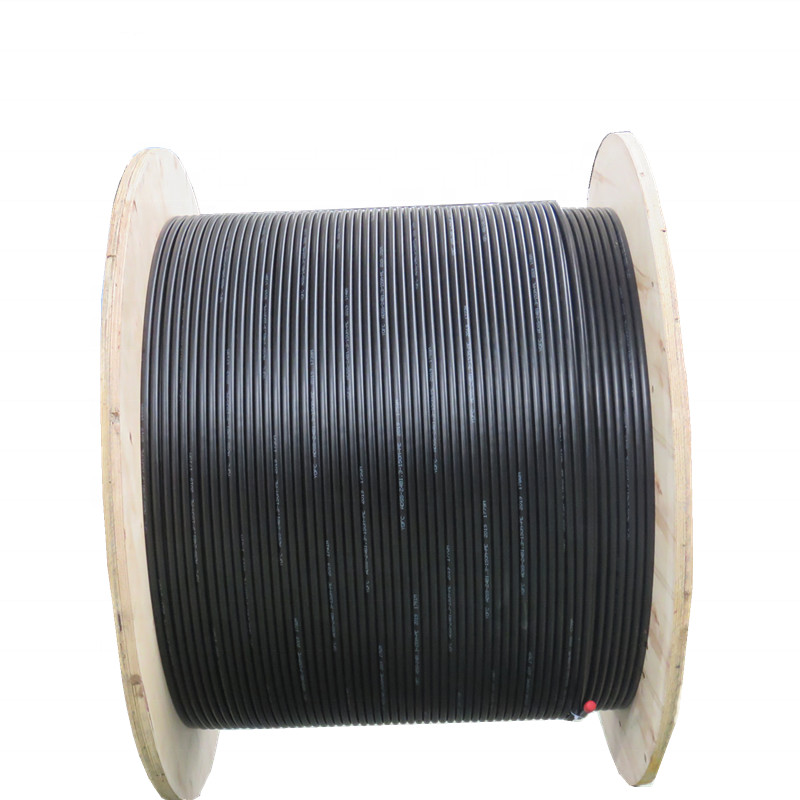

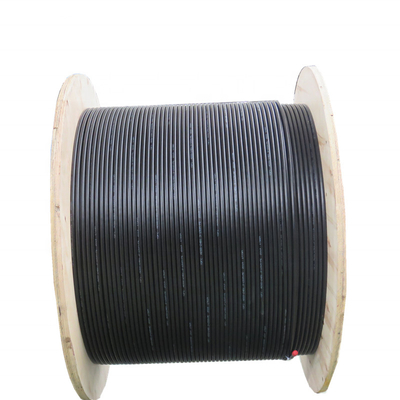

Detail product pictures

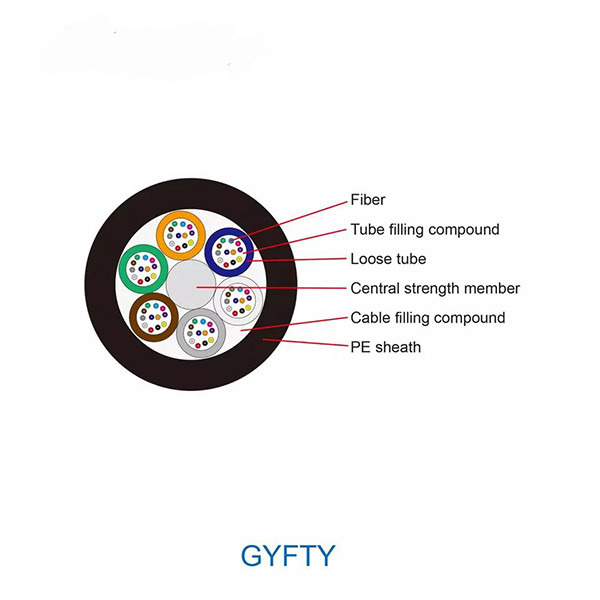

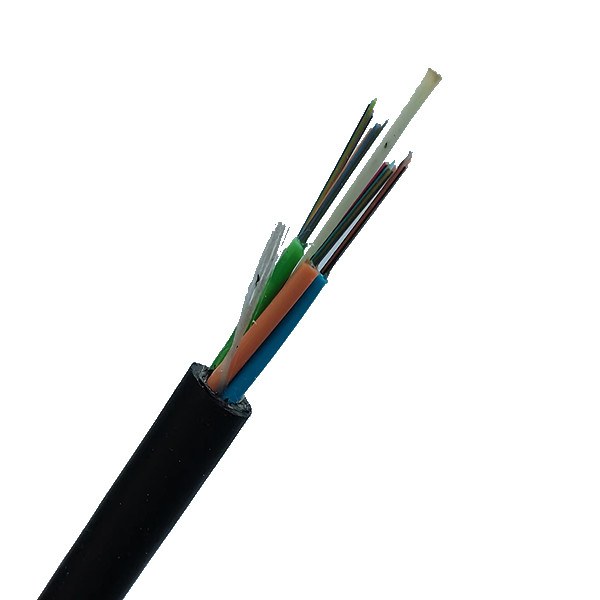

Picture shows about the GYFTY-48 C
FAQ
Q1: How the warranty for products ?
A: 10 years,and maintance for whole life
Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
