GYTS 24core Duct Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 10 km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 8 days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 300KM Per day |
| Place of Origin: | China | Brand Name: | JQ/ Customized |
|---|---|---|---|
| Certification: | ISO9001, FCC, ROHS/CCC | Model Number: | GYFTY-24F |
|
Detail Information |
|||
| Fiber Brand: | YOFC/Fiberhome/ Corning | Color: | Black Or Orange Or Customized |
|---|---|---|---|
| Jacket Metarial: | PE,HDPE/LSZH | Strength Member: | FRP(with PE If Needed) |
| Fiber Count: | 4-288cores | Installation: | Overhead & Duct |
| Drum Length: | 5KM Or Customized | Product Name: | GYFTY Outdoor Fiber Cable |
| Application: | Network/long Distance Communication | ||
| High Light: | Outdoor SM Fiber Cables,G652D FSM Fiber Cables,Fiber Optic Cable GYFTY |
||
Product Description
Product Description
GYFTY Fiber Optic Cable is a type of fiber cable which is widely used in areas with excessive thunder, power transmission system, and high electromagnetic interface. It is referred as a self-support fiber cable that doesn’t require any external support due to its central metallic part. That outstanding feature has rapidly enhanced its market demand. As at now, GYFTY Fiber Optic Cable is one of the most suitable fiber optic cables to be used in areas of high-voltage power.
Features
Fiber Type
OS2 9/125 G652D /OM1 62.5/125μm Multimode – OM2 50/125μm Multimode – 10G OM3 50/125μm Multimode – 10G OM4 50/125μm Multimode (Other Fiber available Too)
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 8.8 | 88 |
10
|
20
|
1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 | ||
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 | ||
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 | ||
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 | ||
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 | ||
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 | ||
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 | ||
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 | ||
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 | ||
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788

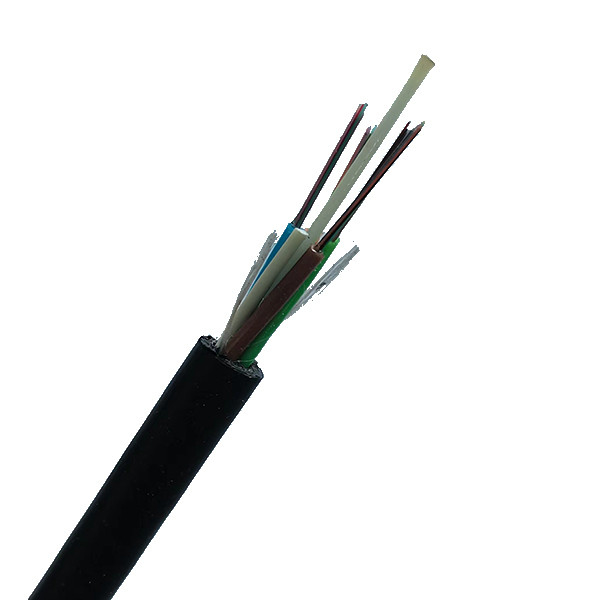

Detail product pictures

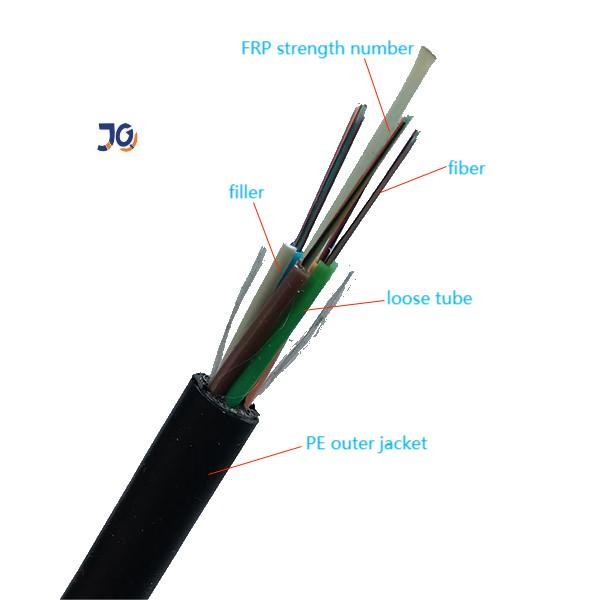

Picture shows about the GYFTY-48 C
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
