GYTS 24core Duct Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788

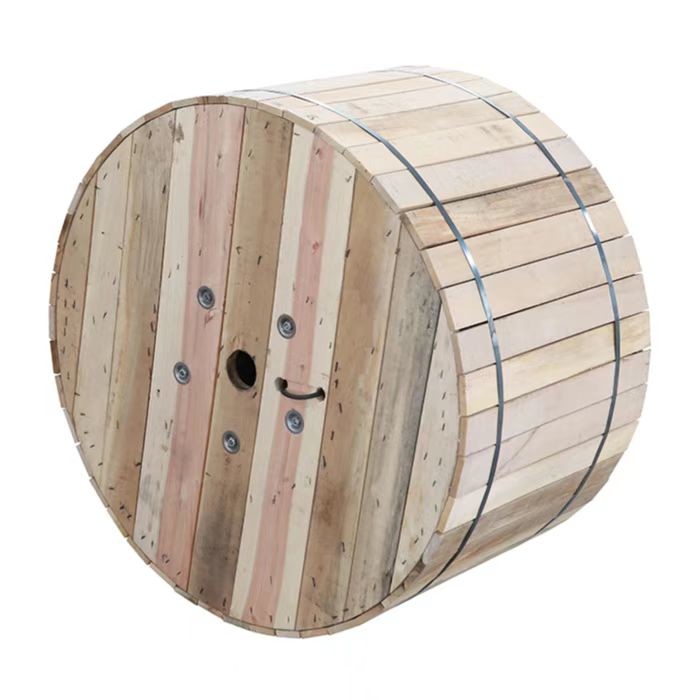

| Minimum Order Quantity : | 5 km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 7 days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 300KM Per day |
| Place of Origin: | China | Brand Name: | JQ/ Customized |
|---|---|---|---|
| Certification: | ISO9001, FCC, ROHS/CCC | Model Number: | GYFTY-48/96/144F |
|
Detail Information |
|||
| Fiber Brand: | YOFC/Fiberhome/ Corning | Color: | Black Or Customized |
|---|---|---|---|
| Jacket Metarial: | PE,HDPE/LSZH/AT | Strength Member: | FRP(with PE If Needed) |
| Fiber Count: | 4-432cores | Installation: | Overhead & Duct |
| Drum Length: | 5KM Or Customized | Product Name: | GYFTY Outdoor Fiber Cable |
| Application: | Network/long Distance Communication | ||
| High Light: | Anti Rodent Fiber Optic Cable,144 Cores Fiber Optic Cable |
||
Product Description
Product Description
GYFTY Fiber Optic Cable is a type of fiber cable which is widely used in areas with excessive thunder, power transmission system, and high electromagnetic interface. It is referred as a self-support fiber cable that doesn’t require any external support due to its central metallic part. That outstanding feature has rapidly enhanced its market demand. As at now, GYFTY Fiber Optic Cable is one of the most suitable fiber optic cables to be used in areas of high-voltage power.
Features
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
With good anti-electromagnetism ability
With small cable diameter, light cable weight, easily to lay
Application
1. GYFTY is used in the environment with strong electromagnetic interference and the area where frequent thunder happens.
2. GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface.
3. Its mainly application is for aerial or duct use. Additionally, there are two most common types of GYFTY Fiber Optic Cable which are widely used.
4. Consequently, there are other applications of GYFTY Fiber Optic Cable which includes; laying modes: Aerial & Conduit and Access network, local trunk line.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 8.8 | 88 |
10
|
20
|
1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 | ||
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 | ||
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 | ||
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 | ||
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 | ||
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 | ||
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 | ||
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 | ||
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 | ||
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788
Detail product pictures

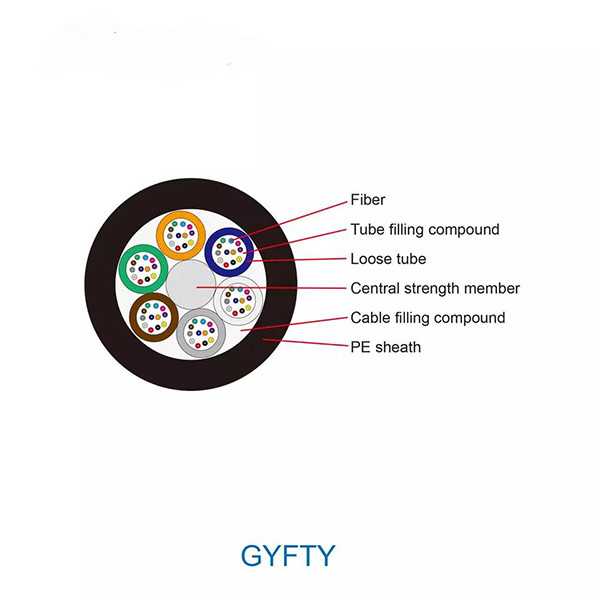

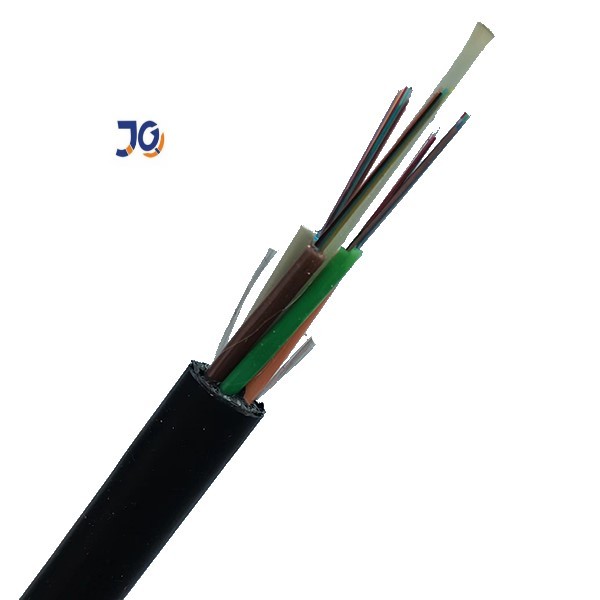

Picture shows about the GYFTY-48 C
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
