Fiber Optic G652D 24 48 96 Core Optical Cable GYFTY Underground Pipe Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : Plywood drum
Delivery Time : Normally 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 6000km per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO9001 ROHS CE FCC Model Number: GYFTY-24B1

Detail Information

Place Of Origin: Guangzhou China Brand Name: Jiqian
Number Of Conductors: ≥ 10 Sheath: HDPE
Laying Mode: Duct/Aerial Storage/operating Temperature:: -40 To +70 °C
OEM: Yes Manufacturer: Yes
Number Of Fibers: 4-288 Cores
High Light:

G652D 96 Core Optical Cable

,

G652D 24 Core Optical Cable

,

GYFTY Underground Pipe Fiber Optic Cable

Product Description

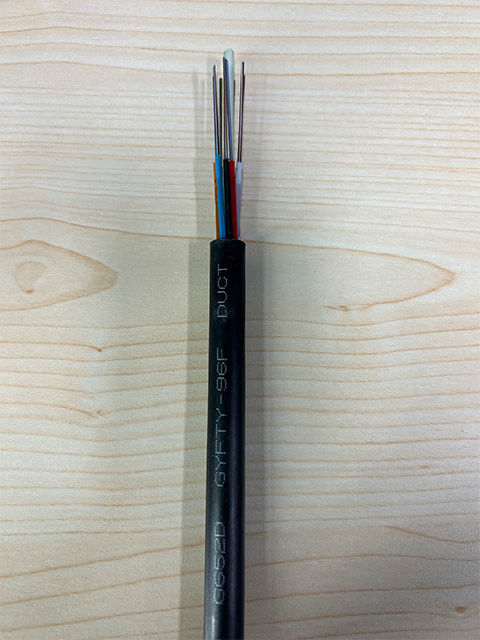

Fiber Optic G652D 24 48 96 Core Optical Cable GYFTY Underground Pipe Fiber Optic Cable

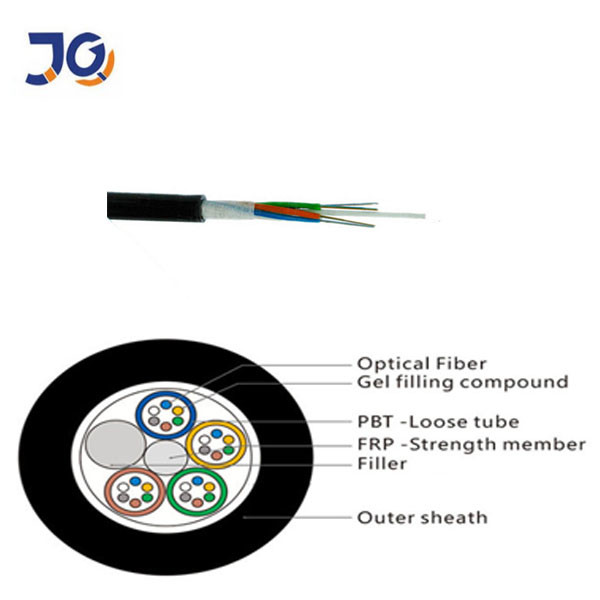

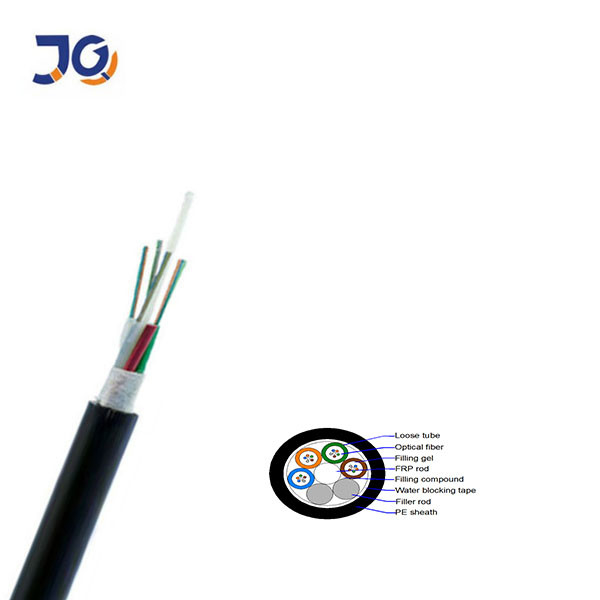

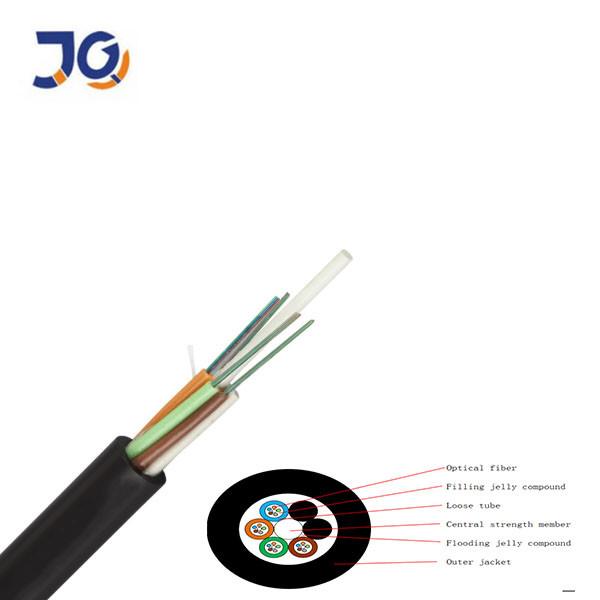

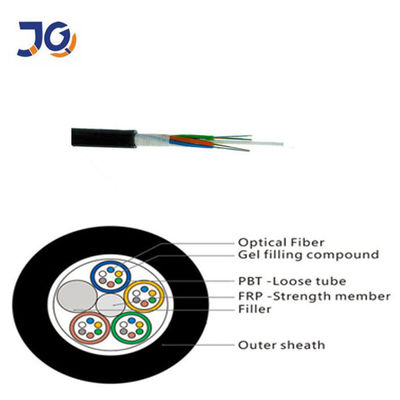

The fibers 250 um are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes and fillers are stranded around the strength member into a compact and circular core. After the cable

core is filled with the filling compound to protect it from water ingress. the cable is completed with a PE sheath.



Fiber Optic G652D 24 48 96 Core Optical Cable GYFTY Underground Pipe Fiber Optic Cable 0
Fiber Optic G652D 24 48 96 Core Optical Cable GYFTY Underground Pipe Fiber Optic Cable 1

Cable Performance



Item



Contents

Value
4-12 24-48 72 96
Structure Type 1+6 1+6 1+8 1+12



Loose tube

Max Fiber counts/tube 6 12 12 12
Outer diameter (mm) 1.9±0.1 2.2±0.1 2.2±0.1 2.2±0.1



Central strength member

Material FRP
Diameter (mm) 1.4 1.5 2.0 1.6/
PE layer diameter (mm) -- --   3.2
Peripheral strength member Material FRP



Sheath

Material HDPE
Color Black
Thickness (mm) Nominal: 1.6
Cable diameter(mm) Approx. 8.8±0.2 9.2±0.2 9.5±0.3 11.0±0.3
Cable weight(kg/km) Approx. 60 65 75 103


Fiber parameter

Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100


Company profile:
1.Located in Guangzhou China

2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world


Fiber Optic G652D 24 48 96 Core Optical Cable GYFTY Underground Pipe Fiber Optic Cable 2
Fiber Optic G652D 24 48 96 Core Optical Cable GYFTY Underground Pipe Fiber Optic Cable 3
Exhibition
Fiber Optic G652D 24 48 96 Core Optical Cable GYFTY Underground Pipe Fiber Optic Cable 4



Certification:



Fiber Optic G652D 24 48 96 Core Optical Cable GYFTY Underground Pipe Fiber Optic Cable 5Fiber Optic G652D 24 48 96 Core Optical Cable GYFTY Underground Pipe Fiber Optic Cable 6Fiber Optic G652D 24 48 96 Core Optical Cable GYFTY Underground Pipe Fiber Optic Cable 7

FAQ:

1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for freight

3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is from small order.

4.What is your warranty period?
25-30years life expectancy

5.Which kind of certification you have ?
ISO9001/FCC/ROHS/CE

6.What is your delivery time?
Usually within 5-7 working days,it depens on order quantity

7.What is your fiber brand?
YOFC ,Fiberhome

8.What is your payment way?
T/T,Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
