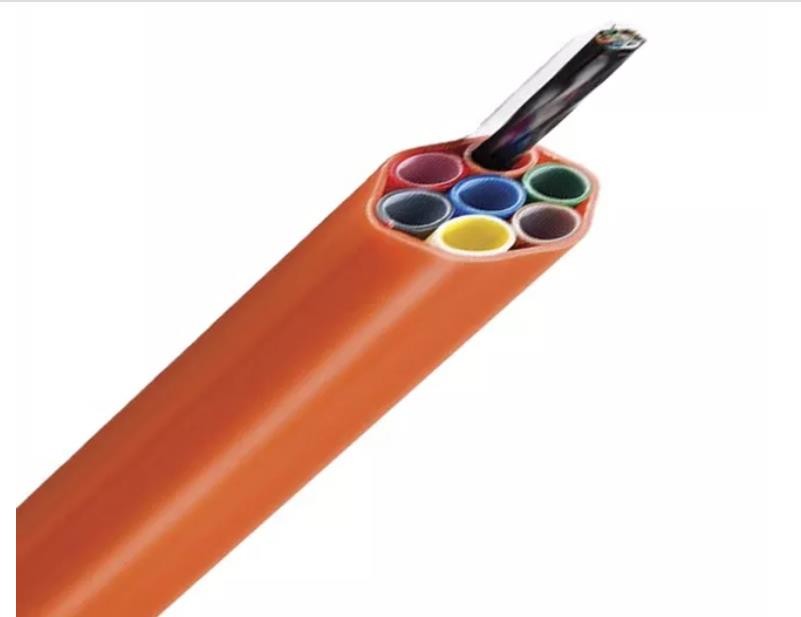

HDPE Micro Duct Air Blown Fiber Optic Cable GCYFTY 24 48 72 144 Core

Product Description

HDPE Micro Duct Air Blown Fiber Optic Cable GCYFTY 24 48 72 144 Core

Fiber Optic G652D

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤ 0.22
Proof stress level		kpsi	≥100

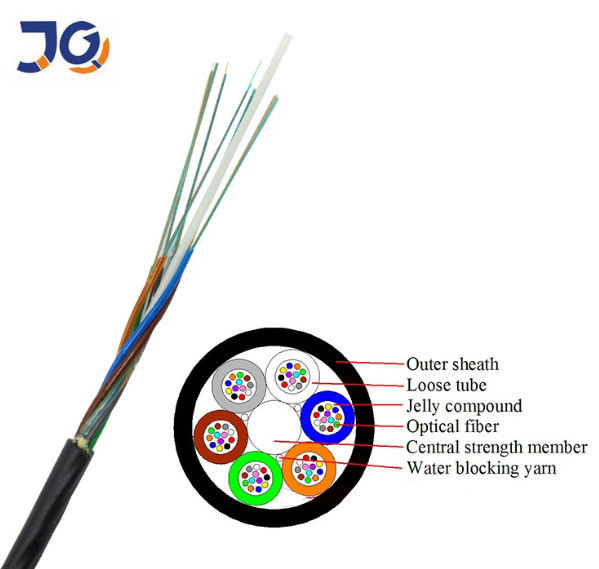

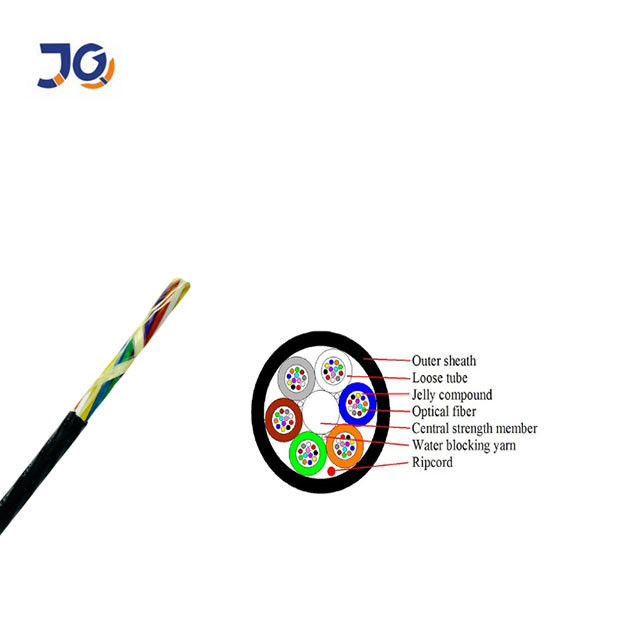

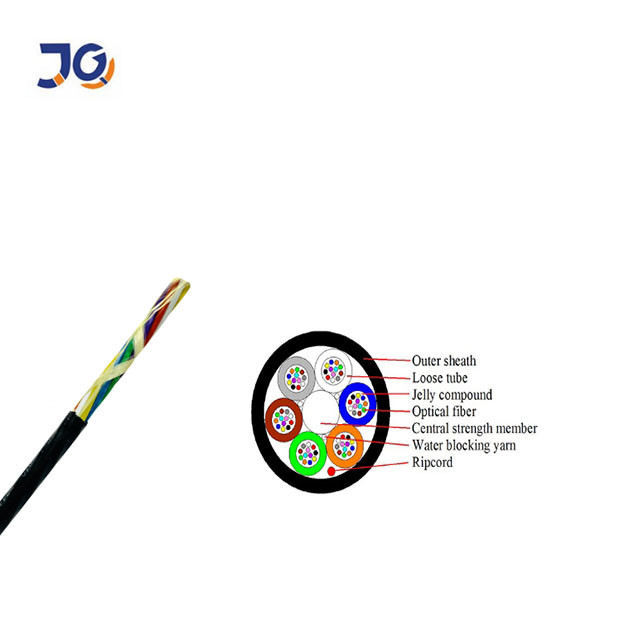

Cable Structural Parameters:

Cores	Cores/tube	FRP diameter (mm)	Sheath thickness (mm)	Approx. overall diameter (mm)	Approx.     weight       (kg/km)
12	6	1.5	0.5±0.1	5.6	24
24	6	1.5	0.5±0.1	5.6	24
48	12	1.5	0.5±0.1	5.6	24
96	12	1.5	0.5±0.1	5.6	24
144	12	2.5	0.5±0.1	6.6	38



Certification:





Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa

Exhibition:

FAQ:


1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc


4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?
A:Yes. We supply OEM service.


7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment
