Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter
Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter
Contact Now

Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter

Minimum Order Quantity : 1KM Price : 60-200USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: JET

Detail Information
Fiber Count: 2-24Core Strength Member: Aramid Yarn,strong Tensile Yarn
Warranty: 25 Years MOQ: 1KM
OEM: Yes Amoured: Yes
Length: 1/2/3/4/5KM
High Light:

12f JET Fiber Optic Cable

,

G652D Fiber Optic Cable

Product Description

Product Description

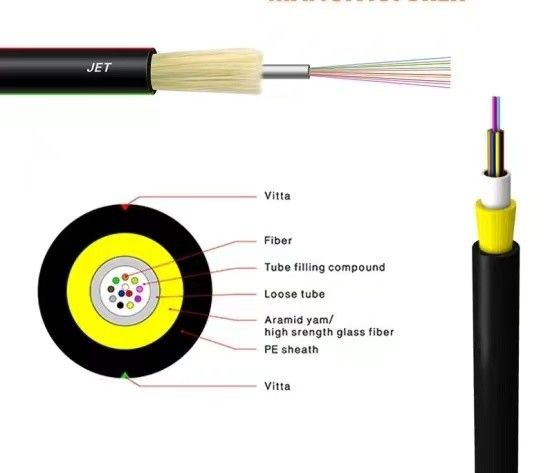

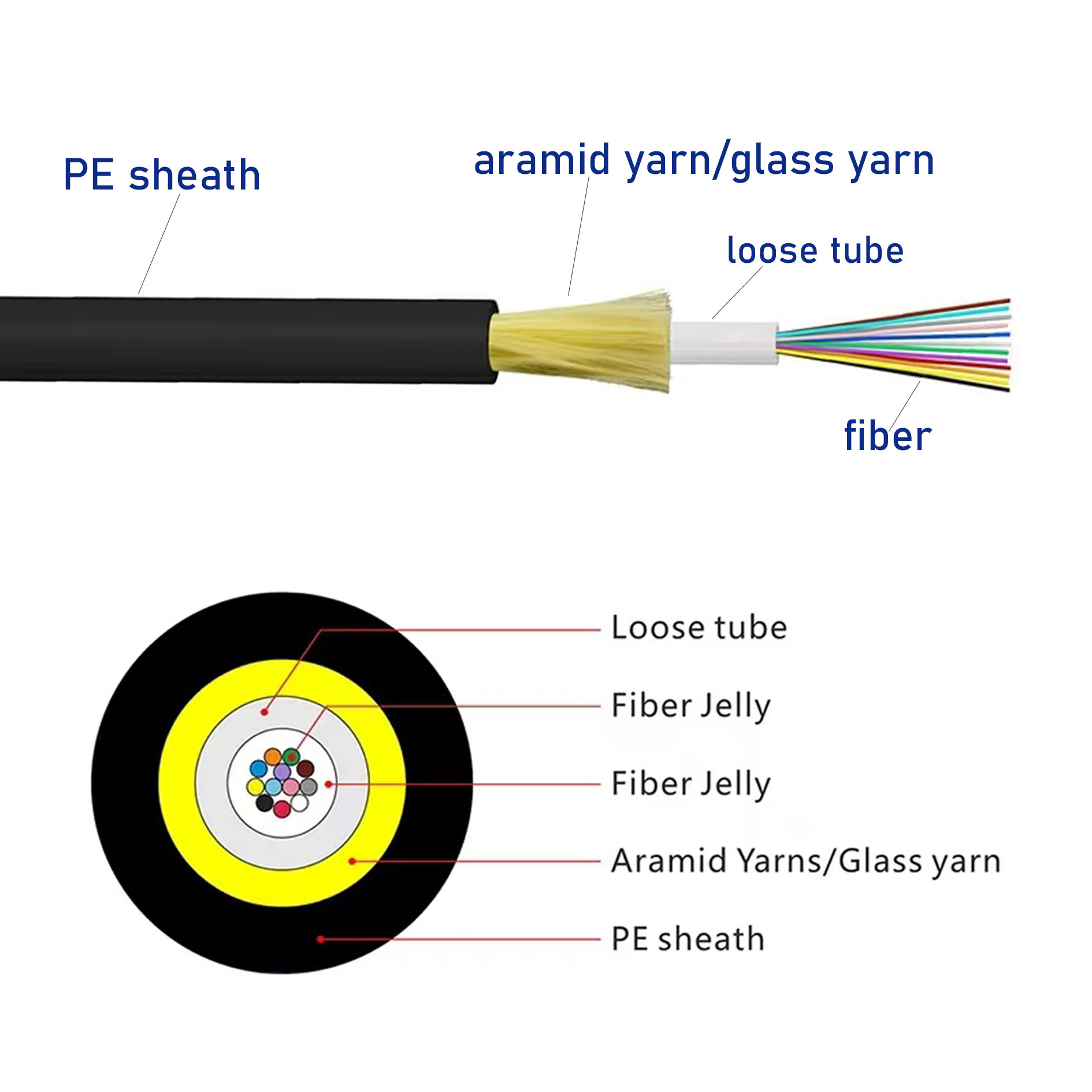

JET structure is used widely for outdoor/indoor occasion, and glass fiber yarn (or aramid yarn, high-strength yarn) is added to the beam tube equipped with optical fiber and then the sheath is squeezed. JET cable is relatively soft, with a certain tension, indoor and outdoor universal. Overhead and duct installation are more convenient



Application

1. aerial,overhead installation
2.duct,piping installation

Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter 0
Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter 1

Cable Specification:
Item Name:JET fiber cable
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-24
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 25 years
Application:Aerial or duct,Local network,Local network,Long distance network communication.

characteristic:
small diameter
simple structure
Easy to bend for duct installation
Cost-effective
outdoor/indoor use
stable anti-interference
faster and stable transmission

Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter 2
Specification
Product Name
High quality bulk mini indoor and outdoor aerial duct G652D 2f 4f 6f 8f 12f JET fiber optic cable
Fiber Count
1-24 Fibers,can be customized according to customers' requirement
Construction
Center beam tube type
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
overhead,aerial,duct
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
aramid yarn or glass yarn
Color
usually black,can be customized
Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter 3
Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100
Related Products
Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter 4
Packing & Delivery
Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter 5
Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter 6
Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter 7
Bulk Mini Indoor And Outdoor Aerial Duct G652D 2f 4f 6f 8f 12f JET Fiber Optic Cable Per Meter 8
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
