4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable

Contact Now

4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ
Certification:	CE/ISO9001	Model Number:	GYXTW

Detail Information
Model Number:	GYXTW	Type:	Central Loose Tube
Place Of Origin:	Guangdong, China	Number Of Conductors:	≥ 10
Fiber Type:	G652D Single Mode Or As Your Request	Length:	As Required
Color:	Customized	Loose Tube Material:	PBT
Outer Sheath:	PE Or As Your Request	Package:	Wooden Drum/Customized
Application:	Overhead, Duct	Oem:	Available
Highlight:	outdoor optical fiber cable , Steel Tape Armored optical fiber cable

Product Description

Product Description:

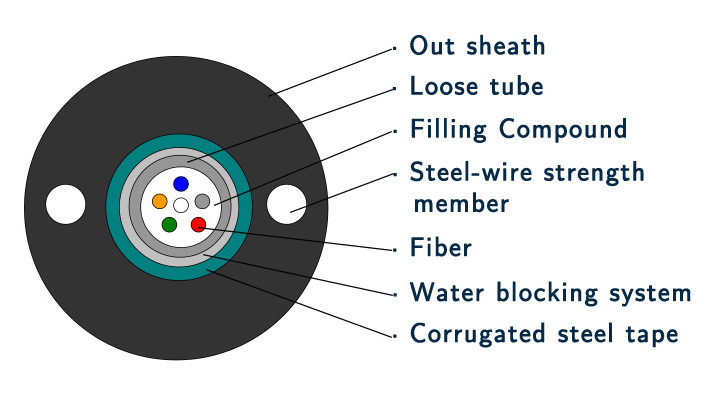

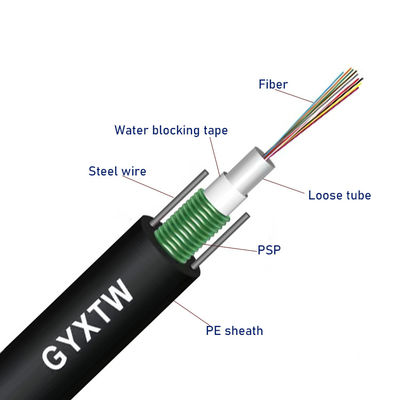

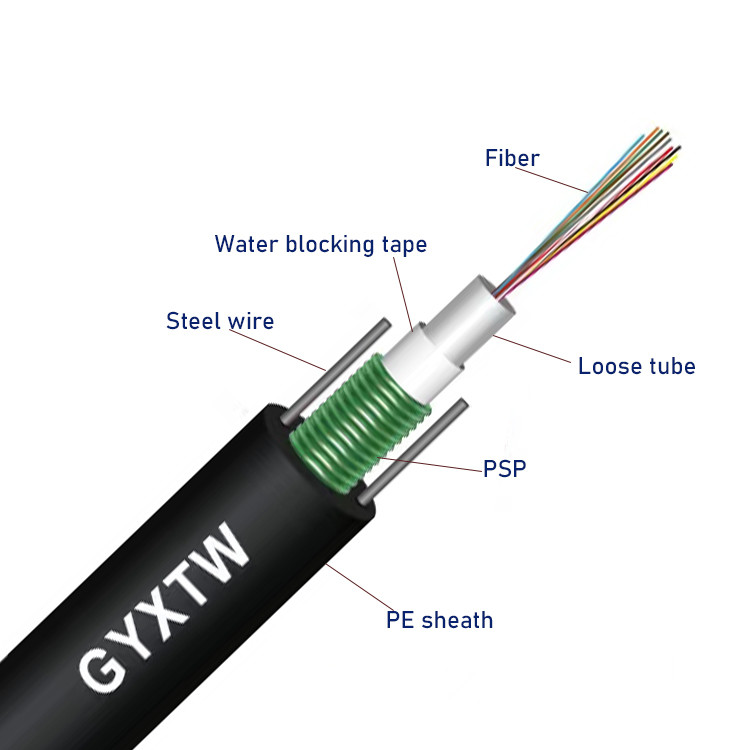

● The central loose tube protects the primary coated optical fiber

● The optical fiber is concentrated in the center of the cable, and the strength members are distributed on both sides of the cable sheath
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable 0

Characteristics:
■ Small diameter, light weight, flexible structure.

■ Metal reinforcement, oil paste filling, steel tape armouring, loose nesting layer.

■ Single tube gel filled structure provides excellent fiber protection.

■ Two parallel steel wires ensure tensile strength.

■ Excellent mechanical and high temperature resistance.

■ Excellent water and moisture resistance.

■ Excellent resistance to ultraviolet radiation

■ Suitable for various construction environments, and has good environmental performance.

Specification:

No. of cable		GYXTW-12B1.3
Fiber Model		G.652D
Strength Member	Material	Steel wires
Strength Member	Diameter(±0.05)mm	1MM
Loose Tube	Material	PBT
	Diameter(±0.06)mm	1.85
	Thickness(±0.03)mm	0.35
	The Max.Core NO./Tube	12 or 24
Outer Sheath	Material	PE
Cable Diameter(±0.2)mm		8MM
Cable Weight(±5)kg/km		78
Min. bending radius	Without Tension	10.0×Cable-φ
Min. bending radius	Under Maximum Tension	20.0×Cable-φ
Temperature range	Installation	-20~+60
(℃)	Transport&Storage	-40~+70
	Operation	-40~+70

WHY CHOOSE US:

Certification:

4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable 2

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.

We Support OEM and Customize products.

Welcome to your inquiry! Welcome to visit our facotry!

Contact me at WhatsAapp +86 19120308386 to get free sample.
