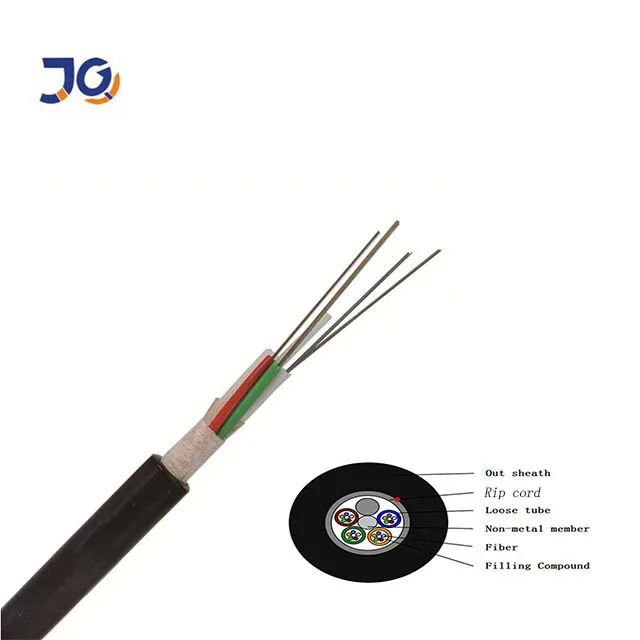

Armored Black LSZH Aerial Single Mode PBT Loose Tube Fiber Optic Cable For Data Transmission

Product Description:

The Aerial FO Cable is available in different span lengths, including 100m, 200m, 300m, 400m, or can be customized according to the customer's specific requirements. This makes it a versatile option for installations in various settings such as long-distance communication networks, military and defense, and other industrial applications.

The FRP (Fiber Reinforced Polymer) is a critical component of the Aerial Fiber Optic Cable, which enhances its strength and durability. The FRP is available in different thicknesses, including 0.7mm, 0.8mm, 1.0mm, and 2.2mm, providing the desired level of protection against harsh weather conditions and other environmental factors.

The Aerial FO Cable is also fitted with an armored layer that adds an extra layer of protection against physical damage. This feature makes it suitable for use in harsh environments such as high wind and snow loads, where the cable may be subjected to pressure from tree branches and other objects.

The tight buffer design of the cable ensures that the fiber is well protected against mechanical stress. The buffer is 0.9mm in diameter, which ensures that the fiber is well protected against any bending or twisting forces that may be exerted on the cable during installation or maintenance.

The Outsheath of the Aerial Fiber Optic Cable is available in different materials such as PE (Polyethylene), LSZH (Low Smoke Zero Halogen), and OFNP (Optical Fiber Nonconductive Plenum). The choice of sheath material depends on the specific application requirements. For instance, the LSZH sheath is ideal for use in buildings where toxic fumes from burning plastics could be harmful to occupants in the event of a fire.

In summary, the Aerial Fiber Optic Cable is an ideal solution for outdoor installations, where high-speed data transmission is required over long distances. The cable is available in different span lengths and comes with various features such as FRP, armored layer, tight buffer, and different sheath materials.

Features:

• Product Name: Aerial Fiber Optic Cable
• Outsheath: PE / LSZH / OFNP
• Jacket: HDPE
• Fiber Type: Single-mode
• Operating Temperature: -40°C To +70°C
• Sheath Material: LSZH

This Aerial Fiber Optic Cable is also known as Overhead Fiber Line, Aerial FO Cable, or Aero Optical Cable.

Technical Parameters:

Applications:

The cable's black color makes it easy to identify, and its PBT Loose Tube design ensures that it can withstand harsh weather conditions, making it perfect for use in overhead fiber line installations. The cable is also suitable for use in duct installations, making it a versatile option for different scenarios.

Manufactured in Guangzhou, the JQ ADSS Aerial Fiber Optic Cable comes with different outer sheath options including PE, LSZH, and OFNP. These different options make it possible to use the cable in different environments, depending on the specific needs of the installation.

The cable's maximum bending radius of 20D ensures that it can be used in situations where flexibility is important. This feature is particularly useful in scenarios where the cable needs to be installed around tight corners or other obstacles.

Overall, the JQ ADSS Aerial Fiber Optic Cable is a versatile and reliable option for various applications. It is perfect for use in overhead fiber line installations and can also be used in duct installations. Whether you need to install a cable in harsh weather conditions or in tight spaces, this cable is a great choice as it can withstand different installation scenarios.

Packing and Shipping:

Product Packaging:

• Each aerial fiber optic cable is packaged in a sturdy cardboard box to prevent any damage during transportation.
• The box is labeled with the product name and specifications for easy identification.

Shipping:

• Shipping is available worldwide.
• The aerial fiber optic cable will be shipped using a reliable shipping carrier to ensure timely and safe delivery.
• Customers will receive a tracking number upon shipment so they can track their package online.

FAQ:

Q: What is the brand name of the aerial fiber optic cable?

A: The brand name of the aerial fiber optic cable is JQ.

Q: What is the model number of the aerial fiber optic cable?

A: The model number of the aerial fiber optic cable is ADSS.

Q: Where is the aerial fiber optic cable manufactured?

A: The aerial fiber optic cable is manufactured in Guangzhou.

Q: What is the maximum span length for the aerial fiber optic cable?

A: The maximum span length for the aerial fiber optic cable depends on various factors such as the cable diameter, wind speed, and ice loading. Please consult our technical team for specific recommendations.

Q: What is the maximum operating temperature for the aerial fiber optic cable?

A: The maximum operating temperature for the aerial fiber optic cable is 70°C.
