PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial

1km
MOQ
PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: YOFC,Fiberhome,as Request
Color: Black
Jacket: PE,MDPE
Strength Member: Steel Wire
Fiber Count: 2-288 Cores
Installation: Aerial & Duct
Armored: Steel Tape
Product Name: Outdoor Optic Fiber Cable
Application: Network
Highlight:

Aerial Fiber Optic Cable

,

24Cores Fiber Optic Cable

,

Outdoor Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001
Model Number: GYTS-24B1.3
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial

Product Description

Fiber Count
1 2 4 6 8 12 24 36 48 72 96 144 288 cores
Brand Name
JQ/OEM
Length
1km 2km 3km 4km 5km
Armored
Steel tape

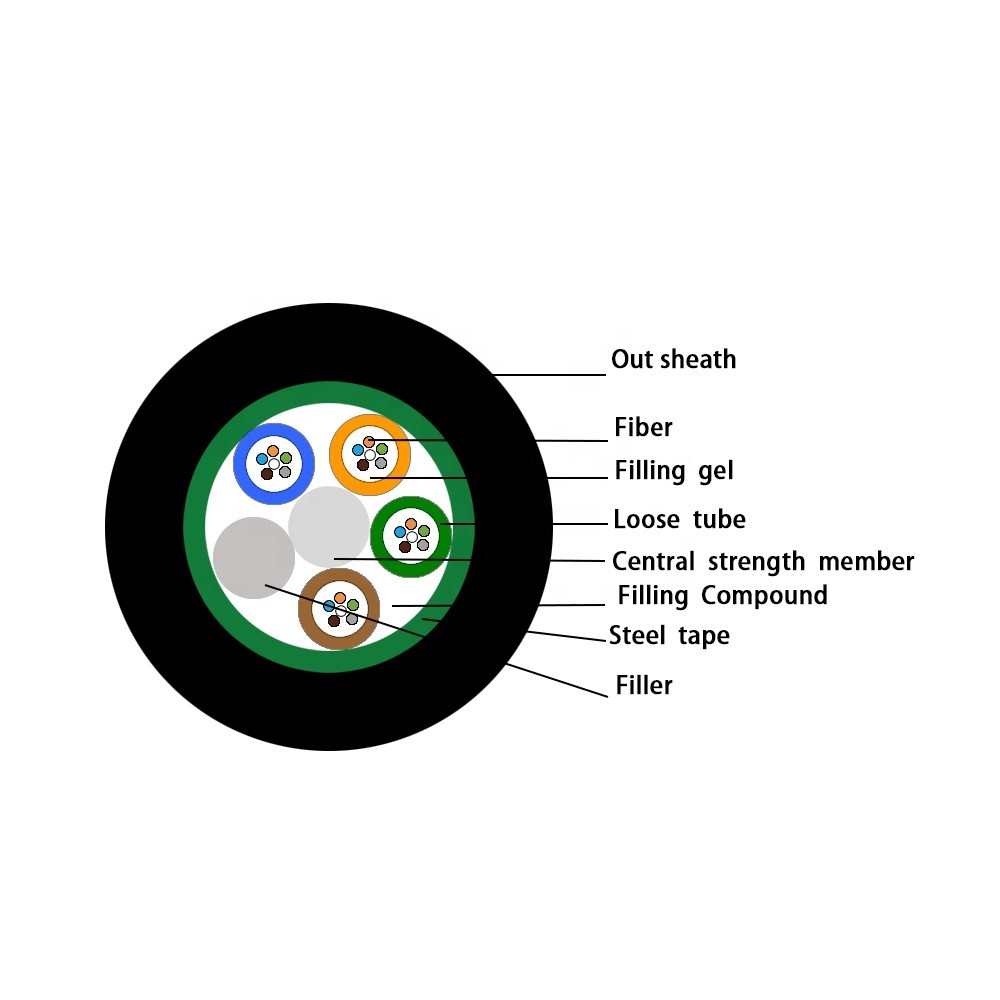

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial 0

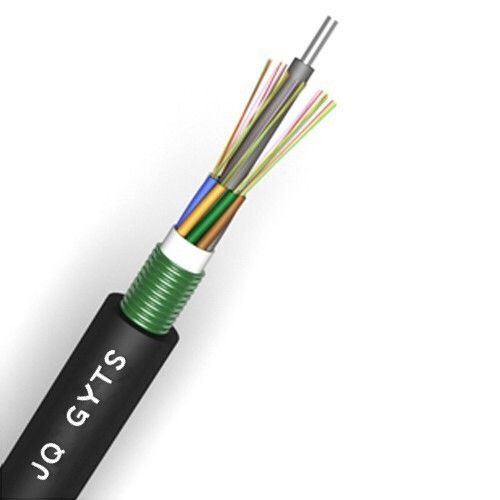

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial 1

Other Models Available(Single/Double Jacket)

2F 4F 8F 12F 24F 48F 72F 96F 128F 144F.

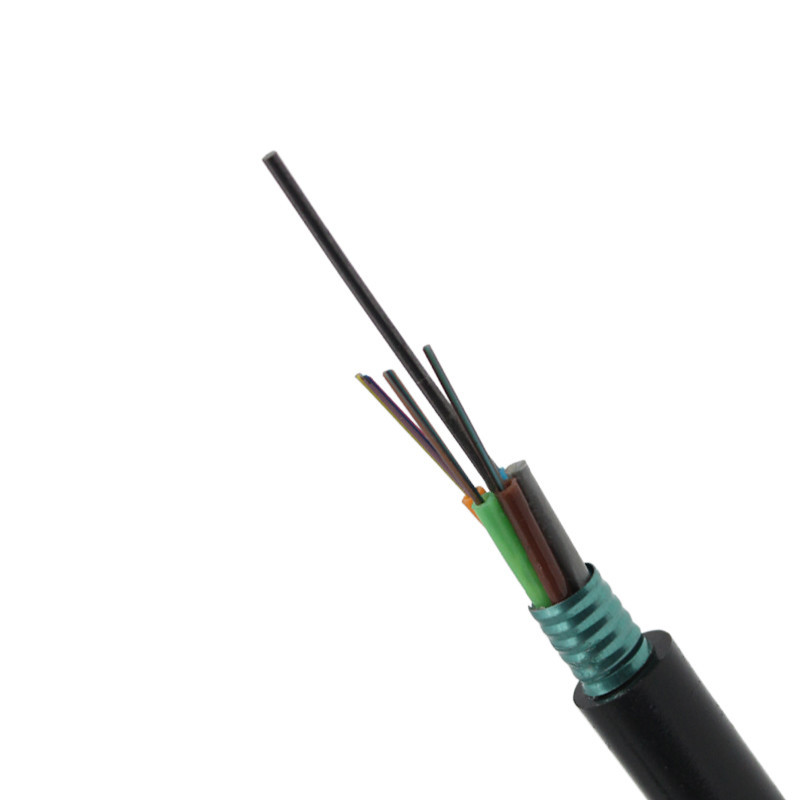

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial 2



Features
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Good crush resistance and flexibility
5. PE or LSZH outer sheath protects cable form ultraviolet ( UV ) radiation
6. The following measures are taken to ensure the cable watertight
7. Single steel wire used as the central strength member
8. PSP used for moisture proof and anti-rodent function
9. Loose tube filling compound
10. 100% cable core filling




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Application



Suitable for external application in duct and aerial

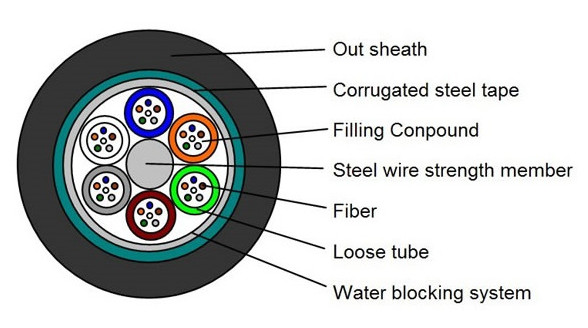

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial 3









Packing details



LCL Delivery
<10000m
<20000m
<50000m
>100000m

3 Days
5 Days
8Days
Negotiable

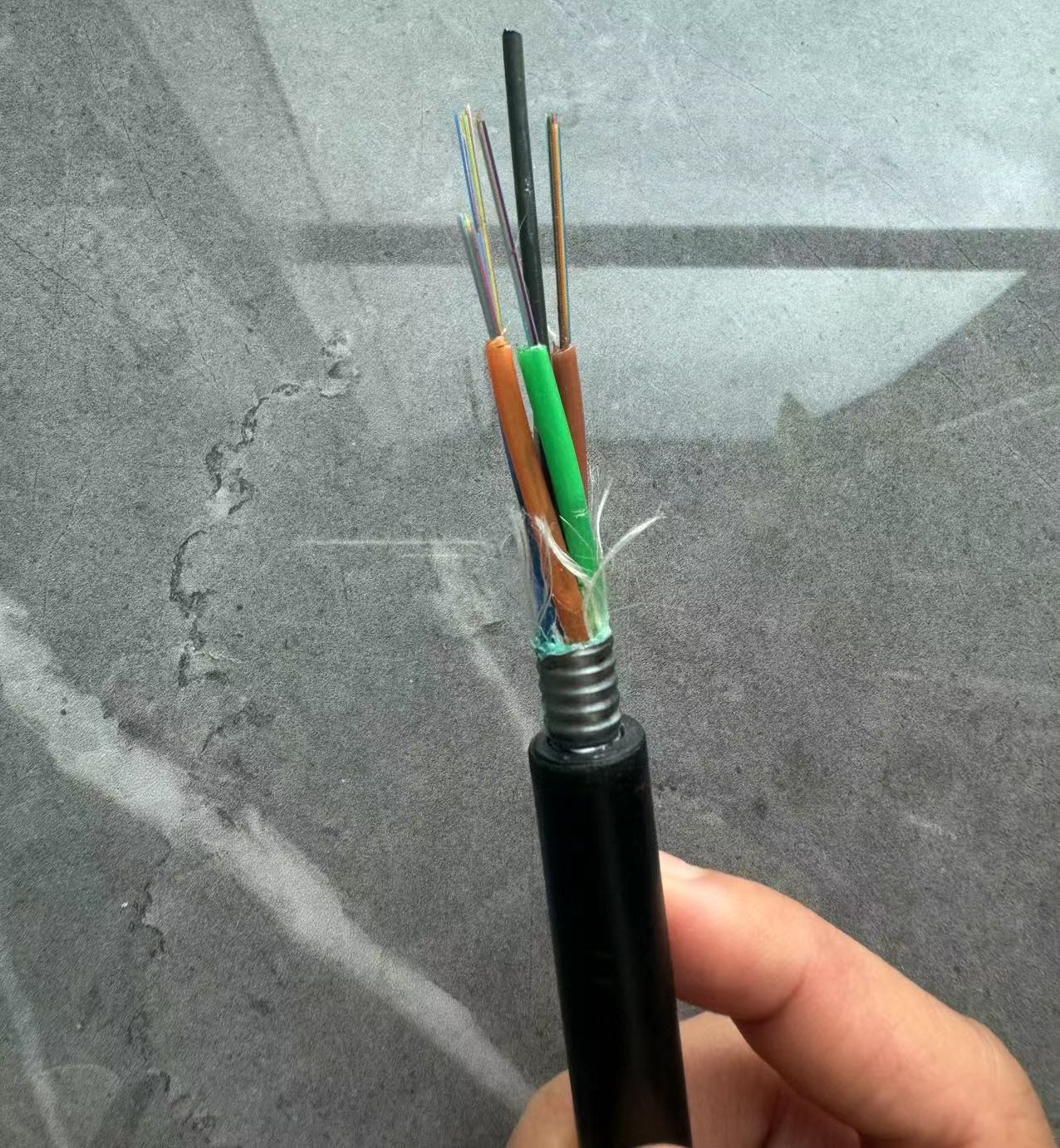

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial 4

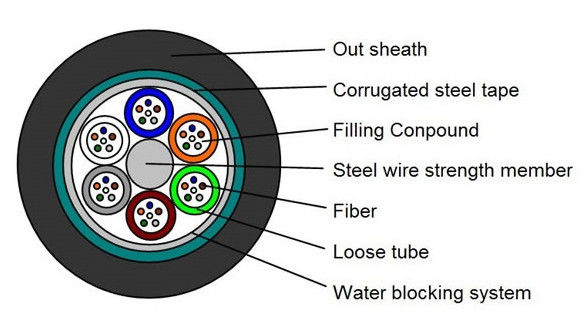

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial 5

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial 6

PSP Flexibility 24Cores Outdoor GYTS G652D Fiber Optic Cable For Aerial 7
