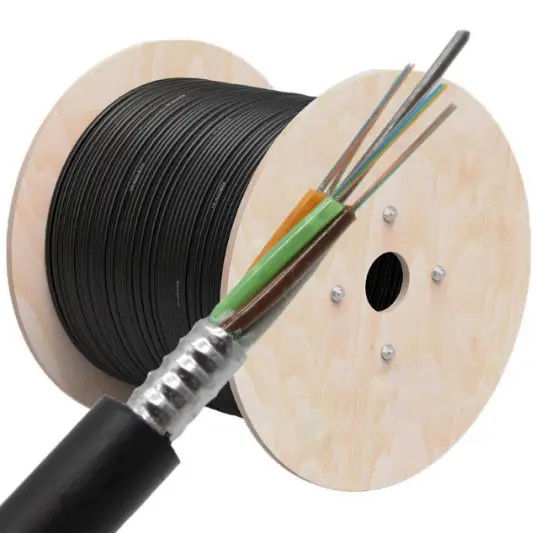

12 Core fiber optic cable outdoor G652D G657A overhead armored fibre optical cable GYXTW
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166

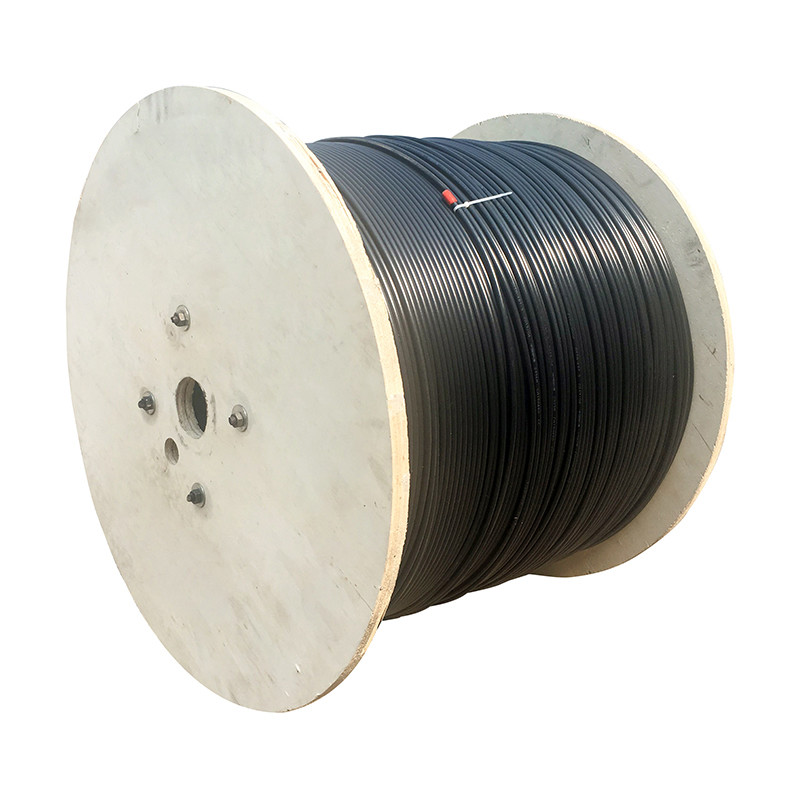

Minimum Order Quantity : | 2km | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 5 days | Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 45000KM Per Month |
Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
---|---|---|---|
Certification: | ISO9001, FCC, ROHS/CE | Model Number: | GYTS-12/24/48/72/96/144/288F |
Detail Information |
|||
Color: | Black Or Red | Jacket Metarial: | HDPE /LSZH |
---|---|---|---|
Strength Member: | Steel Wire | Fiber Count: | 2-288 Cores |
Installation: | Aerial & Duct& Underground | Armored: | Steel Tape |
Application: | Long Distance Singnal Transfer | Fiber Type: | G652D G655 G657A OM2 OM3 |
Cable Drum: | 2~5km | Sample: | Avaliable |
Highlight: | Outdoor Aerial Duct Fiber Optic Cable,Underground Aerial Duct Fiber Optic Cable |
Product Description
Product Description

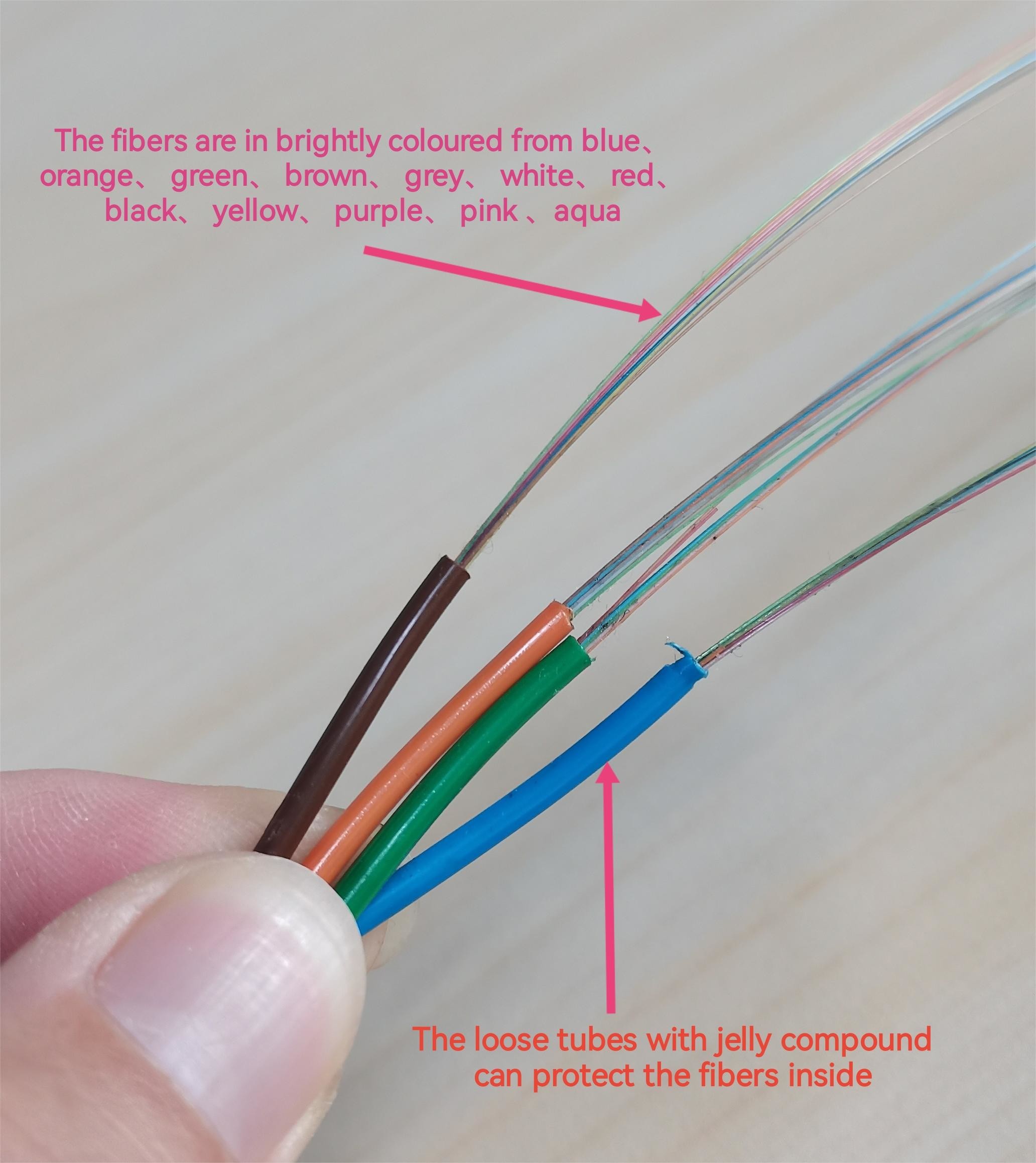

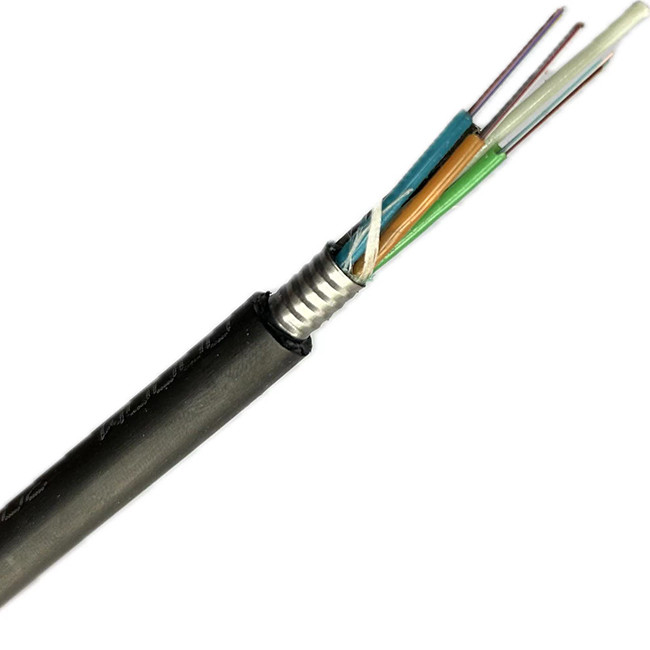

The structure of GYTS optical cable is to put 9/125um single-mode optical fiber or 50/125um, 62.5/125um multi-mode (OM1, OM2, OM3) optical fiber (silicon dioxide) into a loose sleeve made of high water-resisting material, and filling the loose sleeve with hydrate-resisting material. The center of the cable core is a metal reinforcement core. For multi-core optical cables, the reinforcement core needs to add a layer of PE jacket. Loose casing and filling rope around the center of the reinforcement core are twisted with compact and round cable cores. The gap in the cable core is filled with water-blocking filler. Double-sided wrinkled steel belt (PSP) is wrapped vertically and extruded into a polyethylene sheath into a cable.
Features
1. double-sided wrinkled steel strip (PSP) improves the moisture-resistant ability of the optical cable, and the wrinkled part can be better combined with PE to make the structure stronger.
2. anti-tensile, anti-wear, anti-impact, anti-flattening, can be repeated dome bending, twisting, bending, bending (the dome bending angle does not exceed 90°) shooting, etc.,
3. with good mechanical properties.
Applications:
• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
2-30 | 9.2 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 | ||
38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 | ||
62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 | ||
74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 |
Detail product pictures

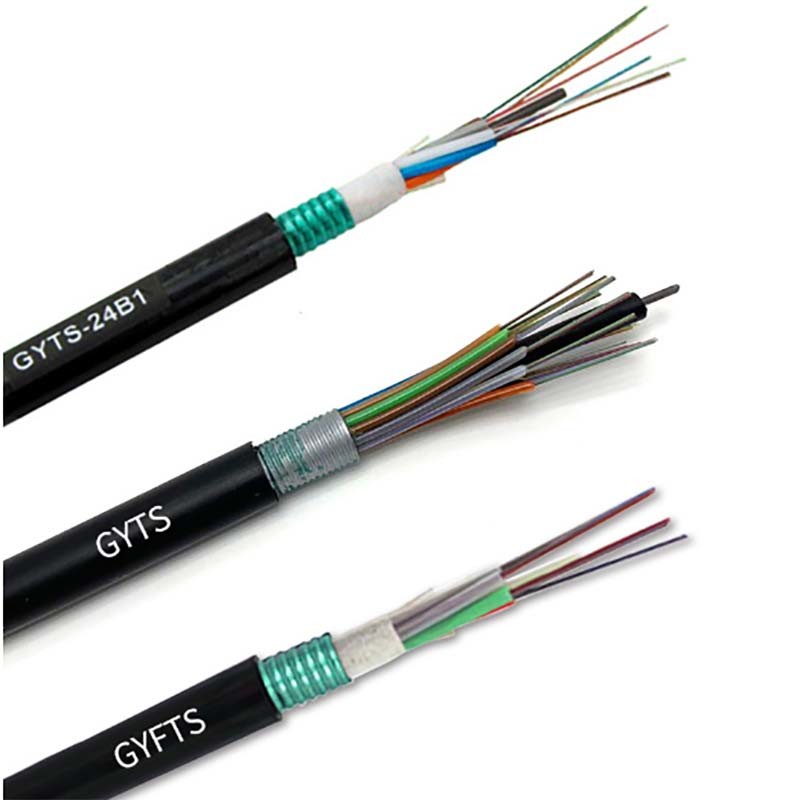

GYFTS
