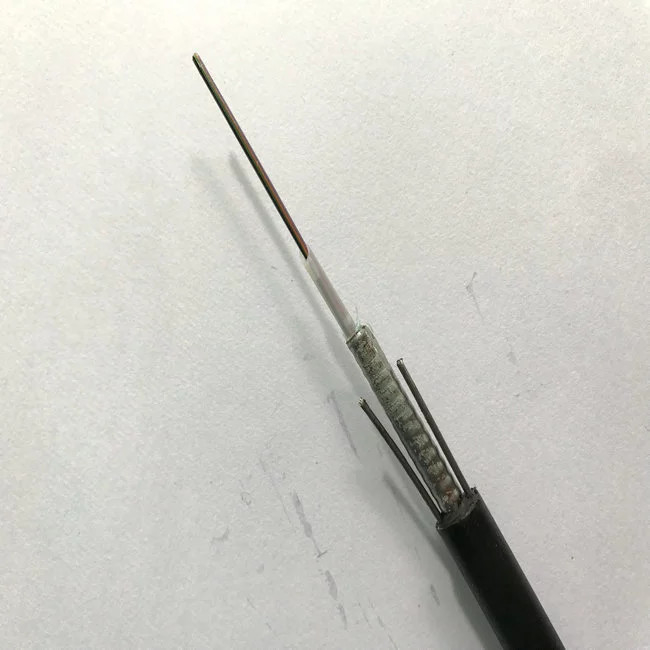

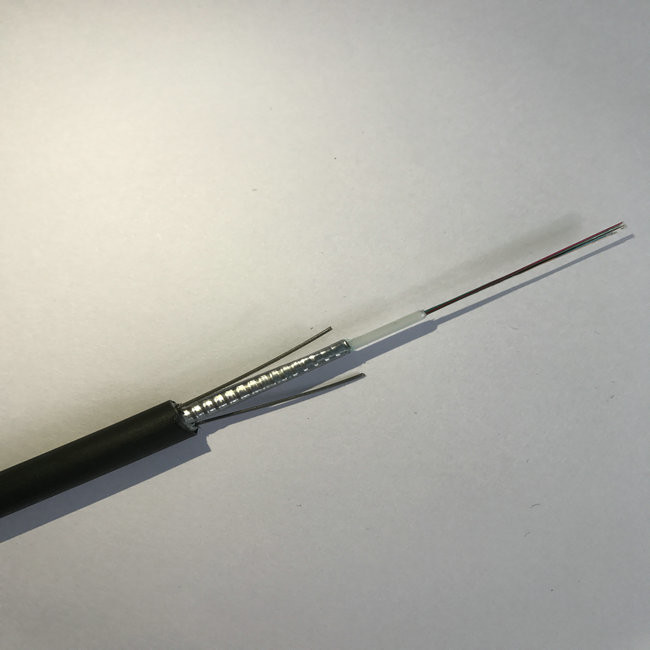

GYXTW Outdoor Fiber optic Cable

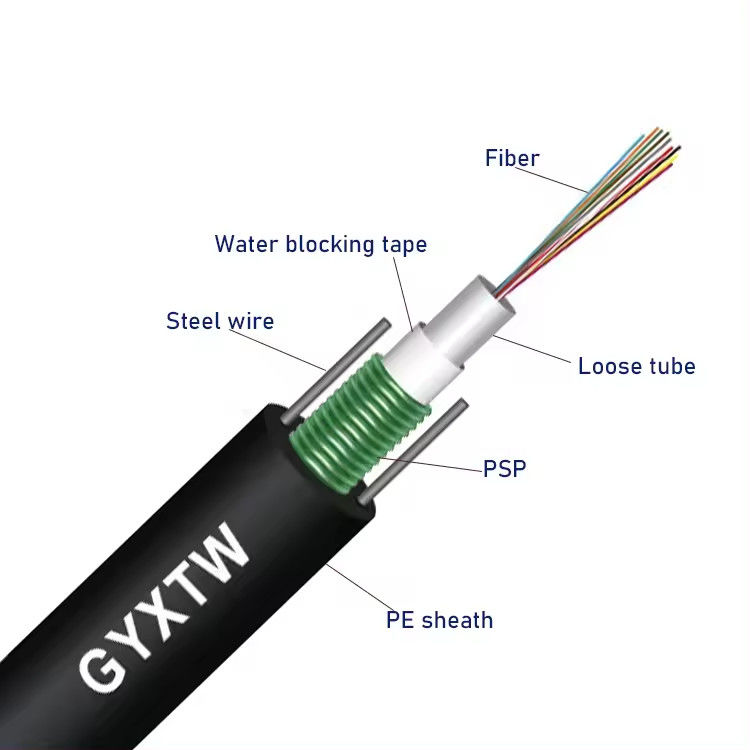

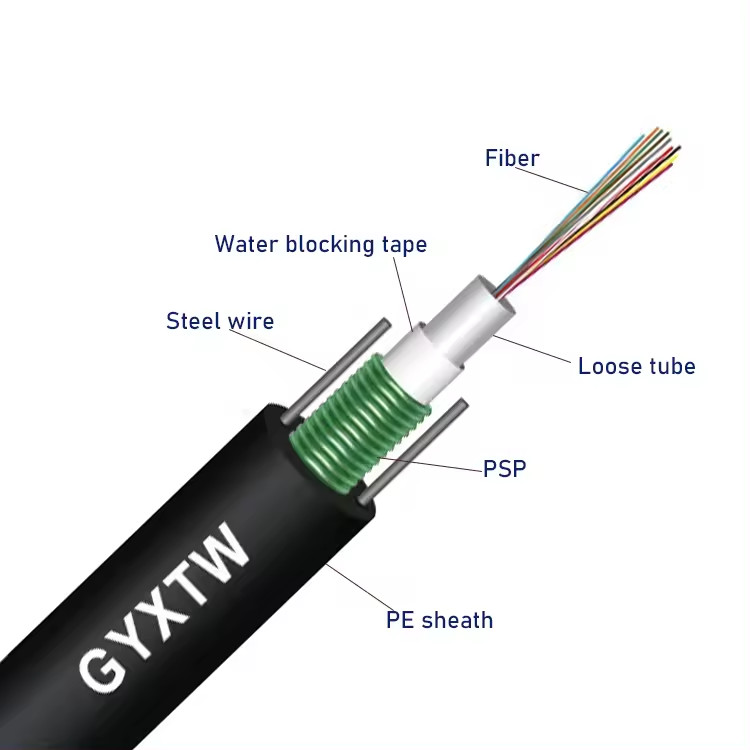

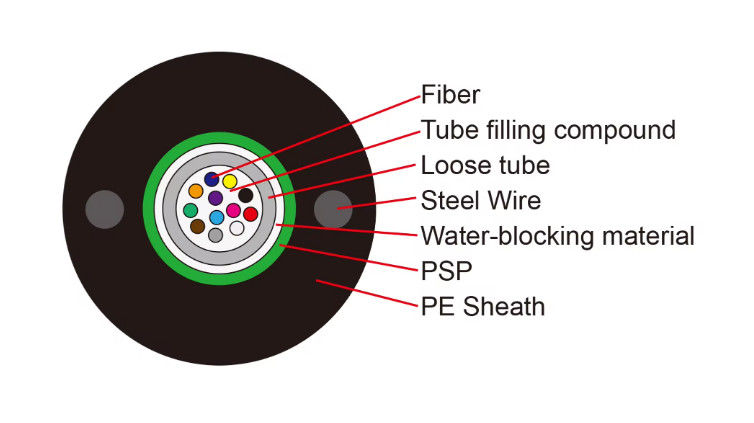

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheat.
Features
1 ,Good mechanical and temperature performance
2 ,High strength loose tube that is hydrolysis resistant
3 ,Special tube filling compound ensure a critical protection of fiber
4 ,Crush resistance and flexibility
5 ,PSP enhancing moisture-proof
6 ,Two parallel steel wires ensure tensile strength
7 ,Small diameter, light weight and friendly installation
8 ,Storage / Operating Temperature: -40℃~+70℃
Application
Usable in Duct / Aerial
Fiber Parameter
No. | Items | Unit | Specification | |
G.652D | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.24 |
Cable Parameters
Items | Specifications | |
Fiber Count | 2~24 | |
Colored Coating Fiber | Dimension | 250µm±15µm |
Color | Blue, Orange, Green, Brown, Gray, White | |
Loose Tube | Dimension | 2.10mm±0.05mm |
Material | PBT | |
Color | Natural | |
Strength Member | Diameter | 1.0mm |
Material | Steel | |
Outer Jacket | Dimension | 8.0mm±0.1mm |
Material | PE | |
Color | Black |
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tensio (Long Term) | N | 600 |
Tension (Short Term) | N | 1500 |
Crush (Long Term) | N/10cm | 300 |
Crush (Short Term) | N/10cm | 1000 |
Min. Bend Radius (Dynamic) | mm | 20D |
Min. Bend Radius (Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+70 |
Storage Temperature | ℃ | -40~+70 |
Technical Parameter
Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
14~24 | 12.0 | 147 | 1000/3000 | 1000/3000 | 10D/20D |
Transmission Characteristics | |||||
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Max Attenuation (dB/km) (+20℃) |
850 nm | 3.0 | 3.3 | ||
1300 nm | 1.0 | 1.0 | |||
1310 nm | 0.36 | 0.4 | |||
1550 nm | 0.24 | 0.23 | |||
Cable Cute-off Wavelength (nm) | ≤1260 | ≤1450 |
|
Packing detail :

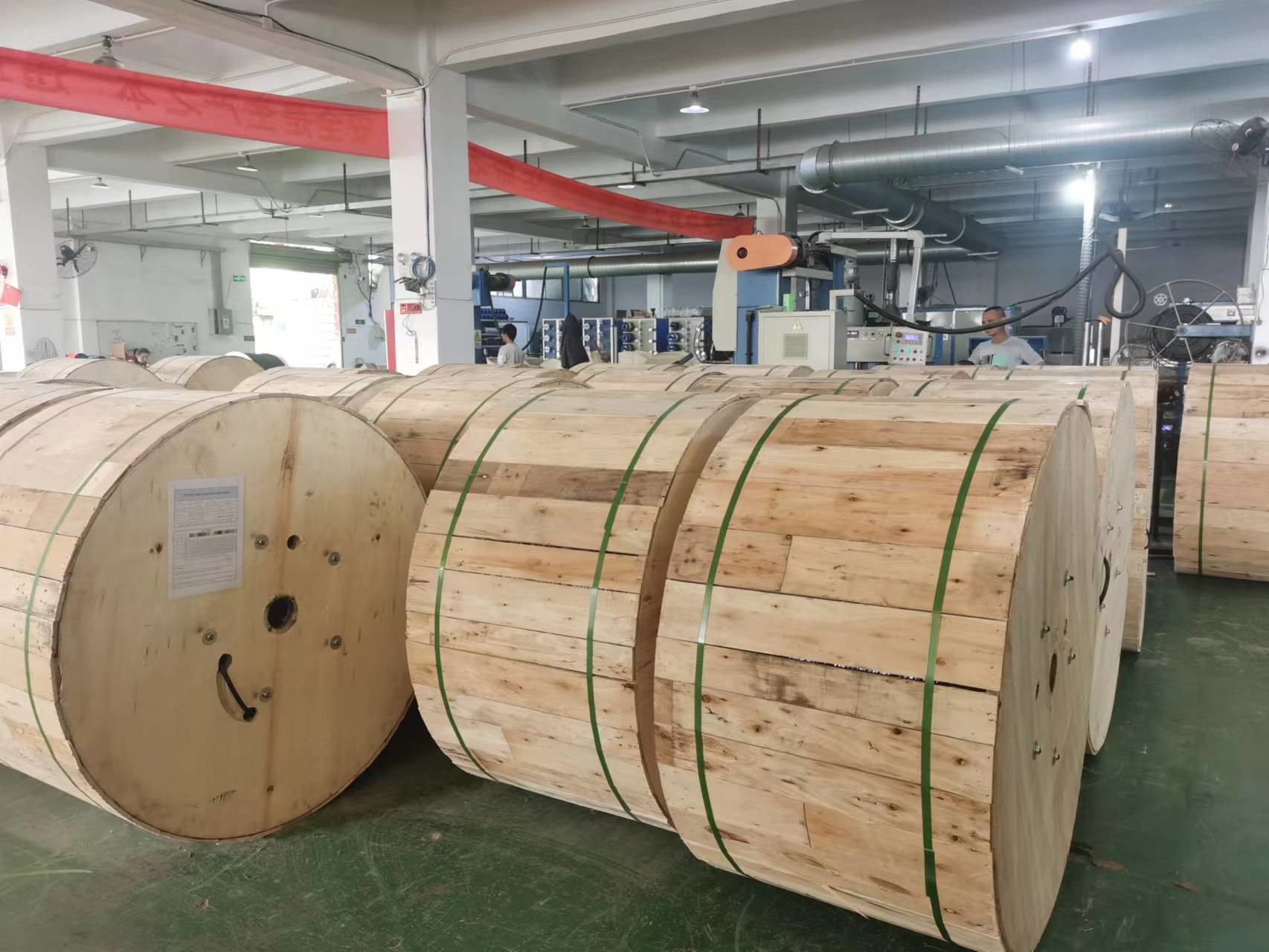

1km/2km/3km/4km/5km per wooden drum.
5KM:100*100*90CM. 4KM:90*90*78CM
Shipping:By sea/by air or express delivery,it depends on the order quantity
