Home ProductsAerial Fiber Optic CableSM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable

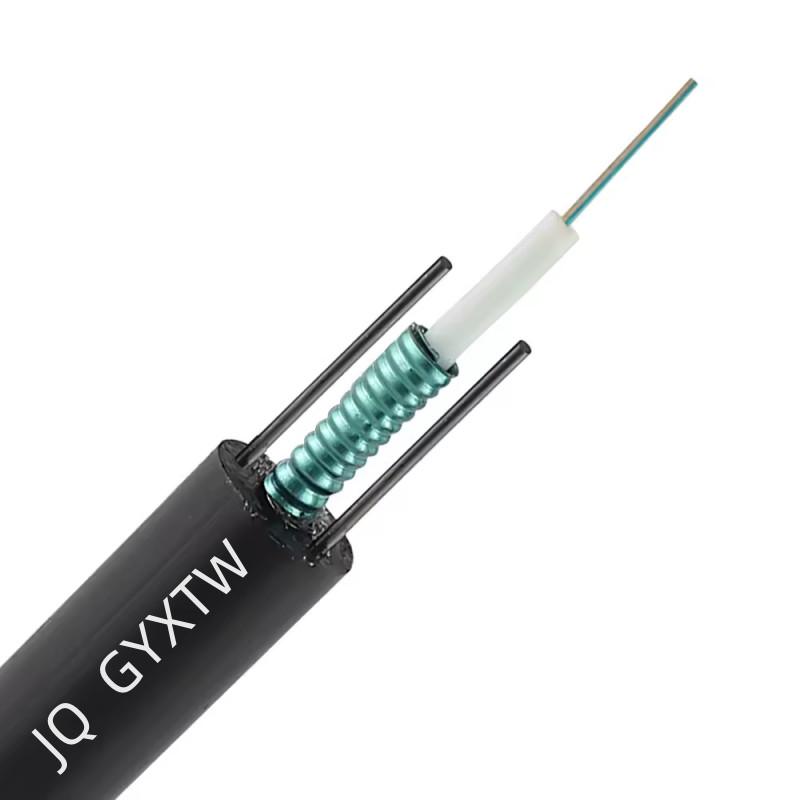

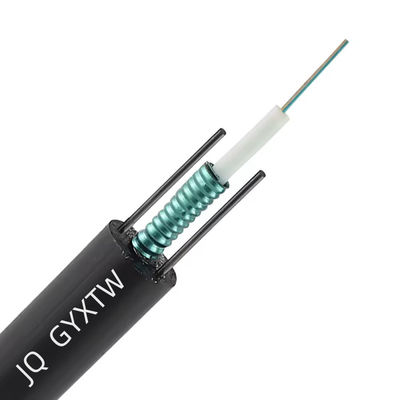

SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable
SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable
SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable
Contact Now

SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : 1/2/3/4/5 km in one wooden drum
Delivery Time : 3-5dyas Payment Terms : L/C, T/T, Western Union
Supply Ability : 10000 Per day
Place of Origin: Guangzhou China Brand Name: JQ/OEM
Certification: ISO9001 Model Number: GYXTW

Detail Information
Jacket Material: HDPE Outer Diameter: 6/7/8mm
Steel Wire: 0.7/0.8/1.0mm Color: Black
Fiber Count: 2/4/6/8/12/24 Core Structure: Unit Tube
Strength Member: Two Steel Wire Installation: Aerial &Duct
Product Name: Outdoor Optic Fiber Cable Fiber Type: YOFC Or As Request
Oem: Available
Highlight:

12 Core Outdoor Fiber Optic Cable

,

GYXTW53 Outdoor Fiber Optic Cable

,

SM Outdoor Fiber Optic Cable

Product Description

SM singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable





SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable 0

SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable 1

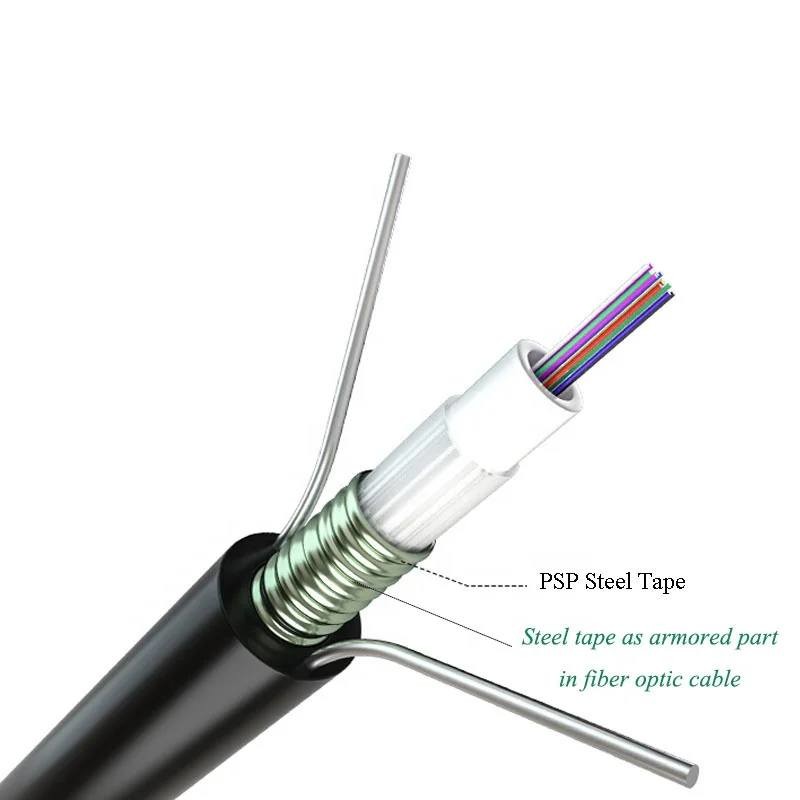

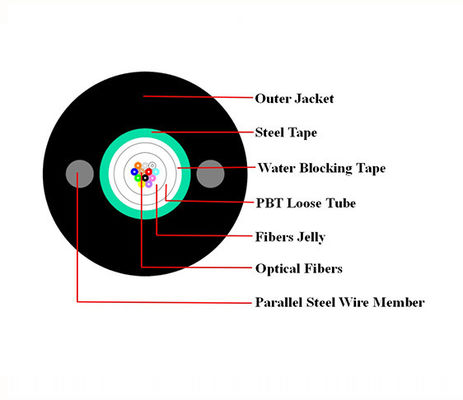

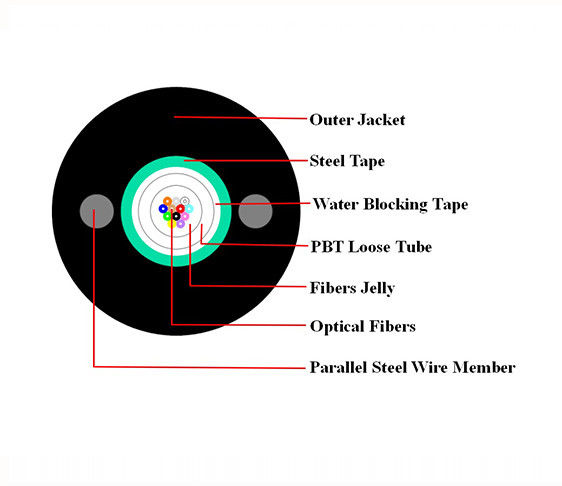

Strength Member:
Embedded steel wire1.0mm or 0.7mm



Armor:
Corrugated steel tape(PSP)



2-24 fibers
Uni-loose tube gel-filled


OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable 2



Features

Outdoor fiber cable central tube GYXTW
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* PSP enhancing moisture-proof
* Two parallel steel wires ensure tensile strength
* Small diameter, light weight and friendly installation
* Long delivery length





Performance of Cabled Optical FiberThe performance of cabled optical fiber (ITU-T Rec. G.652D)
Item
Specification
Fiber type
Single mode
Fiber material
Doped silica
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm


≤ 0.36 dB/km
≤0.35 dB/km
≤0.22 dB/km
≤0.25 dB/km
Point discontinuity
≤ 0.05 dB
Cable cut-off wavelength
≤ 1260 nm
Zero-dispersion wavelength
1300 ~ 1324 nm
Zero-dispersion slope
≤0.092 ps/(nm².km)
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm


≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
PMD
≤0.2 ps/km½
Mode field diameter @ 1310 nm
(8.6~9.5)±0.6 um
Core / Clad concentricity error
≤0.6 um
Cladding diameter
125.0 ± 1 um
Cladding non-circularity
≤1.0%
Primary coating diameter
245 ± 10 um
Proof test level
100 kpsi (=0.69 Gpa), 1%
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm
≤ 0.1 dB/km
Optical Characterstics




Fiber
Multi mode
G.651
A1a:50/125
Graded-index fiber
A1a:62.5/125
Single mode
G.652(A,B,C)
B1.1:Conventional fiber
G.652D
B2:Zero dispersion shifted
G.655
B1.2:Cut-off wavelength shifted
G.657(A1,A2,B3)
B4:Main technical data for positive dispersion shifted single-mode fiber



Technical Parameters:




Outer
Diametre
NW
Minimum allowable Tensile Strength(N)
Minimum allowable CrushLoad(N/100m)
Minimum Bending Radius(MM)
Storage Temperatue

(MM)
(KG)
short/long term
short/long term
short/long term
(°C)
2
8.0
70
1500/600
1000/300
20D/10D
-40~+60
4
8.0
70
1500/600
1000/300
20D/10D
-40~+60
6
8.0
70
1500/600
1000/300
20D/10D
-40~+60
8
8.0
70
1500/600
1000/300
20D/10D
-40~+60
10
8.0
70
1500/600
1000/300
20D/10D
-40~+60
12
8.0
70
1500/600
1000/300
20D/10D
-40~+60
24
9.0
95
1500/600
1000/300
20D/10D
-40~+60



Different diaameter different colors can be customized,Welcome to your Inquiry!



SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable 3

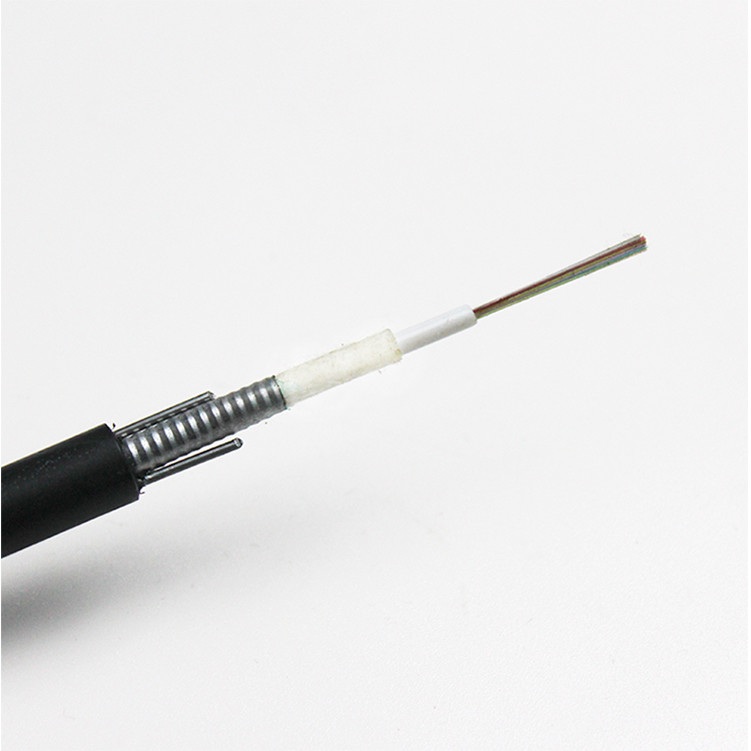

GYXTW fiber optic cable
✅OD :6mm 7mm 8mm
✅Support customization

SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable 6SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable 7



Application

Suitable for Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃

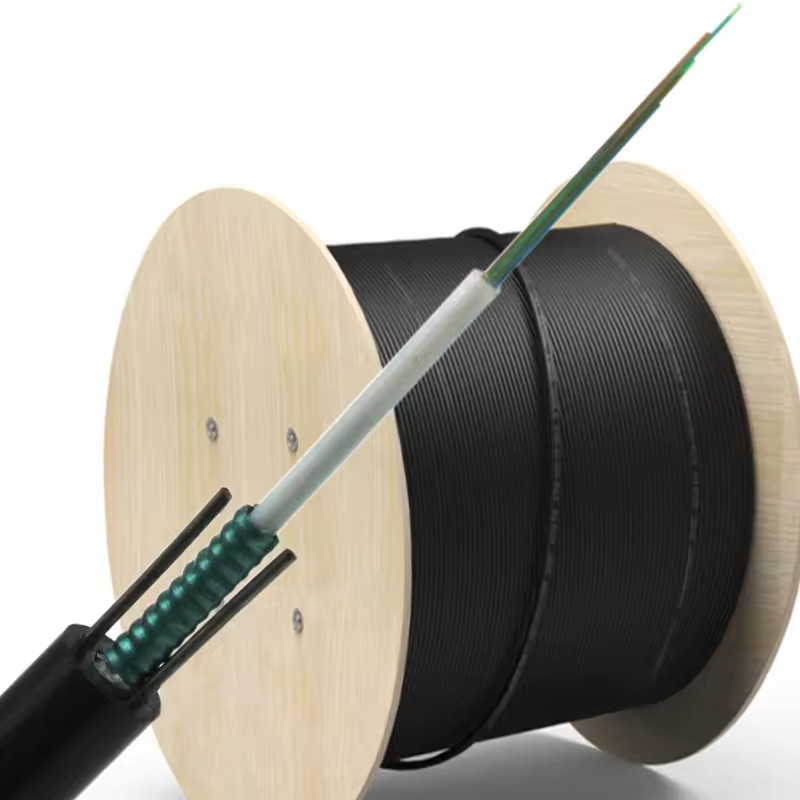

Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable 8



SM Singlemode Outdoor Fiber Optic Cable GYXTW53 GYXTW Mulitmode OM3 12 Core Fiber Optic Cable 9


Short delivery time High qualtiy Good price
