Underground Armored SM G652D 48 96 144 Core Fiber Optical Cable

Contact Now

Underground Armored SM G652D 48 96 144 Core Fiber Optical Cable

Minimum Order Quantity :	1000m	Packaging Details :	wooden drum
Delivery Time :	Usually 5-7 days	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	1000km per month

Place of Origin:	CHINA	Brand Name:	Jiqian
Certification:	ISO9001/CE/ROHS/FCC	Model Number:	GYTS

Detail Information
Fiber Type:	SM G652D	Application:	Aerial/duct
Number Of Conductors:	4-288 Core	Structure:	Stranded Loose Tube
Operating Temperature:	-40 ~ +60 C	Factory:	Yes
OEM:	Available	Armoured Type:	Yes
Fiber Brand:	YOFC/Fiberhome
Highlight:	SM G652D Fiber Optical Cable , Underground Armored Fiber Optical Cable , 144 Core Fiber Optical Cable

Product Description

GYTS optical cable is a communication cable with the same transmission speed as light. It has wide bandwidth, fast transmission speed, good confidentiality, anti-electromagnetic interference, good insulation, long life and good chemical stability. GYTS optical cable is mainly divided into two types: GYTS multi-mode fiber optical cable and GYTS single-mode fiber optical cable.

Features:

1.tensile strength

2.wear resistance

3.impact resistance

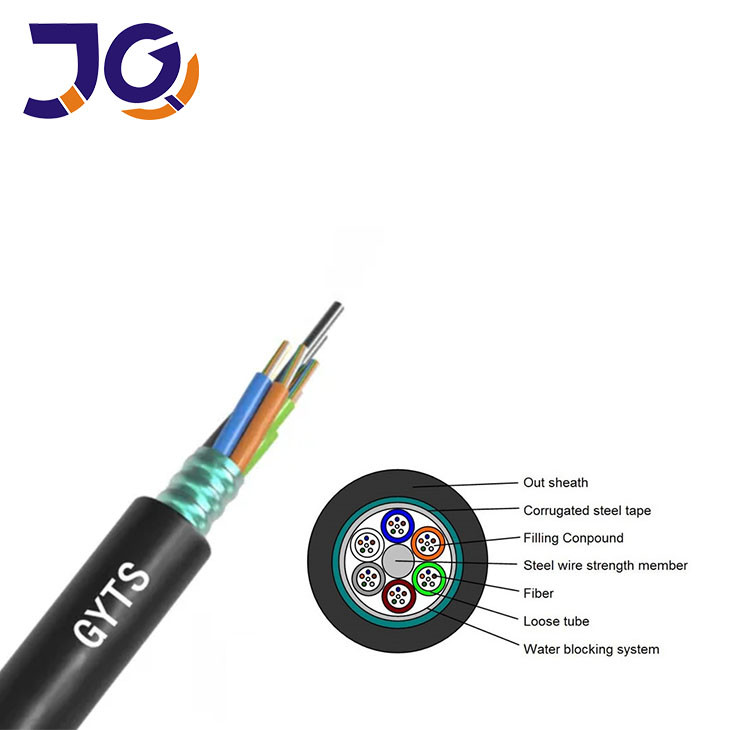

Underground Armored SM G652D 48 96 144 Core Fiber Optical Cable 0

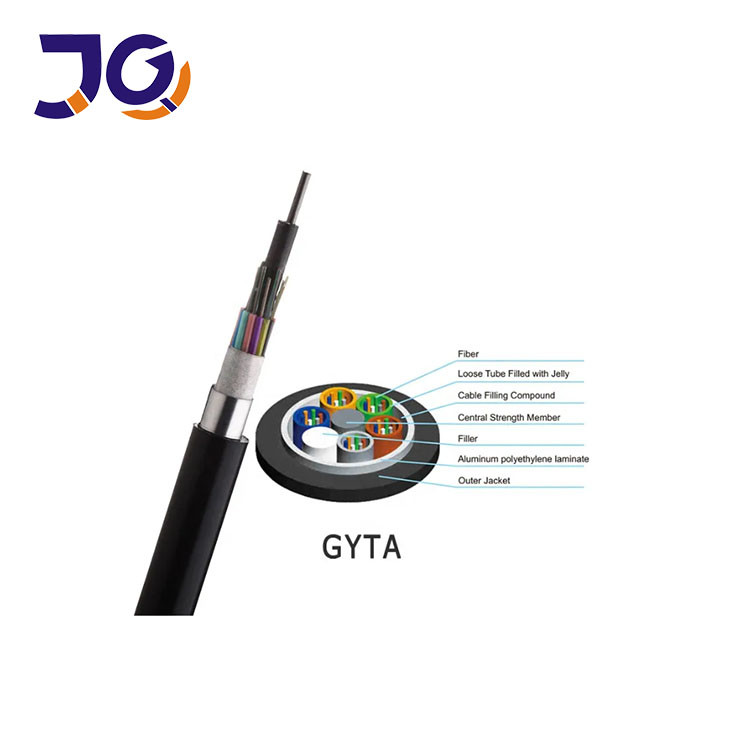

Underground Armored SM G652D 48 96 144 Core Fiber Optical Cable 1

G652D Fiber Optic:

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.35
Attenuation Coefficient	1550nm	dB/km	≤0.21
Proof stress level		kpsi	≥100

Mechanical and Environmental Characteristics

Item	Unit	Specifications
Tension(Long Term)	N	800
Tension(Short Term)	N	2000
Crush(Long Term)	N/10cm	500
Crush(Short Term)	N/10cm	1500
Min. Bend Radius(Dynamic)	mm	20D
Min.Bend Radius(Static)	mm	10D
Installation Temperature	℃	-40～+60
Operating Temperature	℃	-40～+70
Storage Temperature	℃	-40～+70
Repeating bending	Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Torsion	Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage.
Impact	Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.

COMPANY PROFILE:

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

FAQ:

Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes

Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

FOR MORE INFORMATION PLEASE CONTACT ME
