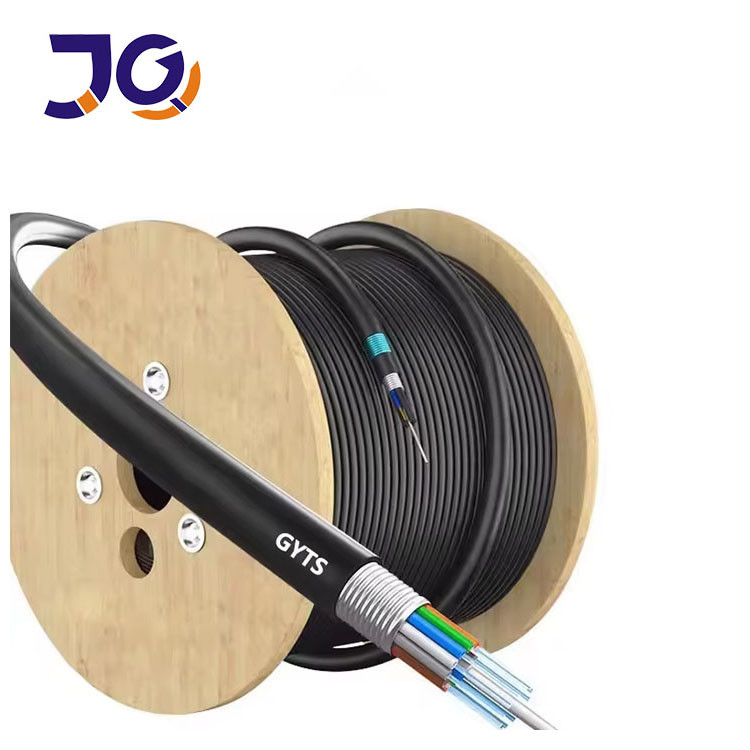

Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core
Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core
Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core
Contact Now

Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : Usually 5-7 days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 1000km per month
Place of Origin: CHINA Brand Name: Jiqian
Certification: ISO9001/CE/ROHS/FCC Model Number: GYTS

Detail Information
Fiber Type: SM G652D Application: Aerial/duct
Number Of Conductors: 4-288 Core Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C Factory: Yes
OEM: Available Armoured Type: Yes
Fiber Brand: YOFC/Fiberhome/Corning
Highlight:

Armored Fiber Optic Cable GYTS

,

288 Core Fiber Optic Cable GYTS

,

Outdoor Fiber Optic Cable GYTS

Product Description

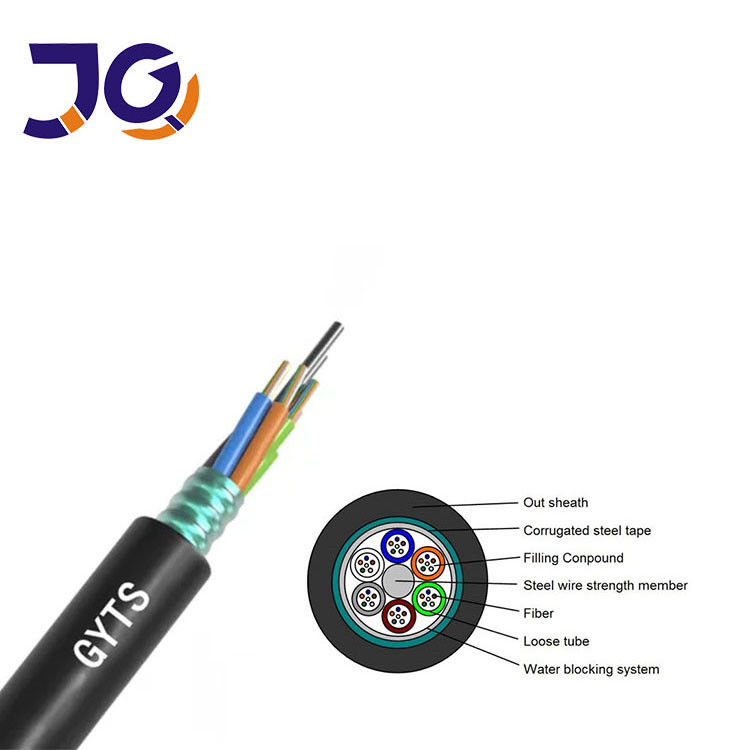

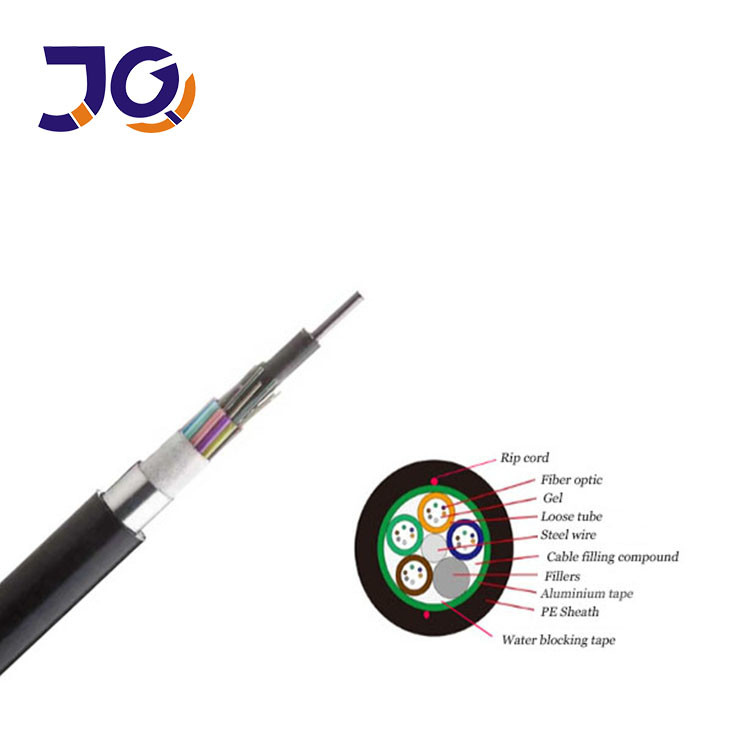

GYTS armored fiber optical cable for outdoor underground installation with metal strengthening member, loose tube stranded and filled, steel-polyethylene bonded sheathed outdoor optical fiber cable for communication. The structure of the optical cable is to sheath single-mode or multi-mode optical fiber into the inner filling made of high modulus plastic Waterproof compound in loose tube. The center of the cable core is a metal reinforced core. For some fiber optic cable type, the metal reinforced core is also extruded with a layer of polyethylene.

Features:

●Precise control of the excess length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics

●PBT loose tube material has good hydrolysis resistance, and the tube is filled with special grease to protect the optical fiber ●Steel-polyethylene sheath has excellent compressive performance

●Smooth outer sheath enables the optical cable to have a smaller coefficient of friction during installation

●PE sheath has good resistance to solar radiation

●The following measures are adopted to ensure the waterproof performance of the optical cable: the loose tube is filled with special waterproof compounds; the cable core is completely filled with a steel-plastic composite with a moisture-proof layer.

Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core 0

Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core 1



G652D Fiber Optic:

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Proof stress level kpsi ≥100



Mechanical and Environmental Characteristics



Item Unit Specifications
Tension(Long Term) N 800
Tension(Short Term) N 2000
Crush(Long Term) N/10cm 500
Crush(Short Term) N/10cm 1500
Min. Bend Radius(Dynamic) mm 20D
Min.Bend Radius(Static) mm 10D
Installation Temperature ℃ -40～+60
Operating Temperature ℃ -40～+70
Storage Temperature ℃ -40～+70



Repeating bending

Load:250N;number of cycles:30 No obvious addition

attenuation, no fiber break and no cable damage.



Torsion

Load:250N; number of cycles:10; twist angle:±90° No obvious

addition attenuation, no fiber break and no cable damage.



Impact

Impact energy:450g×1m; radius of hammer head:12.5mm;

number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.

COMPANY PROFILE:
Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core 2
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core 3

Exhibition:
Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core 4
FAQ:
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes

Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

FOR MORE INFORMATION PLEASE CONTACT ME
Outdoor Fiber Optic Cable GYTS Armored SM G652D 96 144 288 Core 5
