6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)

1km
MOQ
6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: YOFC,Fiberhome,as Request
Color: Black
Jacket: PE,MDPE
Strength Member: Steel Wire
Fiber Count: 2-24 Cores
Installation: Aerial & Duct
Fiber Color: Blue,Orange,Brown,Aqua,Grey
Armored: Steel Tape
Product Name: Outdoor Optic Fiber Cable
Application: Network
Highlight:

Anti-rodent Fiber Optic Cable

,

GYXTS Fiber Optic Cable

,

24 Core Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001

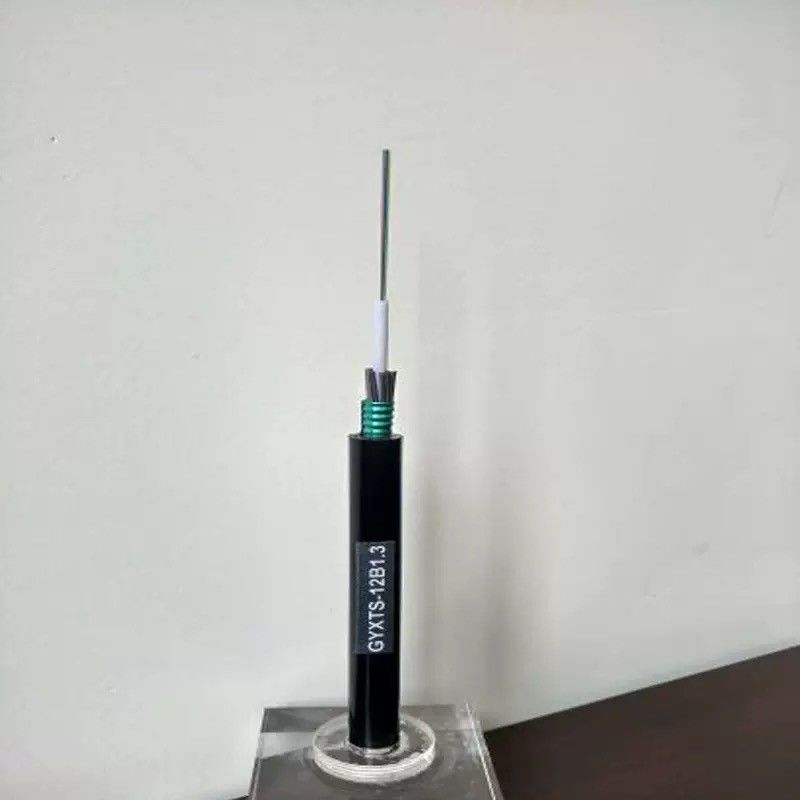

Model Number: GYXTS-24B1
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)

Product Description

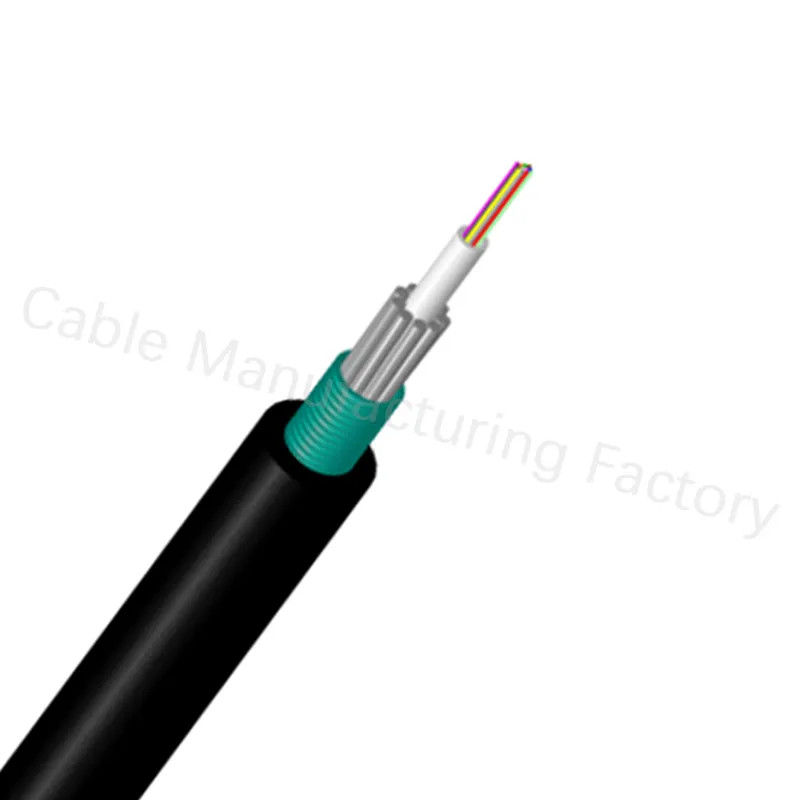

Uni-tube Anti-rodent Optical Cable(GYXTS)

Single-mode/multi mode fibers are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. The loose tube is armored with steel wires and corrugated steel tape. Then a PE outer sheath is extruded.




Fiber Count
2-12
14-24
Tube Diameter
2.2mm
2.6mm
Steel wire diameter (mm) number
0.7mm/12pcs
0.7mm/12pcs
Max core in tube
12
24
Armored Material
Steel Wire
Steel tape
Cable Diameter
8mm
8.5
Cable Weight
104
136
Installation
Aerial
Underground duct
Tensile strength (N)
Long time: 600N
Short time:1500N
Operating Tempersture (°C)
-40~~+60

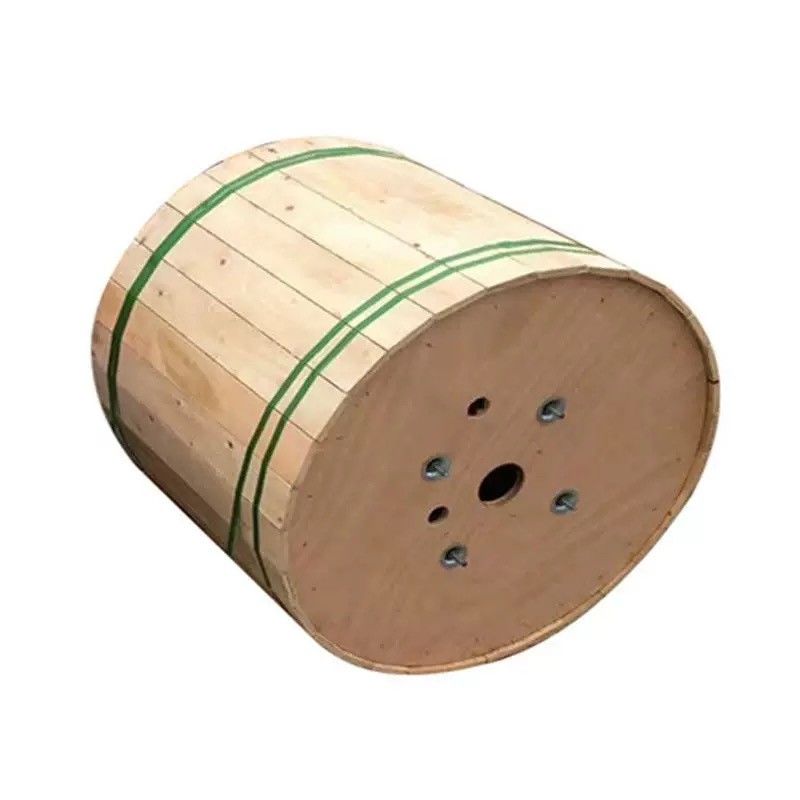

Packing detail
wooden drum
Model Number
Fiber optic cable GYXTS

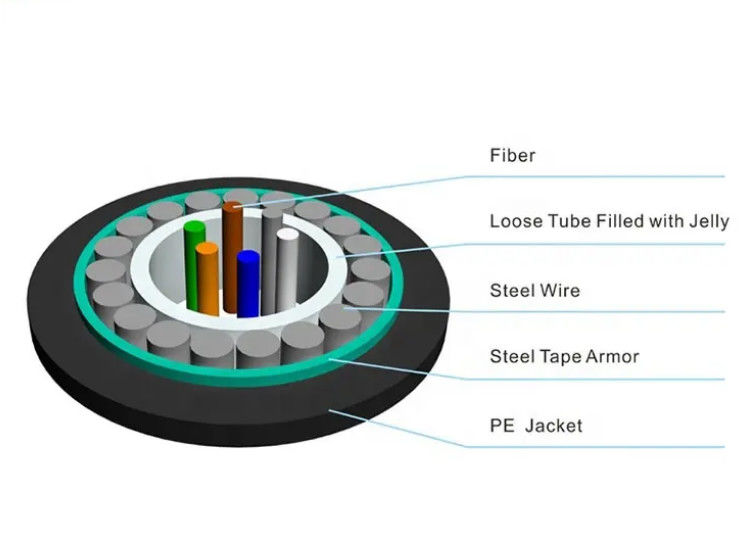

Product Structure



6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS) 0



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22



6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS) 1





Application



Duct and aerial







Delivery&Payment

6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS) 2
