ASU Fiber Optic Cable Mini Adss Single Mode Non Metal 12 Core Self Supported

Minimum Order Quantity :	1KM	Price :	USD110~130 per KM
Packaging Details :	wooden drum	Delivery Time :	3-5 working days ,it depends on your order
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Supply Ability :	60000KM/month

Place of Origin:	Guangdong, China	Brand Name:	Jiqian/Customize
Certification:	ISO9001	Model Number:	ASU

Detail Information
Core Count:	12/24	Lift Time:	30years
Fiber Type:	G652D	Application:	Overhead Aerial
Color:	Black Color	Fiber Per Tube:	4/6/8/12F
Temperature:	-20 To +70	Gallus:	MDPE
Jacket Color:	Black Yellow Bule Or Customized	Water Blocking Tape:	Yes
Gallus Material:	PE	Laying Ways:	Pipeline/Overhead
Tensile Strength:	1000N	Fiber Counts:	2-144cores
Outer Diameter:	6/7/8mm	Outer Jacket Material:	PE
Steel Stranded:	Steel Wire Stranded	Sample:	Avaliable
Outer Sheath:	PE, LSZH, OFNR	Installation:	Self- Supporting Aerial
Highlight:	12 Core Fiber Optic Cable , Non metal Fiber Optic Cable , mini adss Fiber Optic Cable

Product Description

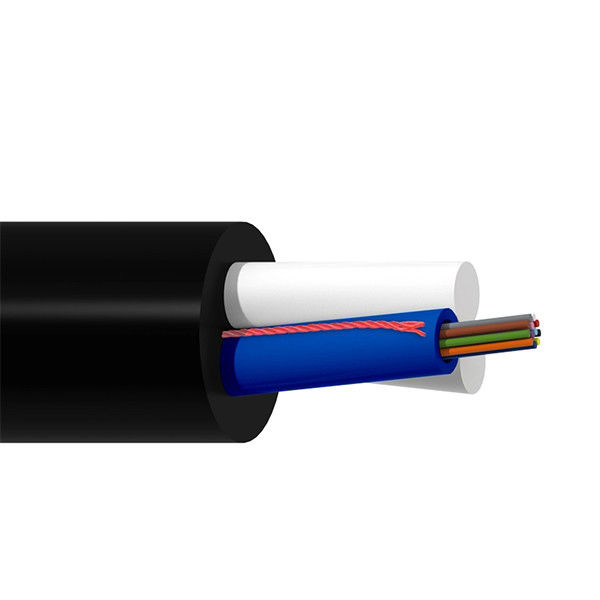

Single Mode G652d 6 12 Core Aerial Self-supported Asu Optic Cable

Fiber Optic Cable (GYFFY) TWO FRP Aerial Fiber Optic Cable (ASU)

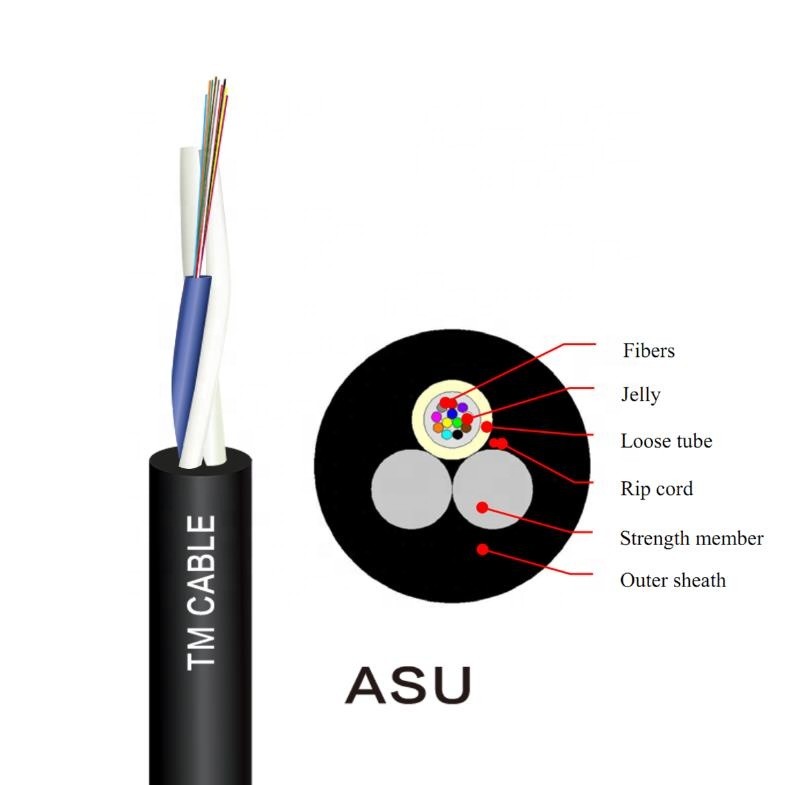

Structure

Fiber type:

2-12 fibers G652D/G657A1/G657A2

Uni- loose tube with gel filled
Fiber Brand:
YOFC/CORNING

Armored:
Non-armored FRP all dielectric mini ADSS outdoor fiber optic cable

Strength Member:

Two Fiber Reinforced Plastic(FRP)

Outer jacket:

Black UV-and moisture-resistant polyethylene (PE)


ASU 80
Engineered for urban infrastructure deployment, ASU80 aerial fiber optic cables possess self-sustaining transmission capabilities across spans extending to 80 meters. This specification aligns with municipal planning standards where utility pole spacing typically maintains 40-meter intervals - effectively halving the cable's maximum permissible span length to ensure structural integrity. The resultant safety margin between theoretical load capacity and real-world implementation makes these cables particularly suitable for metropolitan aerial installations requiring minimal auxiliary support systems.
ASU 100
ASU100 optical cables are self-supporting in spans of up to 100meters, therefore, they are indicated for cable routing in rural areas, where the poles are usually between 90 and 100 meters apart.
ASU 120
ASU120 optical cables are self-supporting in spans of up to 120 meters, therefore, they are indicated for the passage of cables in environments where the poles are far apart, such as on roads and crossings over rivers and bridges.
Technical parameters:


			No. of cable
			1-12

			Fiber Model
			G.652D

			Strength Member
			Material
			FRP

			Diameter(±0.05)mm
			1.8

Loose Tube

			Material
			PBT

			Diameter(±0.06)mm
			1.8

			Thickness(±0.03)mm
			0.35

			The Max.Core NO./Tube
			12

			Outer Sheath
			Material
			PE

			Cable Diameter(±0.2)mm
			6.7

			Cable Weight(±5)kg/km
			38

Min. bending radius

			Without Tension
			10.0×Cable-φ

			Under Maximum Tension
			20.0×Cable-φ

Temperature range
(℃)

			Installation
			-20~+60

			Transport&Storage
			-40~+70

			Operation
			-40~+7

ASU Fiber Optic Cable Mini Adss Single Mode Non Metal 12 Core Self Supported 3

There are twelve fiber color code.They are A grade fiber.

ASU Fiber Optic Cable Mini Adss Single Mode Non Metal 12 Core Self Supported 4

ASU Fiber Optic Cable Mini Adss Single Mode Non Metal 12 Core Self Supported 5

We are fiber cable manufacturer.We have a factory.

ASU Fiber Optic Cable Mini Adss Single Mode Non Metal 12 Core Self Supported 6

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

ASU Fiber Optic Cable Mini Adss Single Mode Non Metal 12 Core Self Supported 7

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me.

FQA

Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.

Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.

Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.

Q5. Can you supply customized products and logo?
Yes. We supply OEM service.

Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
