GYFTY Fiber Optic Cable Self Supporting 12 48 Core Duct Direct Burial Underground
GYFTY Fiber Optic Cable Self Supporting 12 48 Core Duct Direct Burial Underground
GYFTY Fiber Optic Cable Self Supporting 12 48 Core Duct Direct Burial Underground GYFTY Fiber Optic Cable Self Supporting 12 48 Core Duct Direct Burial Underground GYFTY Fiber Optic Cable Self Supporting 12 48 Core Duct Direct Burial Underground GYFTY Fiber Optic Cable Self Supporting 12 48 Core Duct Direct Burial Underground
Contact Now

GYFTY Fiber Optic Cable Self Supporting 12 48 Core Duct Direct Burial Underground

Minimum Order Quantity : 10 km Packaging Details : wooden drum
Delivery Time : 8 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 300KM Per day
Place of Origin: China Brand Name: JQ/ Customized
Certification: ISO9001, FCC, ROHS/CCC Model Number: GYFTY-24F

Detail Information
Fiber Brand: YOFC/Fiberhome/ Corning Color: Black Or Orange Or Customized
Jacket Metarial: PE,HDPE/LSZH Strength Member: FRP(with PE If Needed)
Fiber Count: 4-288cores Installation: Overhead & Duct
Drum Length: 5KM Or Customized Product Name: GYFTY Outdoor Fiber Cable
Application: Outdoor Tensile Strength: (long/short Term): 600/1500N
Steel Diameter: 0.8mm *2 Jacket Color: Black,Customized
Tube Color: Standard Spectrum Leading Time: 10 Working Days
Water Blocking: Dry Water Blocking Strength Member: Steel Wire
Factory: Yes Wire Core Material: Optical Fiber
Cable Weight: 100kg/km Tight Buffer Type: 0.6/0.9mm PVC/LSZH Tight Buffer
Steel Wire: 0.7/0.8/1.0mm Cable Type: Single-mode
Conductor: Outdoor Optical Cable

Product Description

High Quality Outdoor Single Mode Self-supporting fiber cables 24F G652D fiber optic cable GYFTY



Product Description





GYFTY Fiber Optic Cable is commonly used in areas with high lightning risk, power transmission systems, and strong electromagnetic interference. Known as a self-supporting cable, it doesn’t need external support due to its central metallic core. This feature has significantly increased its market demand. Currently, GYFTY Fiber Optic Cable is one of the best options for high-voltage power environments.

Features

  • It offers excellent mechanical properties and temperature stability.
  • The loose tube material is water-resistant and high-strength.
  • Special ointment is used to protect the optical fibers.
  • It’s resistant to compression and the PE sheath provides strong UV protection.
  • With its small diameter and lightweight design, it's easy to install.

Fiber Type





OS2 9/125 G652D /OM1 62.5/125μm Multimode – OM2 50/125μm Multimode – 10G OM3 50/125μm Multimode – 10G OM4 50/125μm Multimode (Other Fiber available Too)




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 8.8 88

10
Times
Diameter

















20
Times
Diameter

















 1500 800 1000 500
32-36 9.0 95 1500 800 1000 500
38-60 9.2 98 1500 800 1000 500
62-72 9.5 105 1500 800 1000 500
74-96 10.5 118 1500 1000 1000 500
98-120 11.8 145 2000 1500 1000 500
122-144 14.2 165 2000 1500 1000 500
146-216 16.3 225 2000 1500 1000 500
218-240 18.5 305 2000 1500 1000 500
242-288 22.7 395 2500 2000 1000 500



Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788

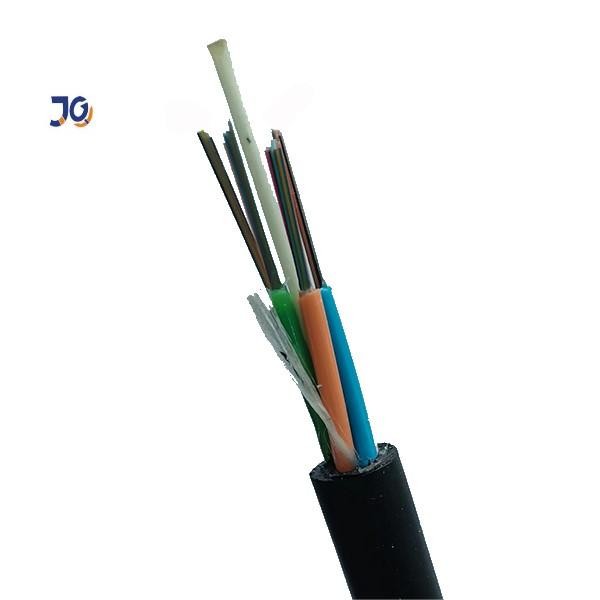

Detail product pictures

GYFTY Fiber Optic Cable Self Supporting 12 48 Core Duct Direct Burial Underground 0



GYFTY Fiber Optic Cable Self Supporting 12 48 Core Duct Direct Burial Underground 1

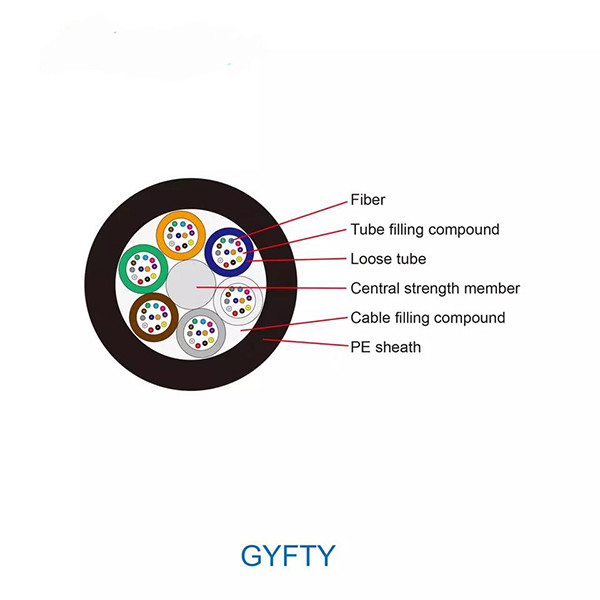

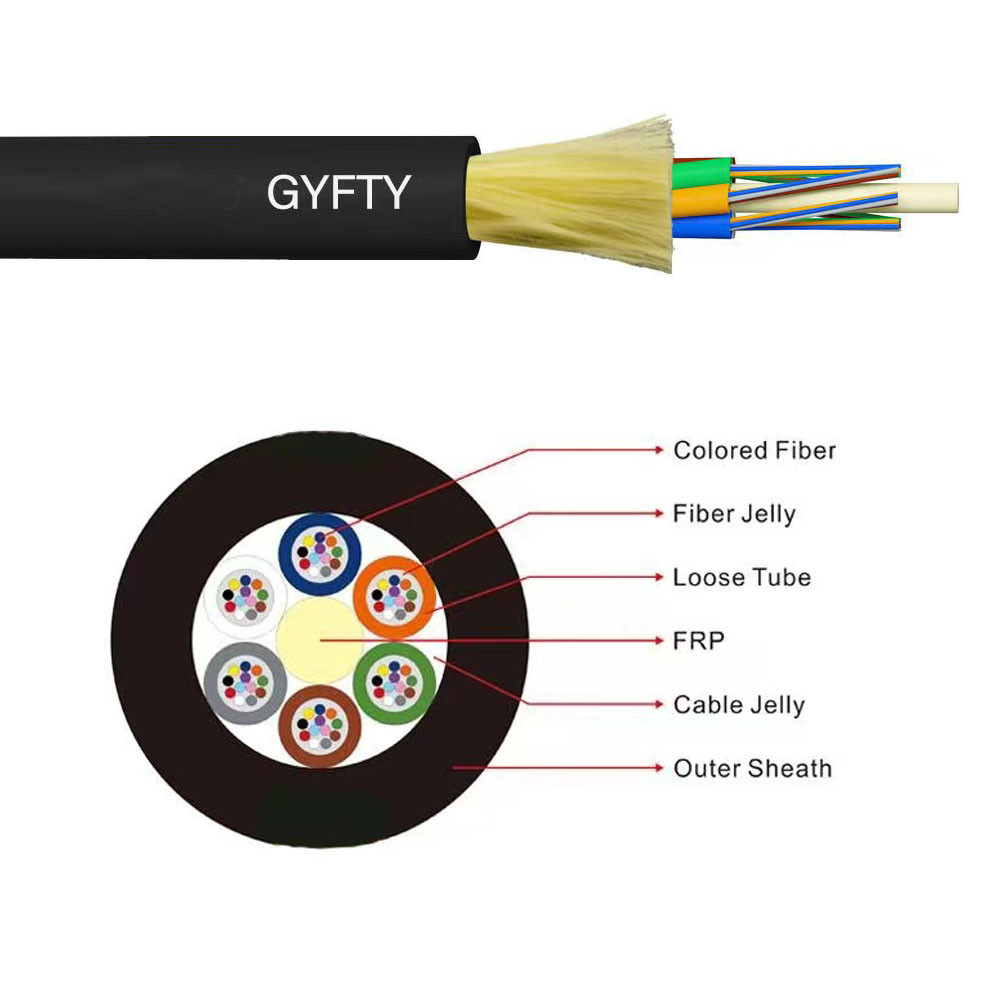

                                   Picture shows about the GYFTY-48 C











FAQ



  1. Are you factory direct?
    Yes, we are a professional cable manufacturer specializing in Fiber Optic Cables, MPO Breakout Cables, and Fiber Optic Patch Cords. Our products are mainly exported to Europe, South America, and other regions.

  2. What are your main products?
    We offer outdoor and indoor fiber optic cables, FTTH drop cables, ADSS, indoor armored patch cords, and various optical patch cords (SC, LC, FC, ST, MTP, MPO).

  3. What is your product warranty?
    We offer a 20-year guarantee for our fiber optic cables.

  4. Do you have certificates for raw materials?
    Yes, we have long-term partnerships with qualified ISO9001 and ROHS-certified raw material suppliers.
