GYFTY Fiber Optic Cable Outdoor FRP Anti-Rodent Optical Cable Single Mode 24F G652D
GYFTY Fiber Optic Cable Outdoor FRP Anti-Rodent Optical Cable Single Mode 24F G652D
GYFTY Fiber Optic Cable Outdoor FRP Anti-Rodent Optical Cable Single Mode 24F G652D GYFTY Fiber Optic Cable Outdoor FRP Anti-Rodent Optical Cable Single Mode 24F G652D GYFTY Fiber Optic Cable Outdoor FRP Anti-Rodent Optical Cable Single Mode 24F G652D GYFTY Fiber Optic Cable Outdoor FRP Anti-Rodent Optical Cable Single Mode 24F G652D
Contact Now

GYFTY Fiber Optic Cable Outdoor FRP Anti-Rodent Optical Cable Single Mode 24F G652D

Minimum Order Quantity : 10 km Packaging Details : wooden drum
Delivery Time : 8 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 300KM Per day
Place of Origin: China Brand Name: JQ/ Customized
Certification: ISO9001, FCC, ROHS/CCC Model Number: GYFTY-24F

Detail Information
Fiber Brand: YOFC/Fiberhome/Corning/Fujikura Color: Black
Jacket Metarial: HDPE/MDPE/LSZH Strength Member: FRP(with PE If Needed) Glass Yarn
Fiber Count: 4-288cores Installation: Overhead & Duct & Direct Burial
Drum Length: 5km/3KM Product Name: GYFTY Outdoor Fiber Optic Cable
Application: Network/long Distance Communication Lift Time: 25 Years
Jacket Material: PE Outer Jacket Color: Black
Cable Type: Armored Cable Bending Radius: (long/short Term): 10D/20D (mm)
Laying Ways: Pipeline/Overhead/Direct Buried/Duct Steel Wire: 0.7/0.8/1.0mm
Strength Member: Steel Wire Fiber Count: 12
Number Of Cores: 36 Cores Tight Buffer Type: 0.6/0.9mm PVC/LSZH Tight Buffer
Tube Color: Standard Spectrum Strengthen Member: Steel Wire
Outer Diameter: 6/7/8mm Armoured: Yes

Product Description

High Quality Outdoor SM fiber cables 24F G652D fiber optic cable GYFTY



Product Description





The GYFTY Fiber Optic Cable is a type of fiber optic cable commonly used in areas prone to thunderstorms, power transmission systems, and locations with significant electromagnetic interference. It is known as a self-supporting fiber optic cable due to its central metallic component, which eliminates the need for external support. This unique feature has led to a rapid increase in demand for the cable. Currently, the GYFTY Fiber Optic Cable is considered one of the most suitable options for use in high-voltage power environments.



Features

  • The cable offers excellent mechanical properties and temperature stability.
  • The loose tube material is highly resistant to water and has strong durability. It is filled with a special gel that provides crucial protection for the optical fibers.
  • The cable also features strong resistance to compression.
  • The PE sheath offers effective protection against ultraviolet radiation.
  • Additionally, its small diameter and light weight make it easy to install.

Fiber Type





OS2 9/125 G652D /OM1 62.5/125μm Multimode – OM2 50/125μm Multimode – 10G OM3 50/125μm Multimode – 10G OM4 50/125μm Multimode (Other Fiber available Too)




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 8.8 88

10
Times
Diameter

















20
Times
Diameter

















 1500 800 1000 500
32-36 9.0 95 1500 800 1000 500
38-60 9.2 98 1500 800 1000 500
62-72 9.5 105 1500 800 1000 500
74-96 10.5 118 1500 1000 1000 500
98-120 11.8 145 2000 1500 1000 500
122-144 14.2 165 2000 1500 1000 500
146-216 16.3 225 2000 1500 1000 500
218-240 18.5 305 2000 1500 1000 500
242-288 22.7 395 2500 2000 1000 500



Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788





Detail product pictures

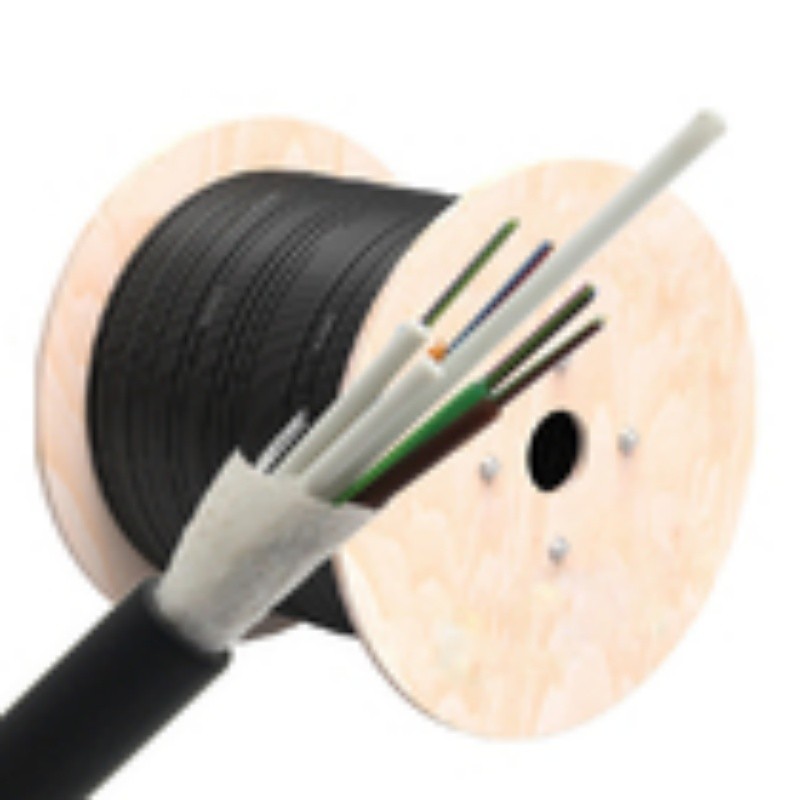

GYFTY Fiber Optic Cable Outdoor FRP Anti-Rodent Optical Cable Single Mode 24F G652D 0

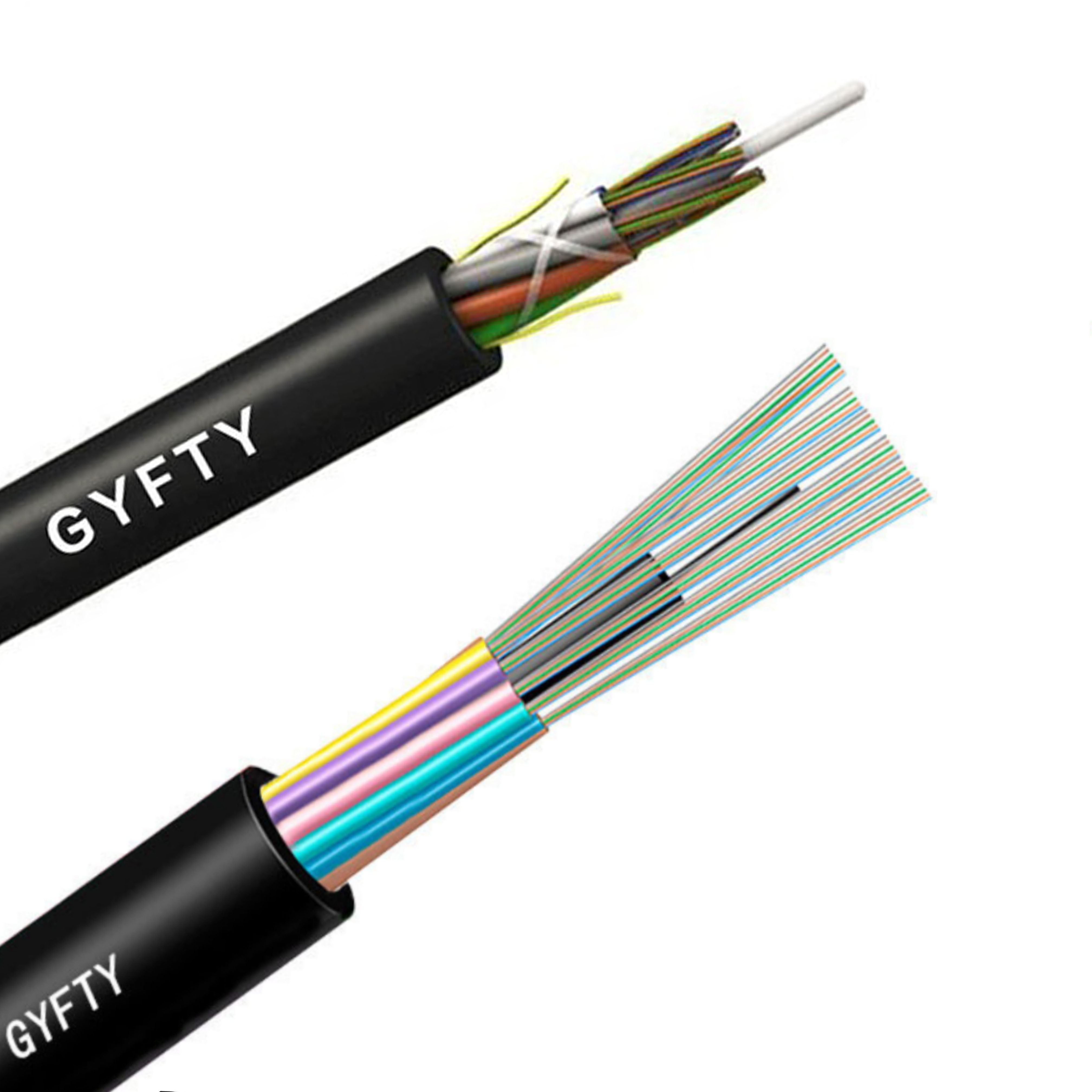

GYFTY Fiber Optic Cable Outdoor FRP Anti-Rodent Optical Cable Single Mode 24F G652D 1

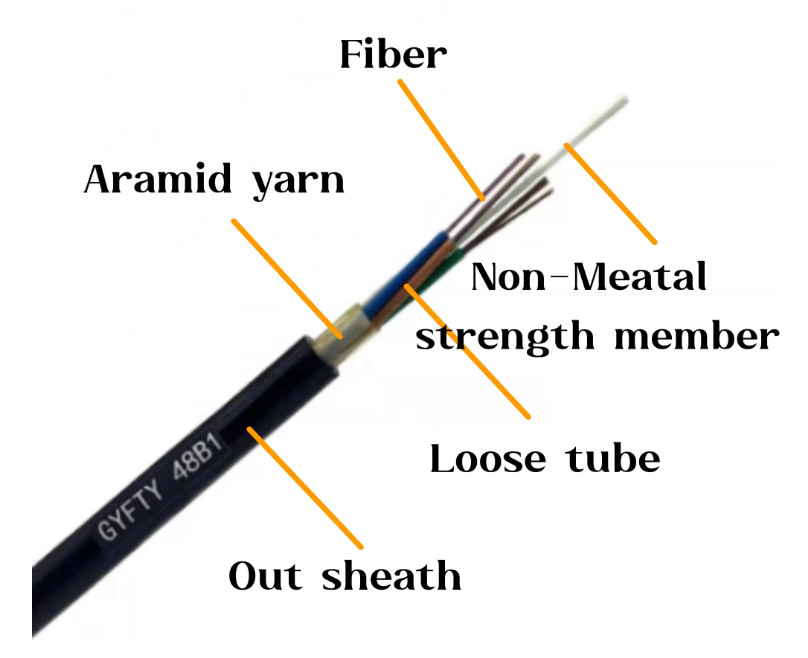

                                   Picture shows about the GYFTY-48 C











FAQ



  1. Are you factory direct?
    Yes, we are a professional manufacturer specializing in Fiber Optic Cables, MPO Breakout Cables, and Fiber Optic Patch Cords. Our products are primarily exported to Europe, South America, and other regions.

  2. What are your main products?
    We offer a wide range of products, including outdoor and indoor fiber optic cables, FTTH drop cables, ADSS cables, indoor armored patch cords, optical patch cords, and connectors (Sc, LC, FC, ST, MTP, MPO).

  3. What is the product quality guarantee period?
    We provide a 20-year guarantee on our fiber optic cables.

  4. Do you have certificates for raw materials?
    Yes, we maintain long-term partnerships with ISO9001 and ROHS-certified raw material suppliers.
