GYFTY Outdoor Duct Laying Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket

Contact Now

GYFTY Outdoor Duct Laying Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket

Minimum Order Quantity :	10 km	Packaging Details :	wooden drum
Delivery Time :	8 days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	300KM Per day

Place of Origin:	China	Brand Name:	JQ/ Customized
Certification:	ISO9001, FCC, ROHS/CCC	Model Number:	GYFTY-24F

Detail Information
Fiber Brand:	YOFC/Fiberhome/ Corning/Fujikura	Color:	Black Color
Jacket Metarial:	MDPE/HDPE/LSZH	Strength Member:	FRP(with PE If Needed)
Fiber Count:	4-288cores	Installation:	Overhead & Duct
Drum Length:	5KM Or Customized	Product Name:	GYFTY Outdoor Fiber Cable
Application:	Network/long Distance Communication	Rodent Protection:	Yes
Number Of Conductors:	≥ 10	Lead Time:	3 To 5 Days
Armoured:	Yes	Armor:	Spiral Steel Wire
Life Time:	30 Years	Strenght Member:	FRP
Package:	Wooden Drum	Outer Sheath:	PE
Cable Type:	Loose Tube	Wave Length:	1310-1550
Overall Diameter:	9.5mm	Inner Armor:	Steel Tape Or Aluminum Tape
Optical Fiber:	Corning Or YOFC	Sheath Material:	PE
Highlight:	24 Core Duct Fiber Optic Cable , HDPE Jacket Duct Fiber Optic Cable , Single Mode Duct Fiber Optic Cable

Product Description

High Quality Outdoor SM fiber cables 24F G652D fiber optic cable GYFTY

Product Description

GYFTY Fiber Optic Cable is designed for areas with frequent thunderstorms, power transmission systems, and high electromagnetic interference. It’s a self-supporting cable with a central metallic component, eliminating the need for external support. This unique feature has significantly increased its market demand. Currently, GYFTY Fiber Optic Cable is among the best options for use in high-voltage power environments.

Features

It offers excellent mechanical properties and temperature stability.
The loose tube is made of high-strength, water-resistant material and is filled with a special gel to protect the fibers.
It has strong compression resistance, while the PE sheath provides effective UV protection.
With a small diameter and lightweight design, it is easy to install.

Fiber Type

OS2 9/125 G652D /OM1 62.5/125μm Multimode – OM2 50/125μm Multimode – 10G OM3 50/125μm Multimode – 10G OM4 50/125μm Multimode (Other Fiber available Too)

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

Fiber Count	Diameter (MI)	Weight (KG/KMI)	Min.Bend Radius		Mlin.Tension (N)		Crush (N/100MMl)
Fiber Count	Diameter (MI)	Weight (KG/KMI)	Static	Dynamic	Long Term	Short Term	Long Term	Short Term
2-30	8.8	88	10 Times Diameter	20 Times Diameter	1500	800	1000	500
32-36	9.0	95			1500	800	1000	500
38-60	9.2	98			1500	800	1000	500
62-72	9.5	105			1500	800	1000	500
74-96	10.5	118			1500	1000	1000	500
98-120	11.8	145			2000	1500	1000	500
122-144	14.2	165			2000	1500	1000	500
146-216	16.3	225			2000	1500	1000	500
218-240	18.5	305			2000	1500	1000	500
242-288	22.7	395			2500	2000	1000	500

Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788

Detail product pictures

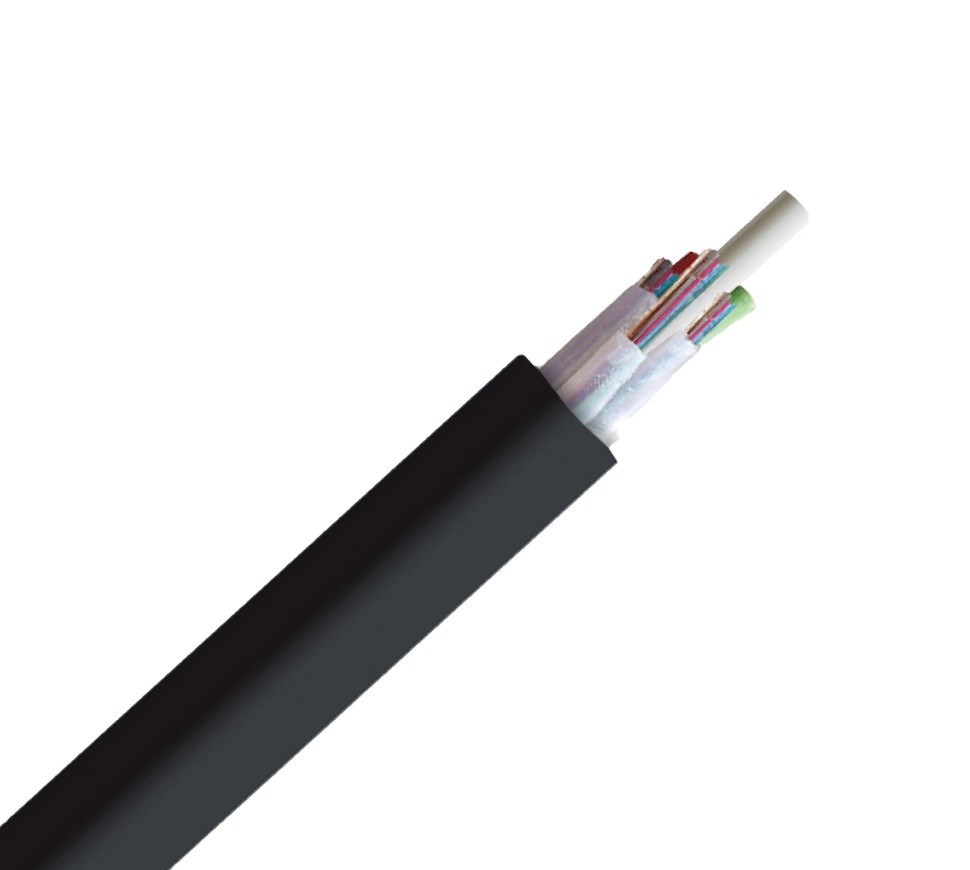

GYFTY Outdoor Duct Laying Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket 0

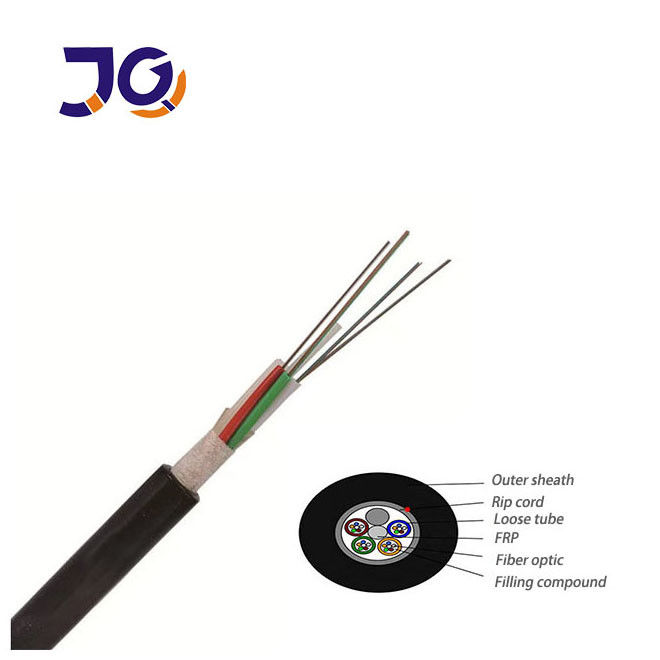

GYFTY Outdoor Duct Laying Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket 1

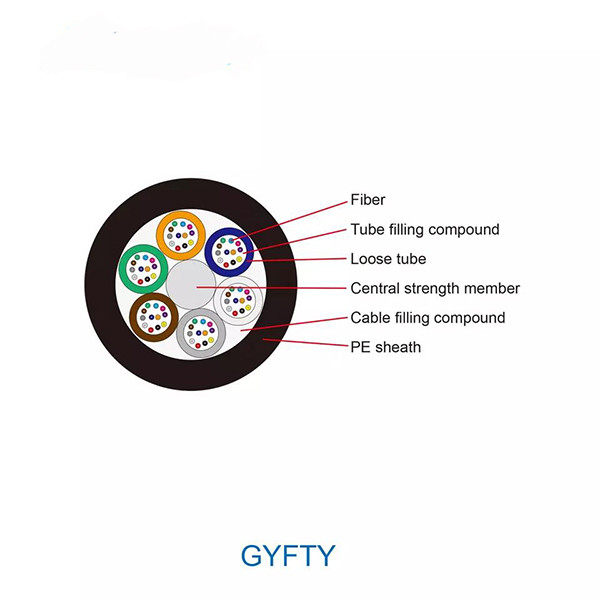

Picture shows about the GYFTY-48 C

FAQ

Are you factory direct?

Yes, we are a professional cable manufacturer specializing in Fiber Optic Cables, MPO Breakout Cables, and Patch Cords, with products mainly exported to Europe, South America, and other regions.
What are your main products?
1. Outdoor and indoor fiber optic cables
2. FTTH Drop cables
3. ADSS cables
4. Indoor armored patch cords
5. Optical patch cords (SC, LC, FC, ST, MTP, MPO)
What is the product quality guarantee period?

We offer a 20-year guarantee for our fiber optic cables.
Do you have certificates for raw materials?

Yes, we maintain long-term partnerships with certified ISO9001 and ROHS-compliant raw material suppliers.
