4-Core Hybrid OPLC Fiber Optic Cable with Copper Wires

2km
MOQ
195USD~910usd
Price
4-Core Hybrid OPLC Fiber Optic Cable with Copper Wires
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Telecommunication/Data Center/FTTH
Number Of Conductors: 2 Or 3 Or 4
Length: 2km 3km Or As Required
Jacket Material: PE/HDPE/LSZH/MDPE
Name: Hybrid OPLC Fiber Optic Cable
Copper Material: 100% Pure Copper
Conductor Material: PVC/FRP
Fiber Type: G652D/ G657A1/G657A2
Jacket Color: Black/red
Amored Material: Aluminum Tape,Steel Tape
Fiber Optic Connector Color: Blue/Green/Aqua/Black
Strength Member: Steel Wire
Oem: Yes
Connection Structure: Composite Cable
Central Strength Member: FRP
Conductor: Copper CCA And CCS
Fiber Count: 2-144
Armor: PE Coated Corrugated Steel Tape
Fiber Optic Connector: LC/SC/FC/ST/MPO
Optical Fiber Material: PMMA & Copper Power Wires
Highlight:

4-core hybrid OPLC cable

,

fiber optic cable with copper wires

,

hybrid fiber optic cable with warranty

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JQ or OEM/Customize
Certification: ISO9001 CE ROHS FCC
Model Number: composite fiber cable OPLC
Payment & Shipping Terms
Packaging Details: Wooden drum
Delivery Time: 6 days,it depends on order quantity
Payment Terms: T/T,Alipay, Western Union, L/C
Supply Ability: 10000 km per month
Product Description

What is a Hybrid Cable?

Hybrid Cable, also known as Optical Fibre Composite Low-voltage Cable (OPLC), integrates both power and communication functions into a single structure. It combines low-voltage power cables (rated for 0.6/1kV and below) with fiber optic cables, enabling simultaneous transmission of electricity and data. This dual-purpose cable is ideal for applications requiring both terminal power supply and high-speed information transmission.


Features of Hybrid Cable:

  • Independent Cable Structure: The power and fiber optic components are structurally separated, making installation, routing, and termination easier.

  • Integrated Power and Data: Photoelectric integration eliminates the need for separate wiring, reducing installation time and overall construction costs.

  • Supports Smart Infrastructure: Ideal for smart grid development and fiber-to-the-home (FTTH) deployments in residential complexes and buildings.



More details about a Hybrid Cable

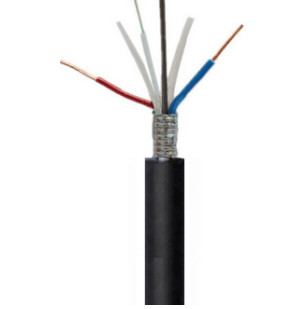

4-Core Hybrid OPLC Fiber Optic Cable with Copper Wires 0



                           GDTA bybrid fiber cable with 2 copper conductors

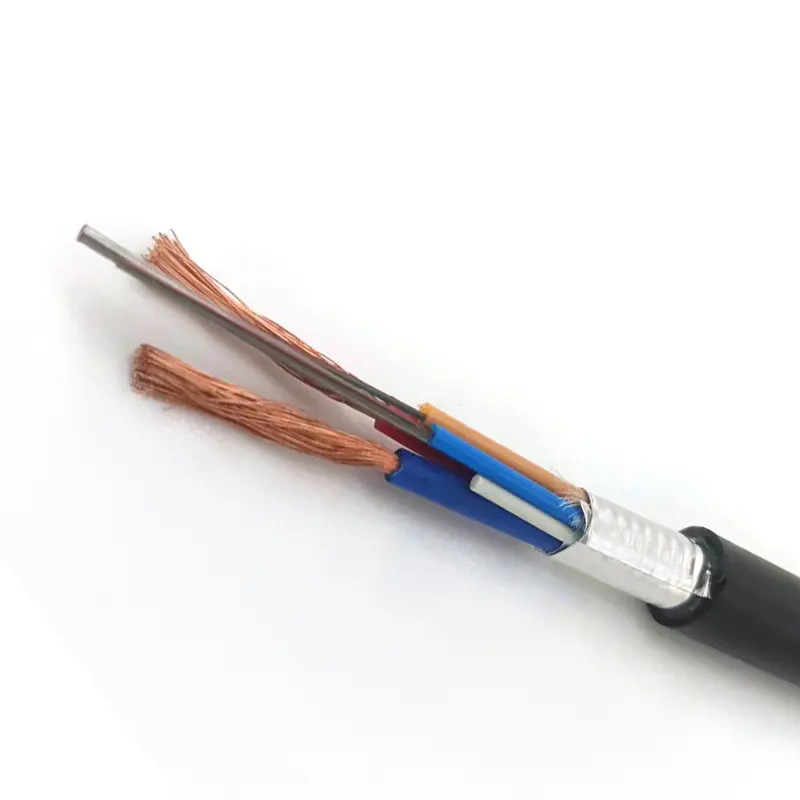

4-Core Hybrid OPLC Fiber Optic Cable with Copper Wires 1



                    GDTS hybrid fiber cable with 2 copper conductors

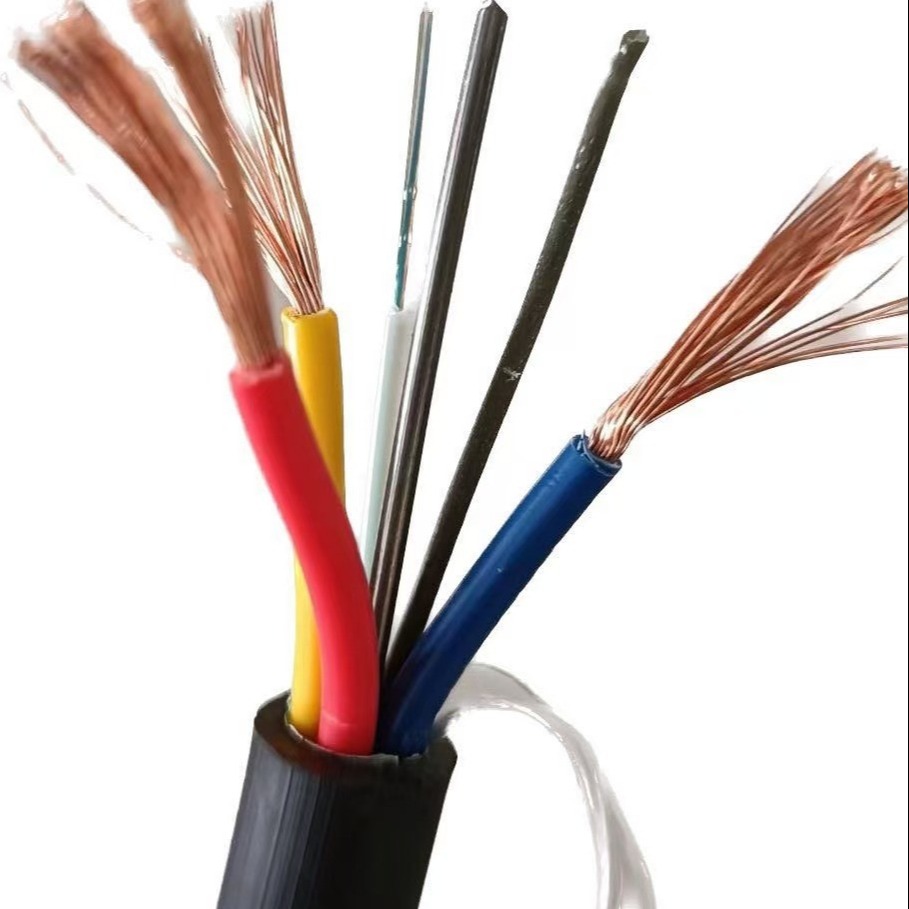

4-Core Hybrid OPLC Fiber Optic Cable with Copper Wires 2

            GDTS hybrid fiber cable with 2*2.5MM² copper conductors





  Technical parameter

Code Name Cable Cores Diameter (mm) Copper Wire (mm²) Linear Mass (kg/km) Tensile (N) Short Term Tensile (N) Long Term Crush (N) Short Term Crush (N) Long Term Bending Radius Short Term Bending Radius Long Term
OPLC-2*0.5 6~24 10.0 2*0.5 125.0 1500 600 1000 300 20D 10D
OPLC-4*0.5 6~24 10.0 4*0.5 130.0 1500 600 1000 300 20D 10D
OPLC-2*0.75 6~24 10.0 2*0.75 128.0 1500 600 1000 300 20D 10D
OPLC-4*0.75 6~24 10.0 4*0.75 135.0 1500 600 1000 300 20D 10D
OPLC-2*1.0 6~24 10.0 2*1.0 130.0 1500 600 1000 300 20D 10D
OPLC-4*1.0 6~24 12.0 4*1.0 150.0 1500 600 1000 300 20D 10D
OPLC-2*1.5 6~24 12.0 2*1.5 140.0 1500 600 1000 300 20D 10D
OPLC-4*1.5 6~24 12.0 4*1.5 160.0 1500 600 1000 300 20D 10D
OPLC-2*2.5 6~24 14.5 2*2.5 180.0 1500 600 1000 300 20D 10D
OPLC-4*2.5 6~24 14.5 4*2.5 195.0 1500 600 1000 300 20D 10D
OPLC-2*4 6~24 14.5 2*4 210.0 1500 600 1000 300 20D 10D
OPLC-4*4 6~24 14.5 4*4 240.0 1500 600 1000 300 20D 10D





Packing







4-Core Hybrid OPLC Fiber Optic Cable with Copper Wires 3



FAQ

1. Q: Are you a factory or a trading company?
A: We are a direct manufacturer.

2. Q: What is your minimum order quantity (MOQ)?
A: The MOQ for fiber optic cable is 1 kilometer.

3. Q: Which fiber brands do you use?
A: We use high-quality fiber from YOFC, Fiberhome, and similar brands.

4. Q: Do you accept small orders?
A: Yes, we support small orders, especially for new projects, as we believe all big business starts small.

5. Q: How long is your delivery time?
A: Typically 5–7 days after order confirmation, depending on the quantity.

6. Q: Can you provide customized products with our logo?
A: Yes, OEM service is available.

7. Q: What are your payment terms?
A: We accept T/T, L/C, and Western Union. A 30% deposit is required, with the balance paid before shipment.
