4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires
4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires
4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires 4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires 4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires 4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires
Contact Now

4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires

Minimum Order Quantity : 2km Price : 195USD~910usd
Packaging Details : Wooden drum Delivery Time : 6 days,it depends on order quantity
Payment Terms : T/T,Alipay, Western Union, L/C Supply Ability : 10000 km per month
Place of Origin: Guangdong, China Brand Name: JQ or OEM/Customize
Certification: ISO9001 CE ROHS FCC Model Number: composite fiber cable OPLC

Detail Information
Application: Telecommunication/Data Center/FTTH Number Of Conductors: 2 Or 3 Or 4
Length: 2km 3km Or As Required Jacket Material: PE/HDPE/LSZH/MDPE
Name: Hybrid OPLC Fiber Optic Cable Copper Material: 100% Pure Copper
Conductor Material: PVC/FRP Fiber Type: G652D/ G657A1/G657A2
Highlight:

4-core hybrid fiber optic cable

,

photoelectric fiber optic cable with copper

,

integrated copper wire OPLC cable

Product Description

What is a Hybrid Cable?

A Hybrid Cable (or OPLC - Optical Fibre Composite Low-Voltage Cable) merges power and data transmission in one unit. It pairs low-voltage power lines (≤0.6/1kV) with optical fibers, allowing concurrent delivery of electricity and high-bandwidth signals.

Key Benefits

  • Separate Components: Power and fiber sections are isolated for simplified setup, routing, and connections.
  • Unified Wiring: Combines photoelectric functions to cut installation costs and time by avoiding dual cabling.
  • Smart Applications: Perfect for smart grids, FTTH in homes/buildings, and integrated power-data networks.



Technical parameter

Code Name Cable Cores Diameter (mm) Copper Wire (mm²) Linear Mass (kg/km) Tensile (N) Short Term Tensile (N) Long Term Crush (N) Short Term Crush (N) Long Term Bending Radius Short Term Bending Radius Long Term
OPLC-2*0.5 6~24 10.0 2*0.5 125.0 1500 600 1000 300 20D 10D
OPLC-4*0.5 6~24 10.0 4*0.5 130.0 1500 600 1000 300 20D 10D
OPLC-2*0.75 6~24 10.0 2*0.75 128.0 1500 600 1000 300 20D 10D
OPLC-4*0.75 6~24 10.0 4*0.75 135.0 1500 600 1000 300 20D 10D
OPLC-2*1.0 6~24 10.0 2*1.0 130.0 1500 600 1000 300 20D 10D
OPLC-4*1.0 6~24 12.0 4*1.0 150.0 1500 600 1000 300 20D 10D
OPLC-2*1.5 6~24 12.0 2*1.5 140.0 1500 600 1000 300 20D 10D
OPLC-4*1.5 6~24 12.0 4*1.5 160.0 1500 600 1000 300 20D 10D
OPLC-2*2.5 6~24 14.5 2*2.5 180.0 1500 600 1000 300 20D 10D
OPLC-4*2.5 6~24 14.5 4*2.5 195.0 1500 600 1000 300 20D 10D
OPLC-2*4 6~24 14.5 2*4 210.0 1500 600 1000 300 20D 10D
OPLC-4*4 6~24 14.5 4*4 240.0 1500 600 1000 300 20D 10D

More details about a Hybrid Cable



4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires 0

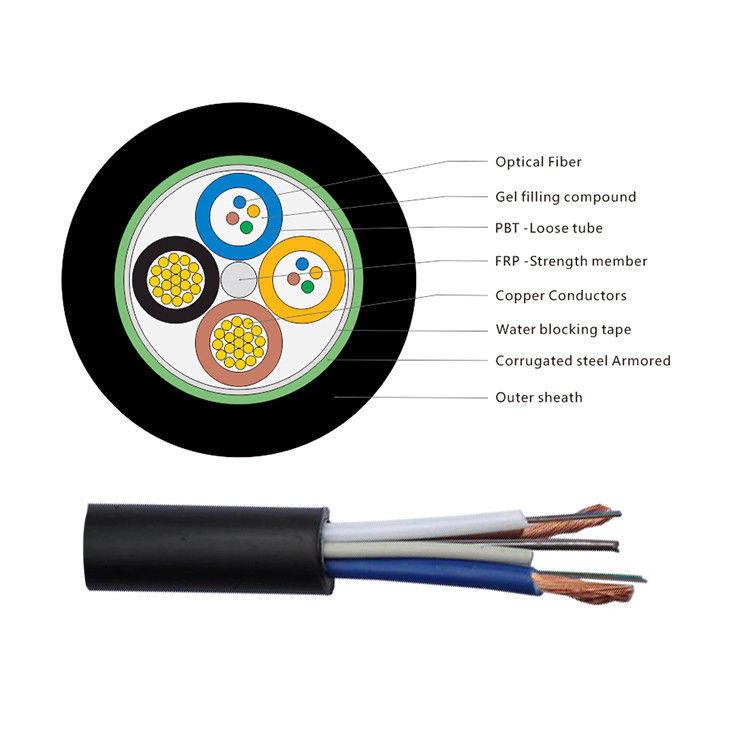

                           GDTA bybrid fiber cable with 2 copper conductors



4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires 1

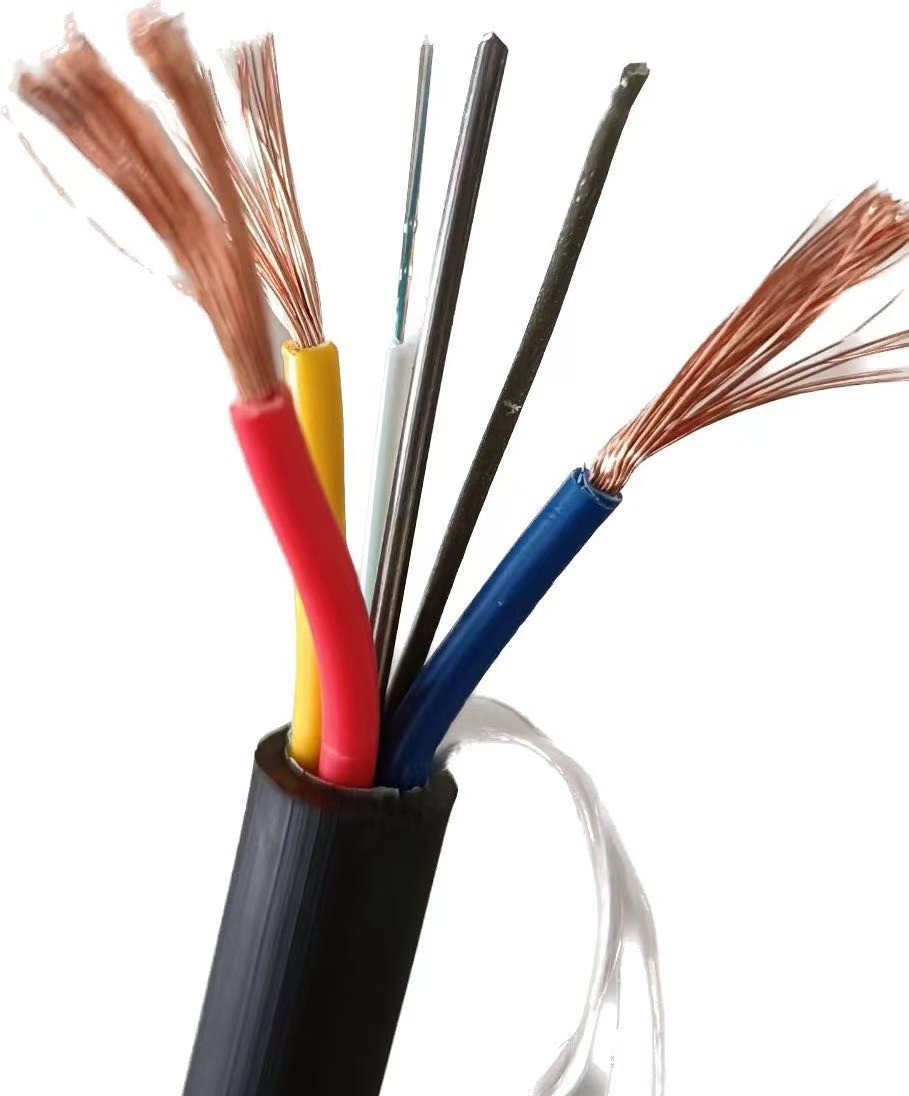

                    GDTS hybrid fiber cable with 2 copper conductors





4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires 2

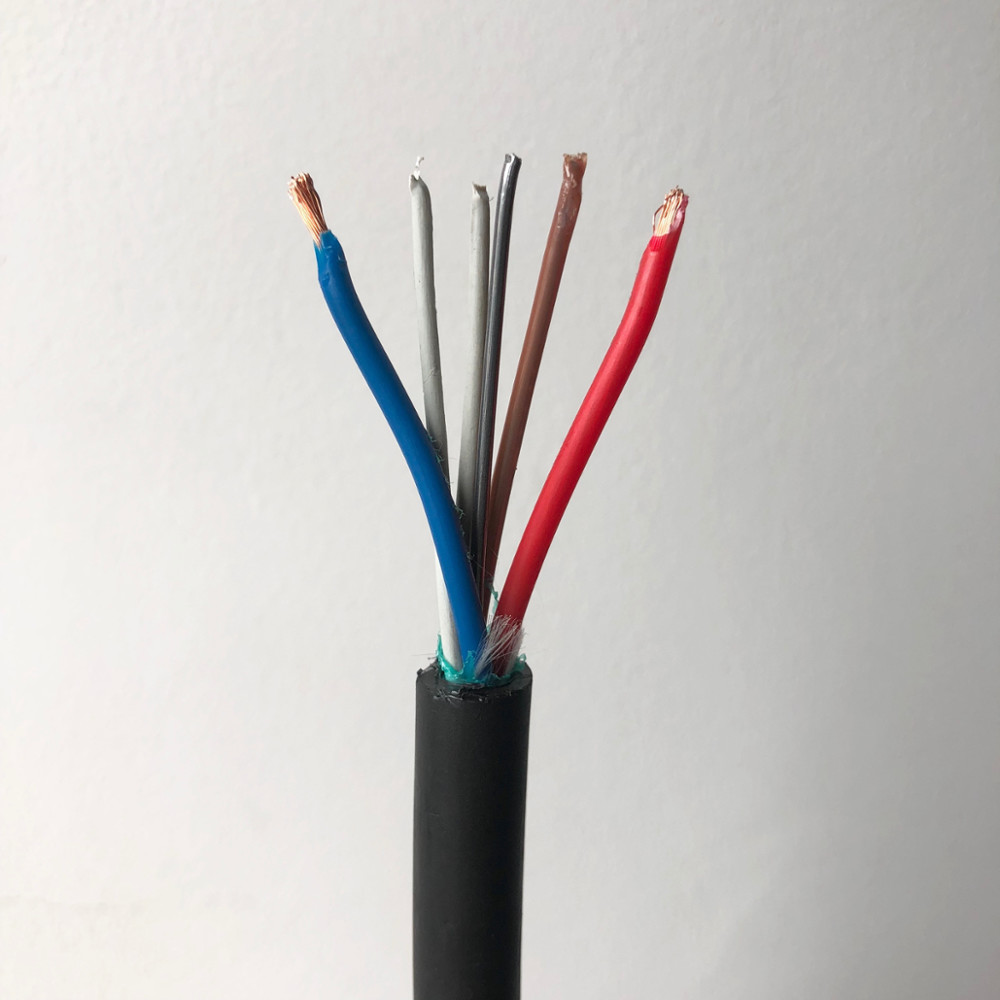

            GDTS hybrid fiber cable with 2*2.5MM² copper conductors



Packing







4-Core OPLC Hybrid Photoelectric Fiber Optic Cable with Integrated Copper Wires 3



Simplified FAQ

  1. Factory or Trading Company? We are a direct manufacturer.
  2. Minimum Order Quantity (MOQ)? 1 km for fiber optic cables.
  3. Fiber Brands Used? High-quality options from YOFC, Fiberhome, and equivalents.
  4. Small Orders Accepted? Yes, we welcome small orders for new projects—big business starts small.
  5. Delivery Time? 5–7 days post-confirmation, based on order size.
  6. Custom Logo Products? Yes, full OEM services available.
  7. Payment Terms? T/T, L/C, or Western Union; 30% deposit, balance before shipment.
