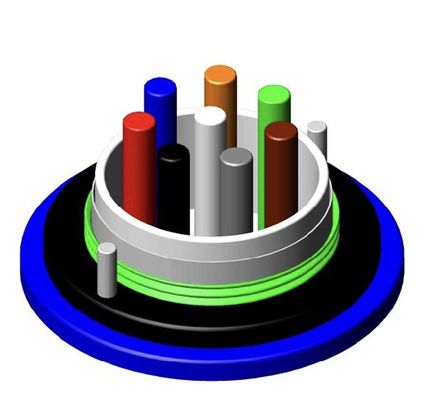

MGXTSV Anti-Rodent Flame-Retardant Mining Fiber Cable
Product Overview
The MGXTSV mining fiber optic cable is engineered for harsh environments such as coal, gold, and iron ore mines. In addition to standard fiber optic performance, it offers enhanced flame-retardant and rodent-resistant properties, ensuring stable communication even in emergencies. It meets safety certification standards issued by the State Coal Mine Safety Supervision Administration and is the only optical cable model officially approved for mining use.
Designed to the stringent specifications of coal mine cables, MGXTSV is suitable for tunnels, shafts, and other demanding underground installations.
Key Features
-
Strong mechanical and thermal resistance.
-
High-strength loose tube for durability and waterproofing.
-
Special filling compound for crush resistance and fiber protection.
-
Comprehensive moisture and rodent protection, including:
-
Steel wire central strength member
-
Loose tube and core filling compounds
-
PSP armor layer
-
Water-blocking materials to prevent longitudinal seepage
-
Blue flame-retardant PVC outer sheath for fire safety.
Applications
-
Backbone, access, and FTTH networks using microtubule technology.
-
Cost-effective upgrades for aging urban infrastructure.
-
Certified to MT386-1995 flame-retardancy standards for coal mine cables.
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Technical Parameters
Fiber
Count |
Diameter
(MI) |
Weight
(KG/KMI) |
Min.Bend Radius |
Mlin.Tension
(N) |
Crush
(N/100MMl) |
| Static |
Dynamic |
Long Term |
Short Term |
Long Term |
Short Term |
| 2-12 |
9.0 |
115 |
10
Times
Diameter
|
20
Times
Diameter
|
1000 |
1500 |
1000 |
1500 |
| 16-24 |
10.5 |
135 |
1000 |
1500 |
1000 |
1500 |
Tips: all the data ablove is reference to our factory, pls contact Philip for more details ,
WA:008613422342788
Detail product pictures
Mining application
factory shows
FAQ
Q1: What warranty do you provide?
We offer a 10-year warranty plus lifetime maintenance support.
Q2: Can you do OEM?
Yes, we can customize products with your logo or label on the product or packaging.
Q3: Are samples free?
Yes, we provide free samples upon request.
Q4: Are you a manufacturer?
Yes, we are a professional fiber optic cable manufacturer producing ADSS, MPO Breakout Cable, Fiber Optic Patch Cord, and more. Our products are exported to Europe, South America, and other markets.
Q5: What are your main products?
Our range includes outdoor fiber optic cables (GYTA33, GYXTC8Y, ADSS, GYTA, GYFTS, ASU, GYXTW), indoor cables, and FTTH drop cables.
Q6: Do you have material certificates?
Yes, our raw materials are sourced from long-term partners with ISO9001 and ROHS certifications.
