Product Description

Product Description

The MGXTSV anti-rodent, flame-retardant mining fiber optic cable is specially engineered for harsh underground environments. It is widely used in coal mines, as well as metallic and non-metallic ore mines (such as gold, iron, and copper). This cable ensures both stable optical transmission and high-level safety protection, making it ideal for demanding mining communication networks.

Key safety enhancements include:

• Flame-retardant LSZH material: Meets IEC 60332-1 vertical flame test standards, ensuring fire safety in underground environments.

• Anti-rodent design: Reinforced sheath with plastic-coated steel strips prevents rodent damage in tunnels and shafts.

• Explosion-proof certification: Compliant with GB 3836 regulations and MA (Mine Safety) certification, guaranteeing intrinsic safety for coal mining operations.

• Industry compliance: MGXTSV specifications follow the standards of China’s State Administration of Coal Mine Safety (SACMS), ensuring reliability and uniform adoption across mining sectors.

Features

• Excellent mechanical strength and wide temperature tolerance

• Water-resistant loose tube filled with special filling gel for fiber protection

• High crush resistance and tensile performance

• Double-sided PSP (plastic-coated steel tape) enhances moisture resistance and rodent protection

• Flame-retardant outer sheath for safe operation in mining and tunnel environments

• Available in multiple core counts to support different network requirements

Applications

• Coal mines, metallic mines, and non-metallic mines (gold, iron, copper, etc.)

• Mining communication networks, monitoring systems, and safety control systems

• Backbone and access networks in underground facilities

• FTTH and FTTB projects requiring enhanced flame-retardant and rodent-proof performance

• Infrastructure upgrades and new installations in hazardous environments

The MGXTSV mining fiber optic cable fully complies with MT386-1995 flame-retardant testing standards for coal mine cables, ensuring long-term reliability, durability, and safety.

Optical Characteristics

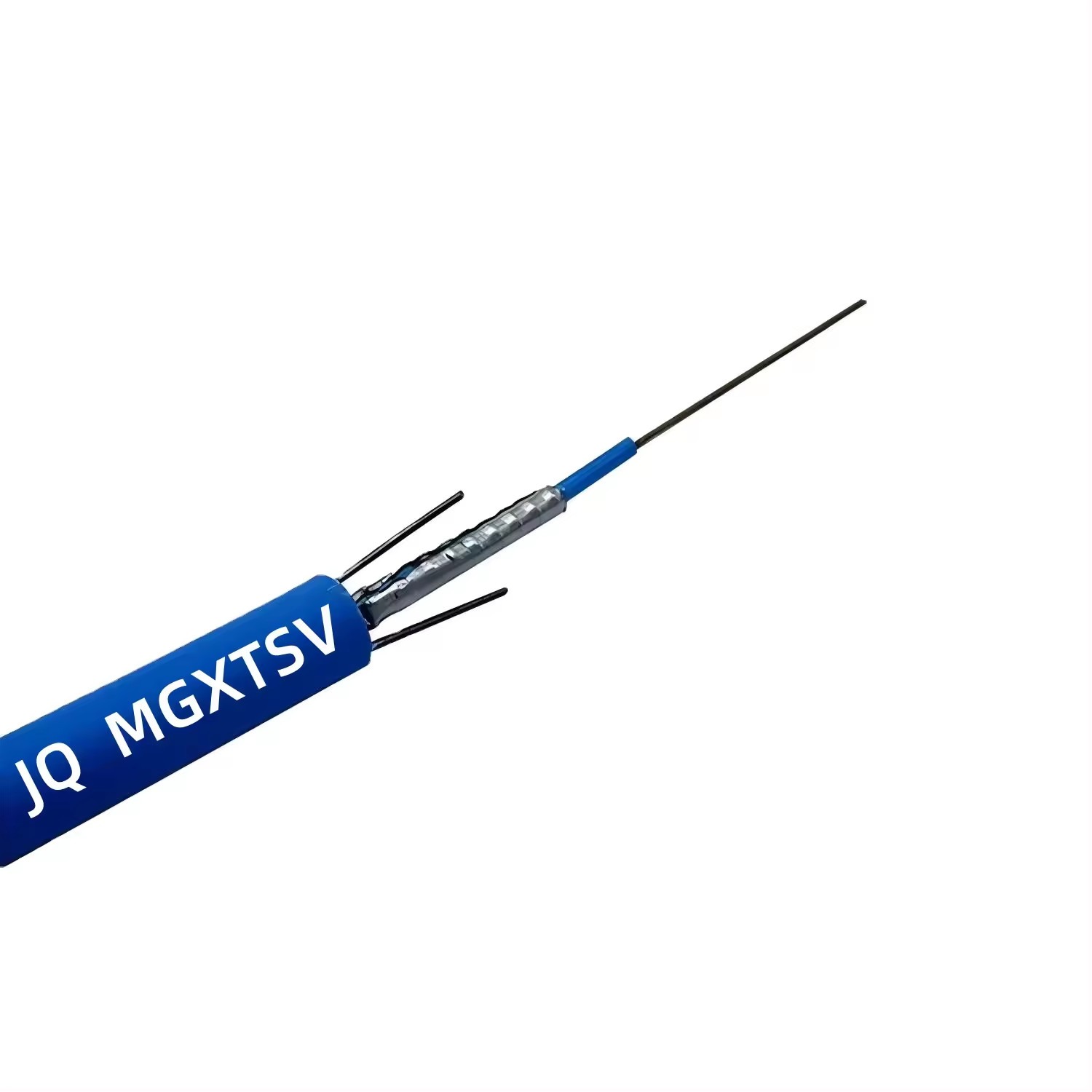

Detail product pictures

                                                           Mining application

   factory shows

FAQ

Q1: What is the warranty period for your products?
A1: We provide a 10-year warranty with lifetime maintenance support for all fiber optic cables.

Q2: Do you offer OEM/ODM services?
A2: Yes, we can customize products with your logo, label, or packaging design according to your requirements.

Q3: Can I get free samples before placing an order?
A3: Yes, free samples are available for quality evaluation. Customers may only need to cover the shipping cost.

Q4: Are you a direct manufacturer?
A4: Yes, we are a professional cable manufacturer, specialized in fiber optic cables such as ADSS, MPO breakout cables, and patch cords. Our products are exported worldwide, including Europe, South America, and other regions.

Q5: What are your main product ranges?
A5: Our main products include:

• Outdoor fiber optic cables: GYTA33, GYXTC8Y, ADSS, GYTA, GYFTS, ASU, GYXTW

• Indoor fiber optic cables

• FTTH drop cables and accessories

Q6: Do you use certified raw materials?
A6: Yes, we work with qualified ISO9001 and RoHS-certified suppliers to ensure stable quality and reliability.
