MGXTSV LSZH Fire Retardant Armored Fiber Optic Cable Mining Duct Telecom

5 km
MOQ
MGXTSV LSZH Fire Retardant Armored Fiber Optic Cable Mining Duct Telecom
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black /blue
Jacket Metarial: LSZH (flame Retardant)
Strength Member: Steel Wire/FRP Glass Yarn
Fiber Count: 2-24 Cores
Installation: Pipe & Underground
Armored: Steel Tape/steel Wires
Product Name: Mining Optical Cable
Fiber: Single Mode G. 652d/G657A1 2
Highlight:

LSZH fire retardant fiber optic cable

,

armored duct fiber optic cable

,

mining telecom fiber optic cable

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JQ/OEM/Customize
Certification: ISO9001, FCC, ROHS/CCC/FCC
Model Number: MGXTSV
Payment & Shipping Terms
Packaging Details: iron drum
Delivery Time: 6 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200KM Per day
Product Description

MGXTSV Anti-Rodent Flame Retardant Mining Fiber Cable

Safety Features

  • Flame Retardant: Halogen-free, meets IEC 60332-1 & MT386-1995.
  • Anti-Rodent: PSP-reinforced sheath resists gnawing.
  • Explosion-Proof: GB 3836 & MA certified.

Key Specs

  • Strong mechanical/temperature resistance.
  • Water-resistant loose tubes with oil paste protection.
  • High crush/pressure tolerance.
  • Moisture-proof PSP armor.
  • Blue PVC outer sheath for fire safety.

Applications For backbone/access networks & FTTH in mines/urban setups—cost-effective microtubule cabling for upgrades.



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber
Count
Diameter
(MI)
Weight
(KG/KMI)
Min.Bend Radius Mlin.Tension
(N)
Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-12 9.0 115



10
Times
Diameter

















20
Times
Diameter

















1000 1500 1000 1500
16-24 10.5 135 1000 1500 1000 1500



Detail product pictures

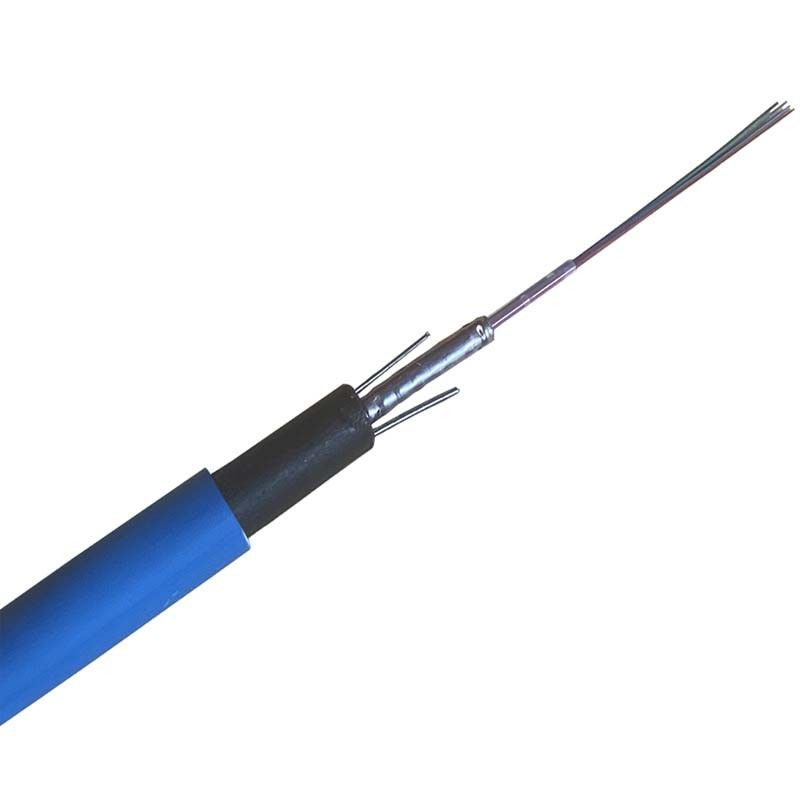

MGXTSV LSZH Fire Retardant Armored Fiber Optic Cable Mining Duct Telecom 0

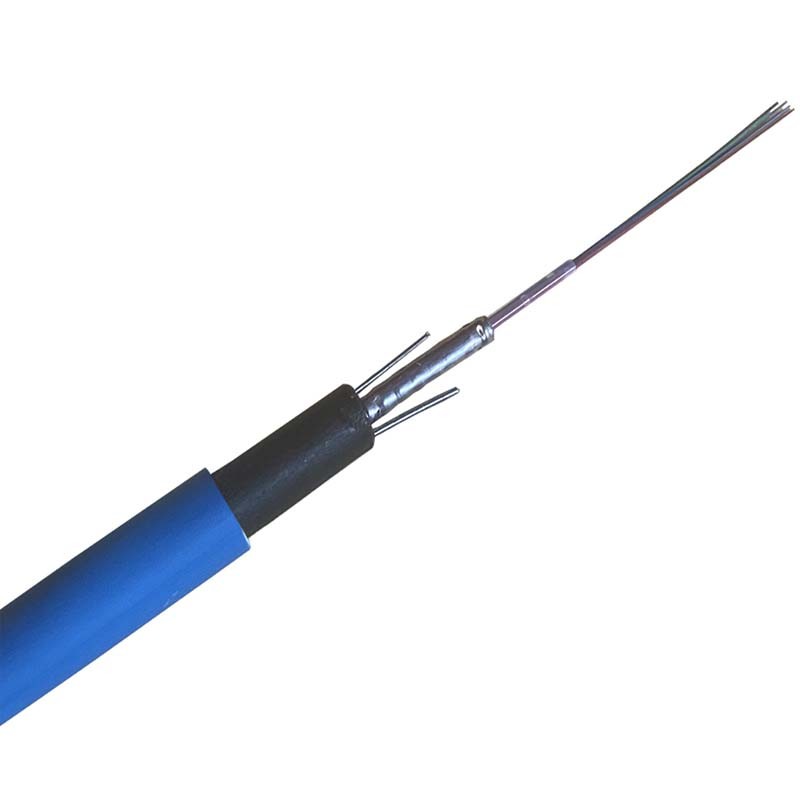

MGXTSV LSZH Fire Retardant Armored Fiber Optic Cable Mining Duct Telecom 1

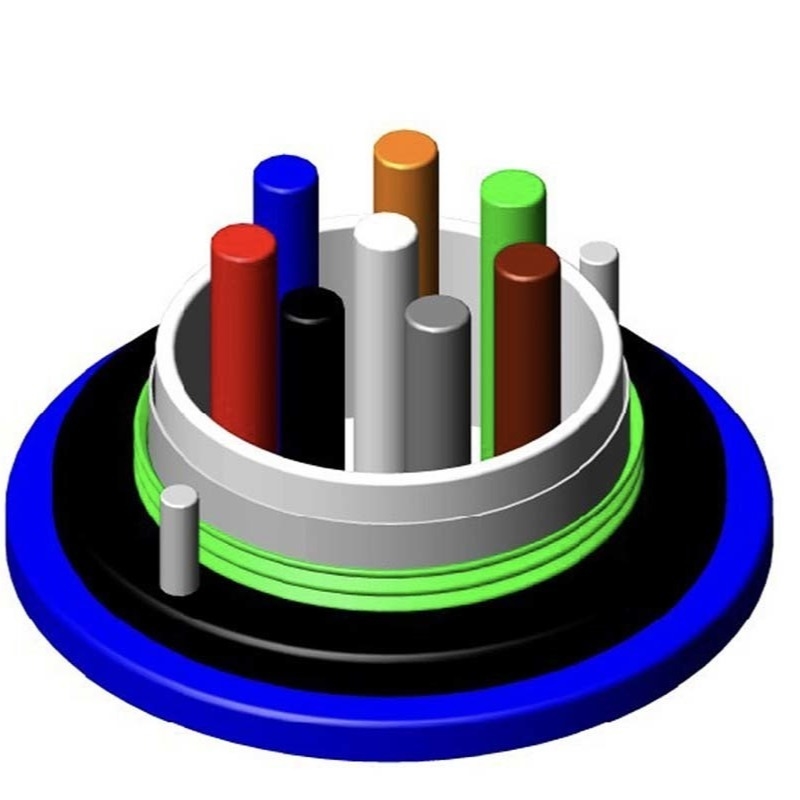

MGXTSV LSZH Fire Retardant Armored Fiber Optic Cable Mining Duct Telecom 2











MGXTSV LSZH Fire Retardant Armored Fiber Optic Cable Mining Duct Telecom 3

FAQ

Q1: What is the product warranty? A: 10-year warranty with lifetime maintenance.



Q2: Can we do OEM for your products? A: Yes, we can print your logo or label on the products or packaging.



Q3: Can you provide free samples? A: Yes, free samples are available from our company.



Q4: Are you a factory direct supplier? A: Yes, we are a professional fiber optic cable manufacturer specializing in ADSS, MPO Breakout Cables, Patch Cords, and more. Our products are exported to Europe, South America, and other regions.



Q5: What are your main products? A: Outdoor cables (e.g., GYTA33, GYXTC8Y, ADSS, GYTA, GYFTS, ASU, GYXTW); indoor cables; FTTH drop cables.



Q6: Do your raw materials have certifications? A: Yes, we partner with ISO9001- and RoHS-certified suppliers.
