96 Core GCYFY GCYFTY Micro Air Blown Fiber Optic Cable for Duct Use

1km
MOQ
96 Core GCYFY GCYFTY Micro Air Blown Fiber Optic Cable for Duct Use
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 48 96 Cores
Fiber Type: Single Mode/Multi Mode
Jacket: PE/PVC/LSZH/HDPE/MDPE
Color: Black Or Orange Or Customized
Product Name: Air-blown Micro Cable
Model Number: GCYFY/GCYFTY
Length: 2km Or Customized Length
Installation: Aerial Or Duct
Highlight:

96 core duct fiber optic cable

,

micro air blown fiber cable

,

duct use fiber optic cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GCYFY/GCYFTY
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30km per day
Product Description

96 Core Micro Air Blown Fiber Optic Cable GCYFY/GCYFTY for Duct Installation



Product Description
GCYFY/GCYFTY Micro Air Blown Fiber Optic Cable adopts a non-metallic, armor-free design. It can be installed by air blowing into pre-laid micro ducts. This technology improves pipeline utilization, simplifies installation, and allows easy future expansion.

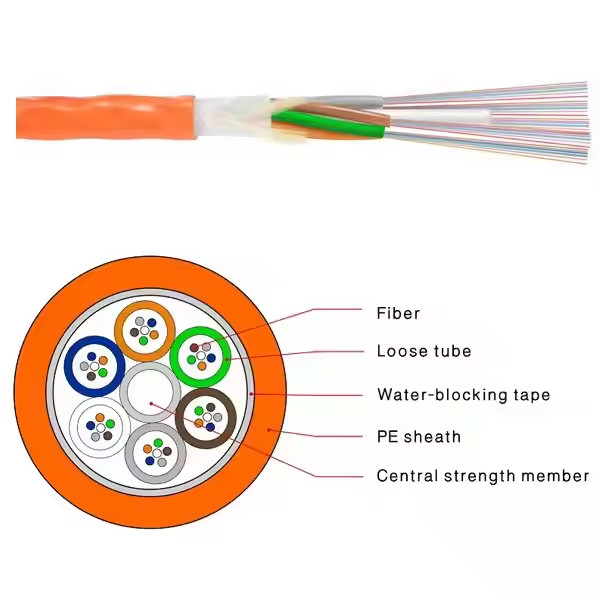

96 Core GCYFY GCYFTY Micro Air Blown Fiber Optic Cable for Duct Use 0







Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%





Fiber & Tube Color

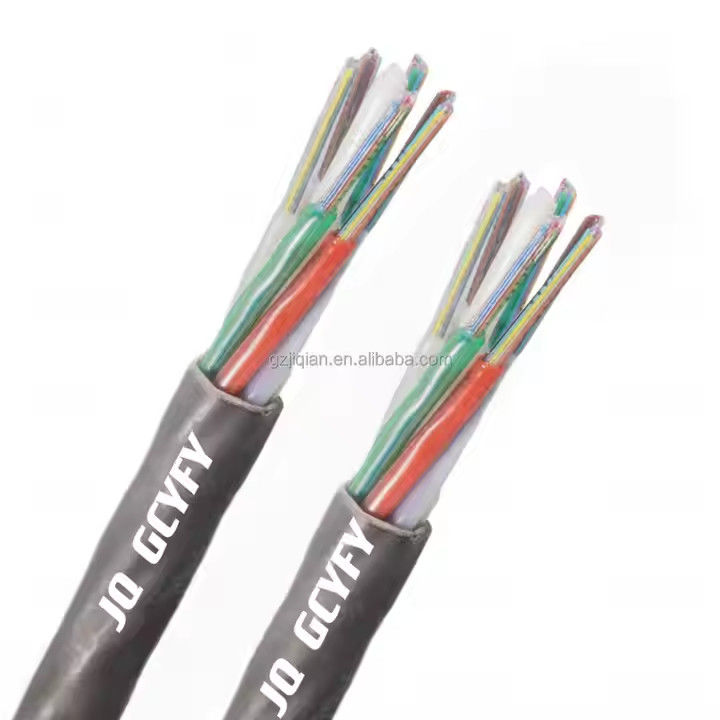

96 Core GCYFY GCYFTY Micro Air Blown Fiber Optic Cable for Duct Use 1



Cable Parameters

# Items Unit Parameters
1 Fiber Count   96
2 No of fiber per tube   12
3 No of loose Tubes   8
4 Loose tube Diameter mm 1.5
5 Central Strength Member mm 2.5
6 Outer Sheath mm 6.6
7 No of Ripcords   1
8 Cable Diameter mm 6.4±0.1
9 Cable Weight kg/km 40
10 Attenuation 1310 nm dB/km ≤0.36dB/km
11 Attenuation 1550 nm dB/km ≤0.22dB/km
12 Chromatic Disperson 1285-1330 nm ps/nm.km ≤3.5
13 Chromatic Disperson 1550 nm ps/nm.km ≤18
14 Cable cut-off wavelength ʎcc ≤1260nm
15 Fiber Cut-off Wavelength mm ≤1470
16 Zero Dispersion   1300~1324nm
17 Zero Dispersion Slope ps/nm2 x km ≤0.092
18 Polarization mode dispersion ps/km 1.0
19 Polarization mode dispersion ps/km 0.3
20 Mode Field Diameter µm 1310 9.2 ± 0.4
21 Mode Field Diameter µm 1550 10.4 ± 0.8
22 Core Cladding Concentricity Error µm ≤0.5
23 Cladding Diameter µm 125±1.0
24 Cladding Non -Circularity % ≤2.0%
25 Coating -Cladding Concentricity Error µm ≤12
26 Primary Coating Diameter µm 125±1.0
27 Primary Coating Material (Uncolored)   245± 10µm
28 Fibre Curl Radius m R≥4
29 Tensile Strength N Installation : 1000
Max. Operation: 600
30 Crush Resistance N/mm 800/100
31 Impact Strength N.m Impact energy:450g*1m; radius of hammer head: 12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.
32 Torsion   Load: 150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.
33 Kink mm 1000N/100mm
34 Min. Bend Radius   Loading 25N,25cycles
35 Installation ˚ C -15˚ C~+60˚ C
36 Operation ˚ C -35˚ C~+70˚ C
37 Storage ˚ C -35˚ C~+70˚ C

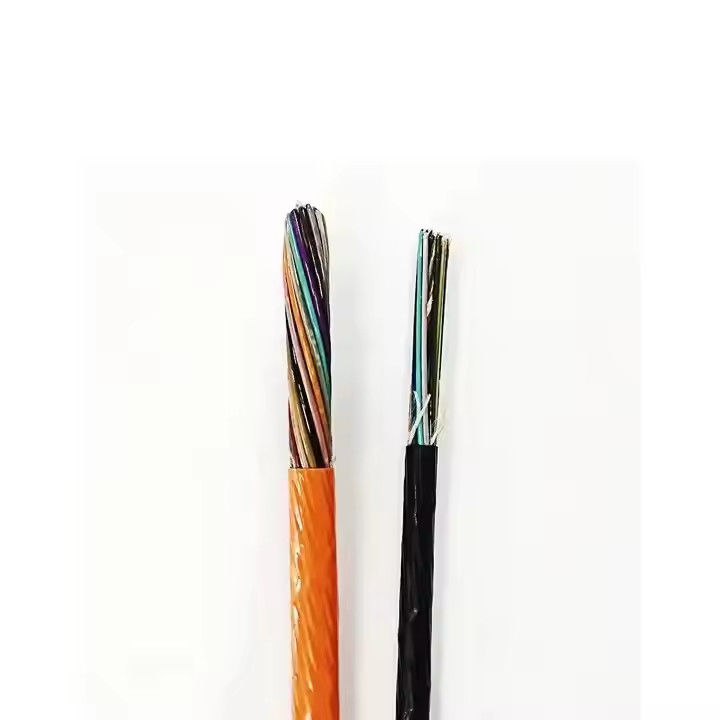

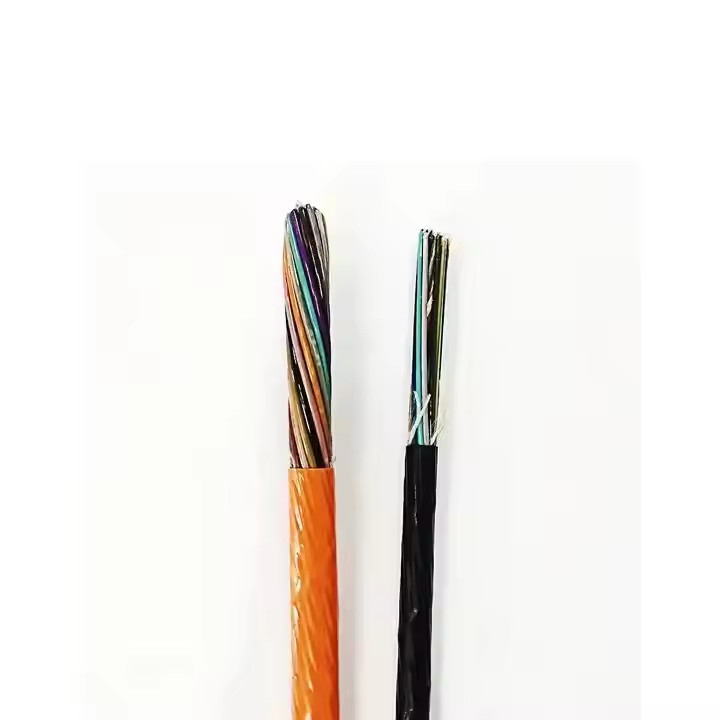

Product Detail

96 Core GCYFY GCYFTY Micro Air Blown Fiber Optic Cable for Duct Use 2





96 Core GCYFY GCYFTY Micro Air Blown Fiber Optic Cable for Duct Use 3
