GYFTY Fiber Optic Cable Self Supporting 12 48 Core Direct Buried Duct Underground Outdoor Cable

10 km
MOQ
GYFTY Fiber Optic Cable Self Supporting 12 48 Core Direct Buried Duct Underground Outdoor Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Brand: YOFC/Fiberhome/ Corning
Color: Black Or Orange Or Customized
Jacket Metarial: PE,HDPE/LSZH
Strength Member: FRP(with PE If Needed)
Fiber Count: 4-288cores
Installation: Overhead & Duct
Drum Length: 5KM Or Customized
Product Name: GYFTY Outdoor Fiber Cable
Highlight:

12 core duct fiber optic cable

,

48 core underground fiber optic cable

,

self supporting outdoor fiber cable

Basic Infomation
Place of Origin: China
Brand Name: JQ/ Customized
Certification: ISO9001, FCC, ROHS/CCC/FCC
Model Number: GYFTY-24F
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300KM Per day
Product Description

High Quality Outdoor Single Mode Self-Supporting Fiber Optic Cable – 24 Core G652D GYFTY

Key Features

  • Strong mechanical performance and excellent temperature resistance

  • Water-blocking, high-strength loose tube to protect fibers

  • Optical fibers filled with special gel for added protection

  • PE outer sheath with UV resistance and anti-compression properties

  • Lightweight, small diameter, easy for installation and overhead/duct/direct burial use

  • Non-metallic design, safe for lightning-prone or high-voltage areas


Available Fiber Types

  • Single Mode: OS2 9/125 G652D / G657A1 / G657A2

  • Multimode: OM1 62.5/125, OM2 50/125, OM3 10G, OM4 10G (other types available on request)


Applications

  • Power transmission lines and utility poles

  • Lightning-intensive areas

  • Outdoor backbone network / FTTH projects

  • Duct, aerial, or direct burial installations




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber
Count
Diameter
(MI)
Weight
(KG/KMI)
Min.Bend Radius Mlin.Tension
(N)
Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 8.8 88

10
Times
Diameter

















20
Times
Diameter

















1500 800 1000 500
32-36 9.0 95 1500 800 1000 500
38-60 9.2 98 1500 800 1000 500
62-72 9.5 105 1500 800 1000 500
74-96 10.5 118 1500 1000 1000 500
98-120 11.8 145 2000 1500 1000 500
122-144 14.2 165 2000 1500 1000 500
146-216 16.3 225 2000 1500 1000 500
218-240 18.5 305 2000 1500 1000 500
242-288 22.7 395 2500 2000 1000 500



Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788





Detail product pictures

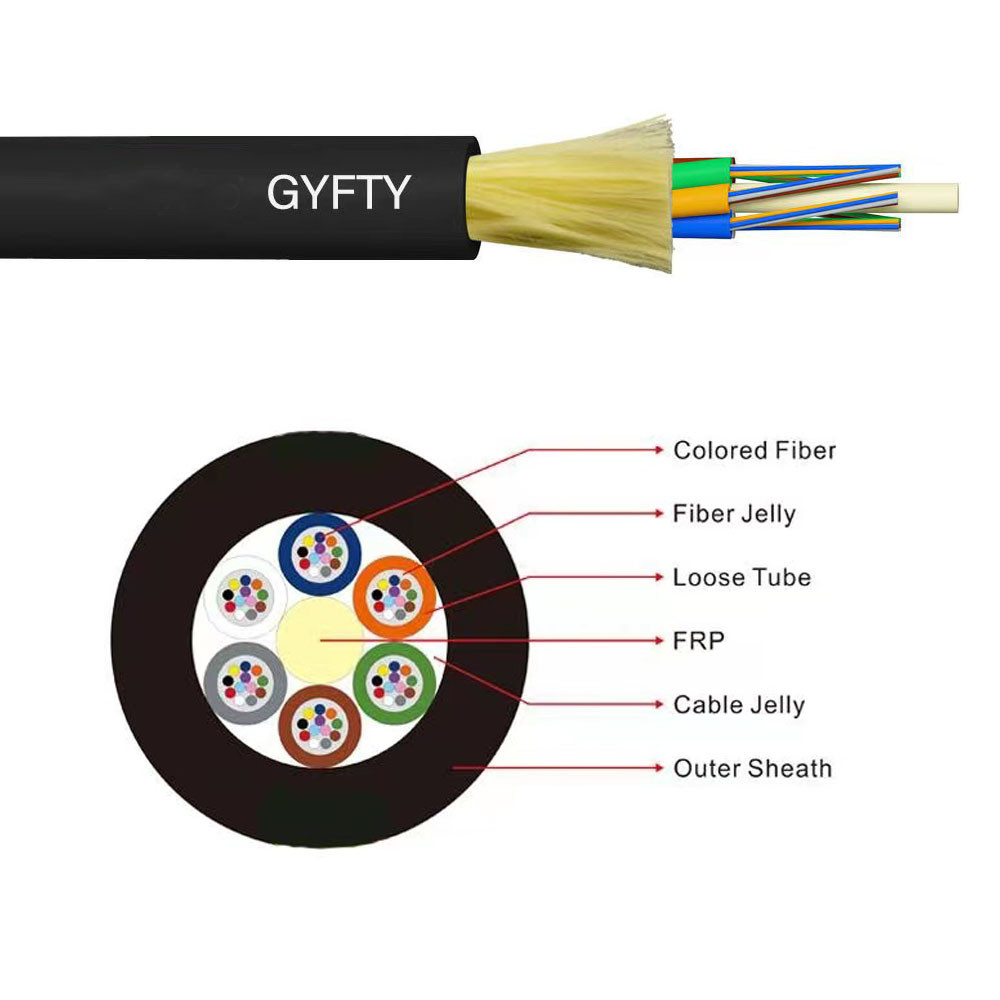

GYFTY Fiber Optic Cable Self Supporting 12 48 Core Direct Buried Duct Underground Outdoor Cable 0

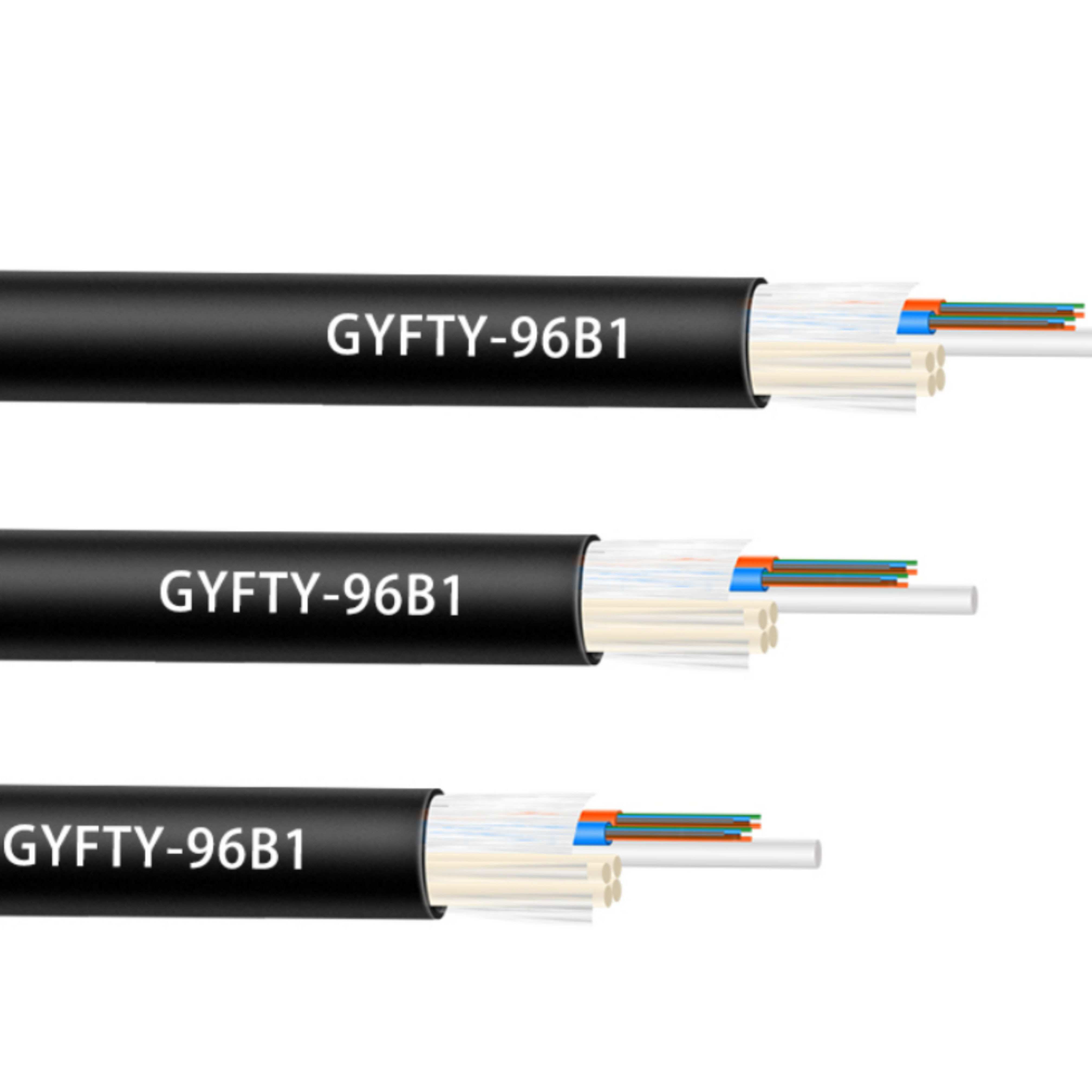

GYFTY Fiber Optic Cable Self Supporting 12 48 Core Direct Buried Duct Underground Outdoor Cable 1

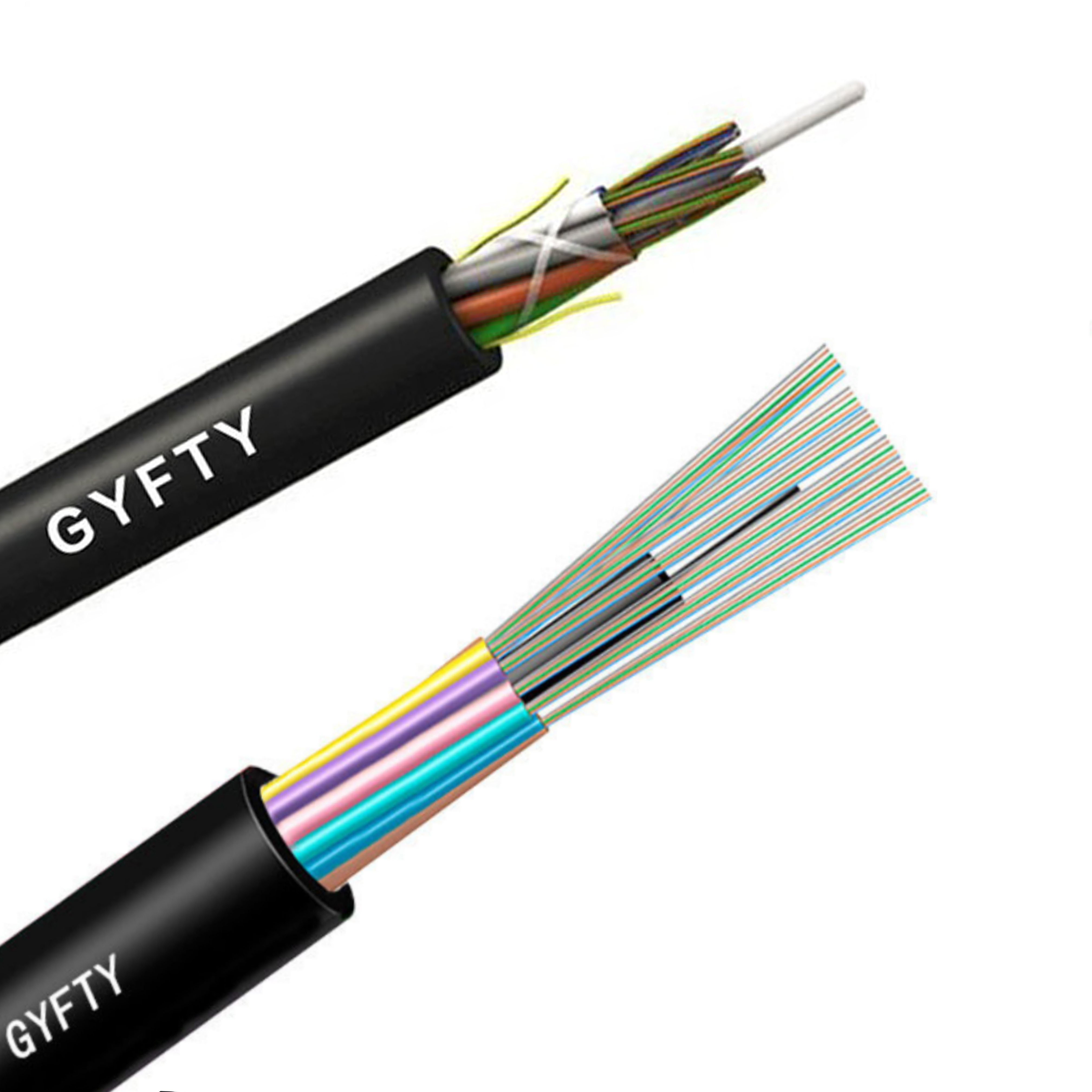

                                   Picture shows about the GYFTY-48 C









FAQ

Q1: Are you a factory?
Yes. We are a direct manufacturer of fiber optic cables, MPO breakout cables, and patch cords, with exports to Europe, South America, and other regions.



Q2: What are your main products?
Outdoor/indoor fiber optic cables, FTTH drop cables, ADSS cables, armored indoor patch cords, and SC/LC/FC/ST/MTP/MPO optical patch cords.



Q3: What is the warranty for your products?
We provide a 20-year warranty for our fiber optic cables.



Q4: Do you have certifications for raw materials?
Yes. All raw materials are sourced from ISO9001 and ROHS-certified suppliers.
