MGXTSV Flame Retardant Duct Fiber Optic Cable Outdoor Underground Mine Single Mode Multi Mode

1km
MOQ
MGXTSV Flame Retardant Duct Fiber Optic Cable Outdoor Underground Mine Single Mode Multi Mode
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket Material: Flame-Retardant LSZH
Fiber Count: 2-24 Core
Structure: Unit Tube
Product Name: Outdoor Optic Fiber Cable
Fiber Type: YOFC/ Corning Or As Request
Application: Aerial,Duct
Color: Blue/Yellow
Module: MGXTSV-12B1
Highlight:

flame retardant duct fiber optic cable

,

outdoor underground fiber optic cable

,

single mode multi mode fiber optic cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: MGXTSV
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 3-5dyas
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

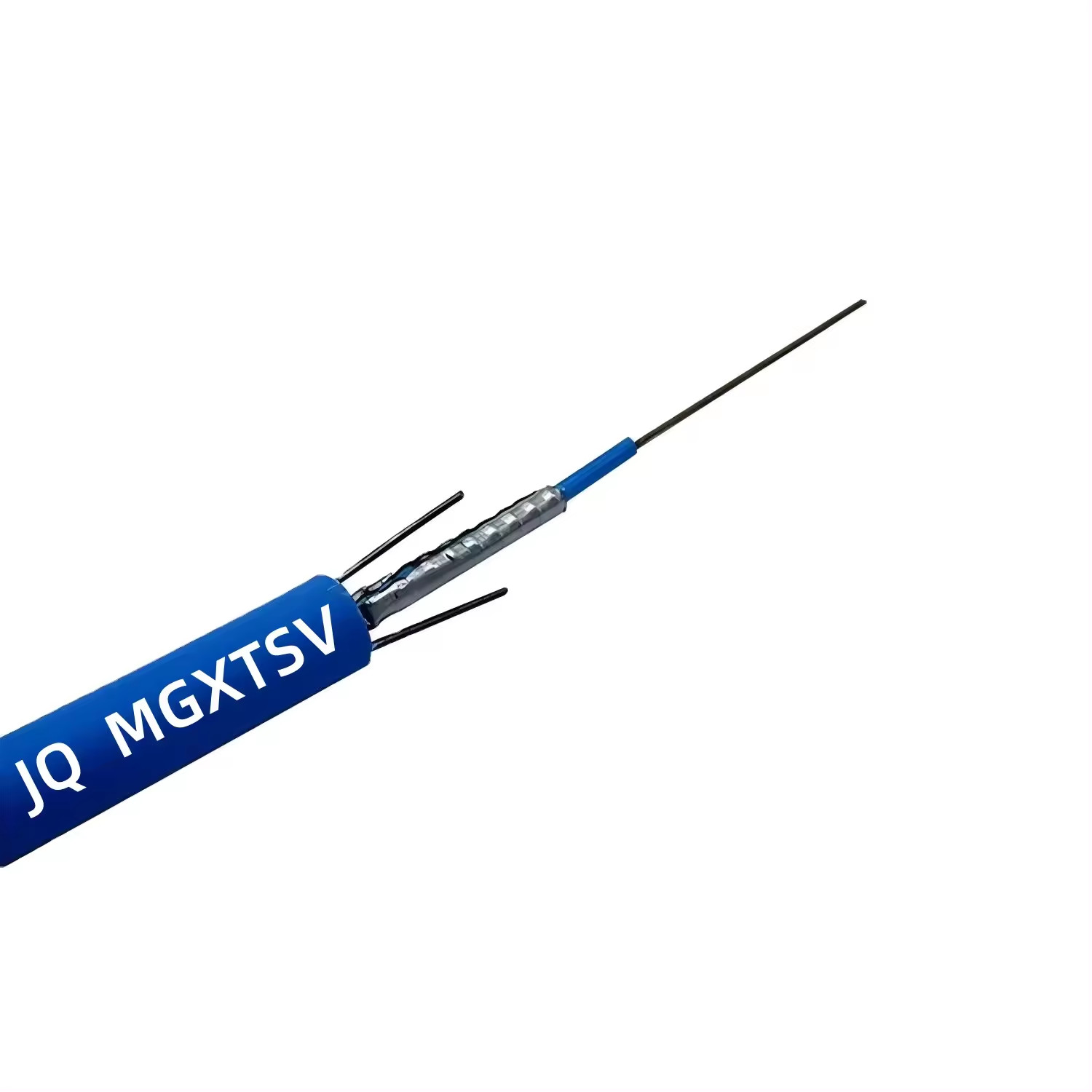

Mine Flame-Retardant Fiber Optic Cable MGXTSV

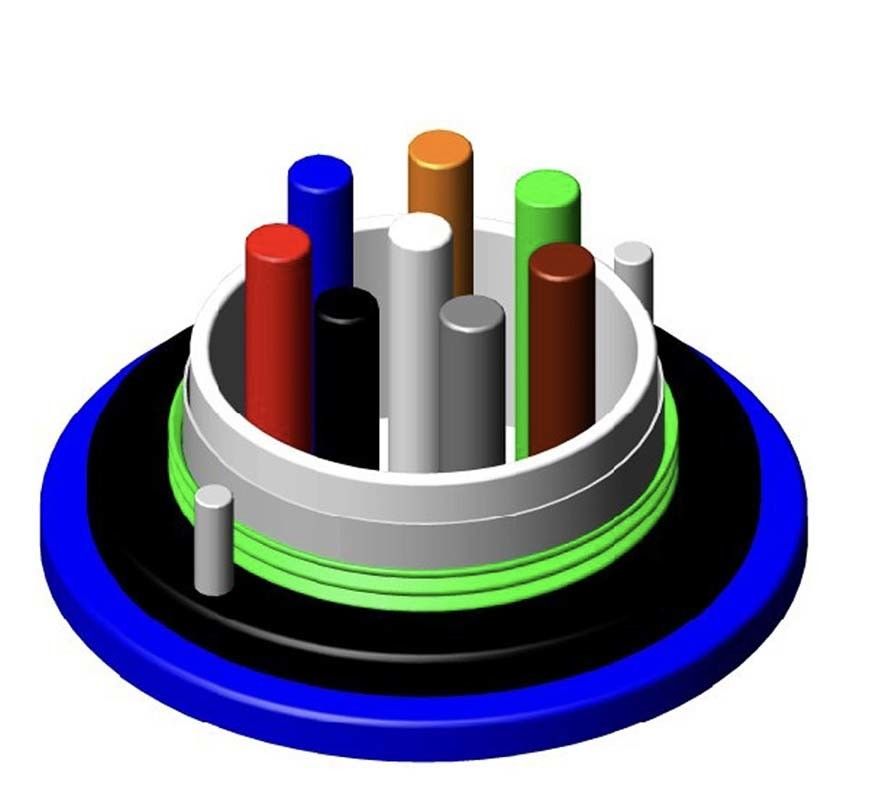

Features :

  • Flame retardant and durable design

  • High-strength hydrolysis-resistant loose tube

  • Double sheath and single armor for crush resistance, waterproofing, and rodent protection

  • Water-blocking non-woven tape around loose tube

  • Protective tube filling compound

  • Blue PVC or LSZH jacket for easy identification

  • Flexible and crush-resistant fiber optic cable



Item Name
MGXTSV Fiber Optic Cable
Place of Origin
Guangdong,China
Model Number
MGTSV
Brand Name

      JQ
Fiber Type
Single mode ITU-T G652D
Fiber No.
2-24 cores
Strength Member
Central Steel Wire
Material of Jacket
Flame-retardant Sheath
Cable Structure
Unit Tube
Certificate
ISO9001/CE/RoHS/CE
Storing Temperature
-40℃ to +70℃
Application
Duct/Aerial



MGXTSV Flame Retardant Duct Fiber Optic Cable Outdoor Underground Mine Single Mode Multi Mode 0









Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Cable
Diameter(mm)		 Cable Weight
kg/km)		 Tensile Strength
Long/Short
Term (N)		 Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)
2~12 8 78 1000/3000 1000/3000 10D/20D
14~24 10 90 1000/3000 1000/3000 10D/20D





Samples show

MGXTSV Flame Retardant Duct Fiber Optic Cable Outdoor Underground Mine Single Mode Multi Mode 1

MGXTSV Flame Retardant Duct Fiber Optic Cable Outdoor Underground Mine Single Mode Multi Mode 2



Application

Suitable for Mine Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃

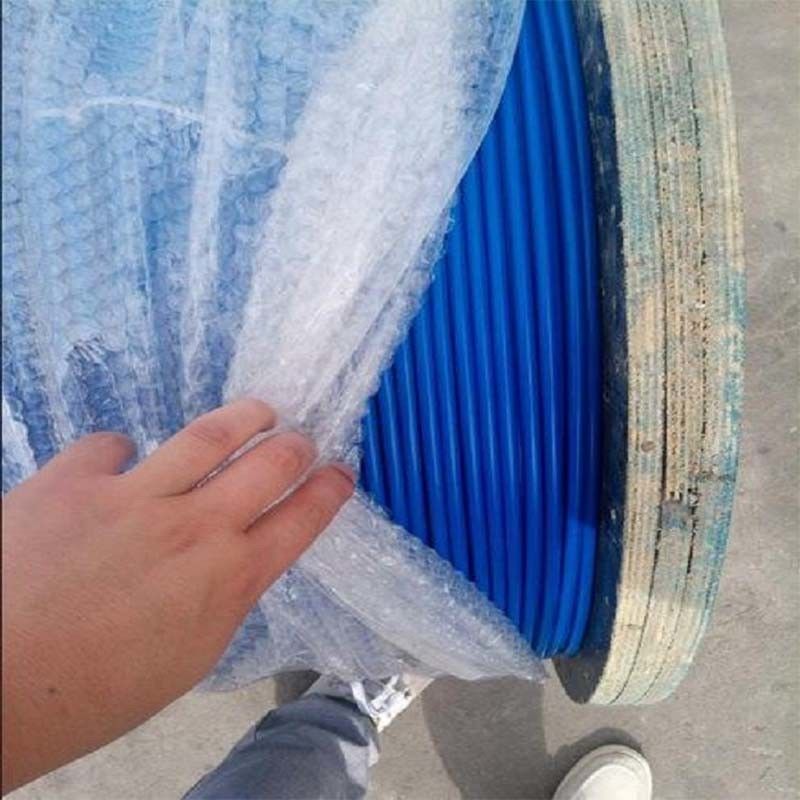

Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

MGXTSV Flame Retardant Duct Fiber Optic Cable Outdoor Underground Mine Single Mode Multi Mode 3





MGXTSV Flame Retardant Duct Fiber Optic Cable Outdoor Underground Mine Single Mode Multi Mode 4
