Home /Products/Duct Fiber Optic Cable/GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode

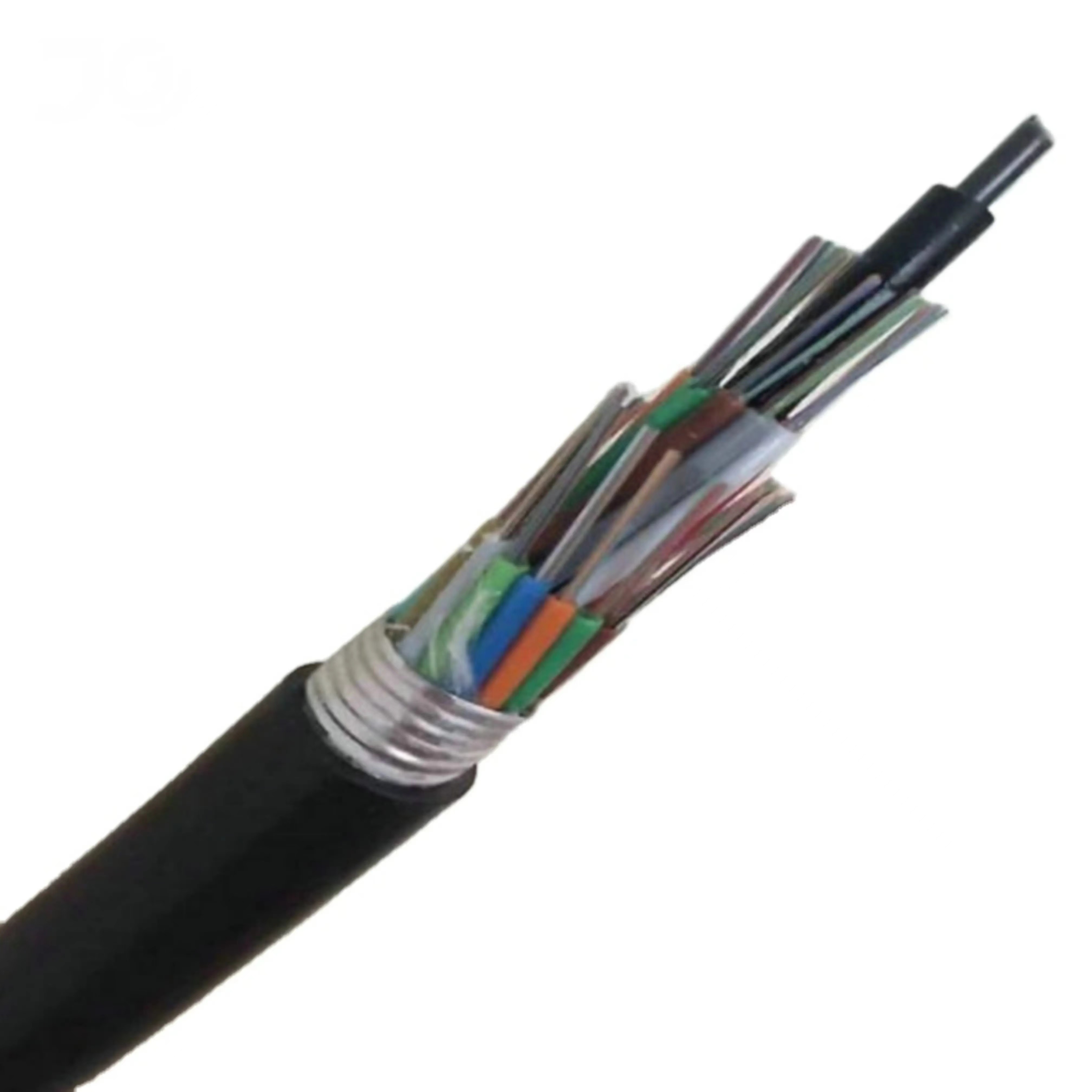

GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode

1km
MOQ
GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: YOFC,Fiberhome,as Request
Color: Black Or Orange Or Customized
Jacket: PE,MDPE, HDPE
Strength Member: Steel Wire/FRP Glass Yarn
Fiber Count: 2-288 Cores
Installation: Aerial & Duct
Product Name: Outdoor Optic Fiber Cable
Application: Network/long Distance Communication
Highlight:

24 core duct fiber optic cable

,

armored single mode fiber cable

,

outdoor stranded loose tube cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYTS-24B1
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

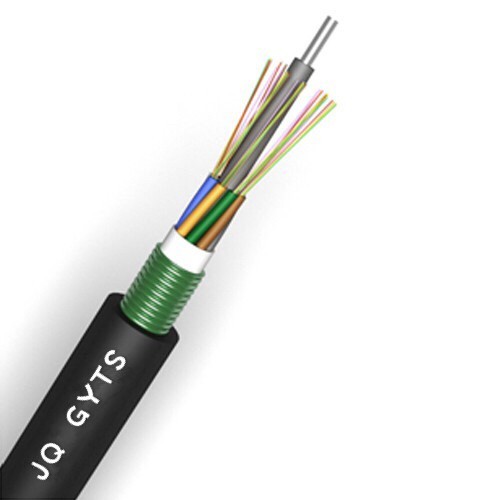

GYTS 24 core Single mode Outdoor Duct Armored Outdoor Fiber Optic Cable

Features

  • Strong mechanical & temperature performance

  • Water-resistant high-strength loose tube

  • Special grease for better fiber protection

  • Compact structure prevents tube shrinkage

  • UV-resistant PE jacket for outdoor use

  • Central strength member + waterproof gel

  • Full-core filling with APL moisture barrier



GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode 0

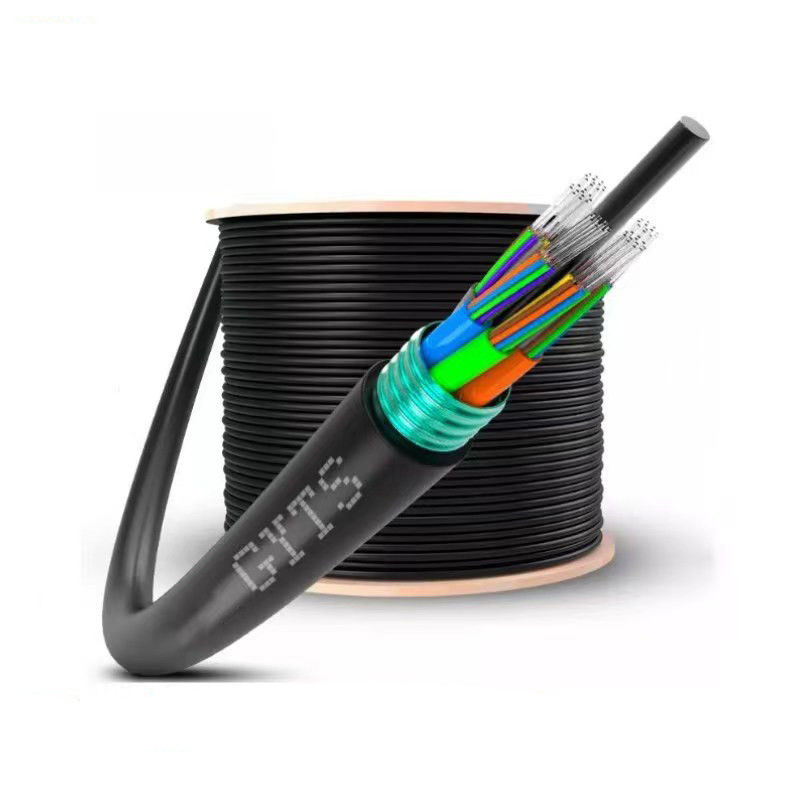

Product Show

GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode 1

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 9.8 95

10
Times
of
Diameter

















20
Times
of
Diameter

















 1500 600 1000 300
32-36 10.3 115 1500 600 1000 300
38-60 10.7 115 1500 600 1000 300
62-72 11.3 140 1500 600 1000 300
74-96 12.9 175 1500 600 1000 300
98-120 14.4 210 1500 600 1000 300
122-144 15.8 245 1500 600 1000 300
146-216 16.3 260 1500 600 1000 300
218-240 19.5 345 1500 600 1000 300
242-288 21.7 415 1500 600 1000 300





Application



Suitable for external application in duct and aerial

GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode 2





Delivery&Payment

GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode 3



FAQ

1. Are you a manufacturer?
Yes. We have 10+ years of experience in fiber optic cable production. Factory located in Guangzhou—welcome to visit.



2. How about quality?
All fibers are 100% tested before delivery. Free samples available after price confirmation.



3. Do you accept small orders?
Yes. Small and trial orders are supported.



4. Delivery time?
Generally 3–7 working days, depending on quantity.



5. Do you offer OEM?
Yes. We support OEM/ODM and can print your logo.
