Home /Products/Duct Fiber Optic Cable/China Factory GYTS 24 Core G652D Armored Optical Fiber Cable Outdoor Duct Optical Cable

China Factory GYTS 24 Core G652D Armored Optical Fiber Cable Outdoor Duct Optical Cable

1km
MOQ
China Factory GYTS 24 Core G652D Armored Optical Fiber Cable Outdoor Duct Optical Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: YOFC,Fiberhome, Corning
Color: Black
Jacket: PE,MDPE,LSZH,PVC,HDPE
Fiber Count: 2-288 Cores
Installation: Aerial & Duct
Armored: Steel Tape
Product Name: Outdoor Optic Fiber Cable
Application: Network/long Distance Communication
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001/CE/ROHS/FCC
Model Number: GYTS-24B1
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

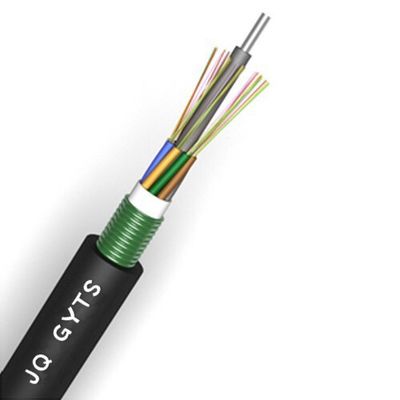

GYTS 24 Core Single Mode Outdoor Duct Armored Fiber Optic Cable

Product Description

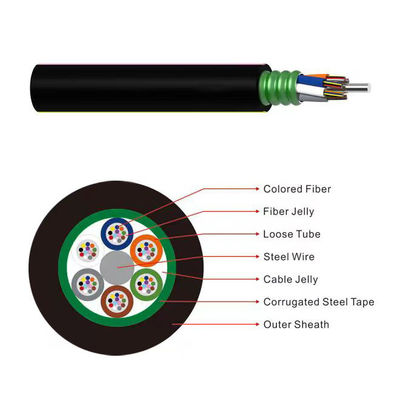

GYTS outdoor armored fiber optic cable uses single-mode or multimode fibers housed in high-modulus PBT loose tubes. The 250 μm fibers are protected with water-blocking gel, and the tubes are stranded around a central strength member to form a compact, round cable core.

A layer of PSP (polymer-coated steel tape) provides moisture and crush resistance, while the PE outer sheath ensures durability and UV protection. The cable structure delivers excellent mechanical strength, stability, and long-term reliability, making it suitable for duct, underground, and aerial installations.

Features

  • Excellent mechanical and temperature performance

  • Hydrolysis-resistant loose tube with strong water-blocking capability

  • Tube filled with special gel for fiber protection

  • Compact stranded structure prevents tube shrinkage

  • UV-resistant PE outer jacket for long-term outdoor use

  • Central steel strength member enhances tensile performance

  • Full core filling ensures high moisture and water resistance

  • PSP steel tape armor provides crush resistance and shielding

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 9.8 95

10
Times
of
Diameter

















20
Times
of
Diameter

















 1500 600 1000 300
32-36 10.3 115 1500 600 1000 300
38-60 10.7 115 1500 600 1000 300
62-72 11.3 140 1500 600 1000 300
74-96 12.9 175 1500 600 1000 300
98-120 14.4 210 1500 600 1000 300
122-144 15.8 245 1500 600 1000 300
146-216 16.3 260 1500 600 1000 300
218-240 19.5 345 1500 600 1000 300
242-288 21.7 415 1500 600 1000 300

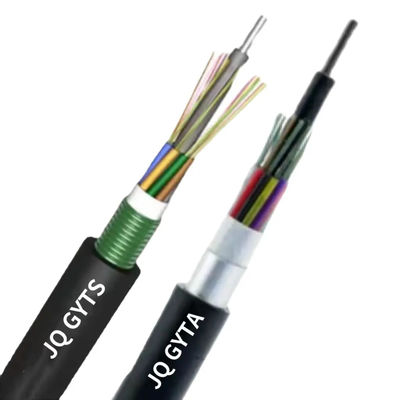

China Factory GYTS 24 Core G652D Armored Optical Fiber Cable Outdoor Duct Optical Cable 0

China Factory GYTS 24 Core G652D Armored Optical Fiber Cable Outdoor Duct Optical Cable 1





Application



Suitable for external application in duct and aerial

China Factory GYTS 24 Core G652D Armored Optical Fiber Cable Outdoor Duct Optical Cable 2





Delivery&Payment

China Factory GYTS 24 Core G652D Armored Optical Fiber Cable Outdoor Duct Optical Cable 3



FAQ

1. Are you a trading company or manufacturer?
We are a manufacturer with over 10 years of experience, specializing in the R&D and production of fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, and you are welcome to visit us anytime.



2. How is the product quality guaranteed?
All fibers are fully tested before shipment. After price confirmation, you may request free samples to evaluate our quality.



3. Do you accept small orders?
Yes, small orders are welcome. We support new customer projects, and we understand that business often starts with small quantities.



4. What is your delivery time?
Generally 3–7 working days depending on the order quantity. Rest assured, we will arrange production and shipment as soon as payment is confirmed.



5. Do you offer OEM service?
Yes, OEM is available. We can print your logo on the products, and we welcome any customization ideas you may have.
