Outdoor Armored GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Telecom Network

1km
MOQ
Outdoor Armored GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Telecom Network
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: YOFC,Fiberhome,as Request
Color: Black Or Orange Or Customized
Jacket: PE,MDPE,LSZH,PVC,HDPE
Strength Member: Steel Wire/FRP Glass Yarn
Fiber Count: 2-288 Cores
Installation: Aerial & Duct
Armored: Steel Tape
Application: Network Communication
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYTA / GYTS
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

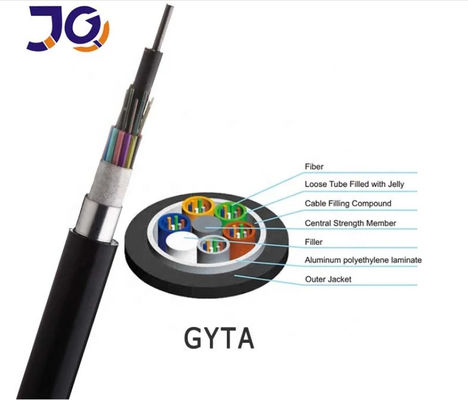

Product Features – GYTA/GYTS Outdoor Single Mode G652D Fiber Optic Cable

  • Colored G652D fibers housed in high-modulus PBT loose tubes for stable transmission and long service life.

  • Stranded loose-tube design ensures excellent mechanical strength and resistance to vibration and bending.

  • APL (Aluminum Polyethylene Laminate) armored cable core provides strong moisture-blocking and environmental protection.

  • Central steel wire strength member delivers high tensile performance for duct, underground, and outdoor installations.

  • Full water-blocking structure with gel-filled tubes and core filling compound ensures superior waterproof and moisture resistance.

  • Durable PE outer jacket offers UV resistance, abrasion resistance, and long-term outdoor reliability.

  • Ideal for duct, pipeline, underground, and long-distance communication networks.

Product Description

Fiber Count
1 2 4 6 8 12 24 36 48 72 96 144 288 cores
Brand Name
JQ/OEM
Length
1km 2km 3km 4km 5km
Armored
Steel Tape or Aluminunm Tape





Other Models Available(Single/Double Jacket)

2F 4F 8F 12F 24F 48F 72F 96F 128F 144F 288F
Fiber Count 6 12 24 32 48 72
Cable Diameter (mm) 8.8 8.8 9.0 9.0 9.0 9.2
Tolerance Range (mm) ±0.2, or customized
Cable Weight (kgs/km) 75 75 75 75 75 75
Loose tube Diameter(mm) 1.6 or 2.0







Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Mechanical Characteristic

Tensile (N) Long term 600
  Short term 1500
Crush (N/100mm) Long term 300
  Short term 1000
Min. Bending radius (D=Cable diameter) Dynamic 20xD
  Static 10xD
Temperature Range (℃) -20~+70




Application

Suitable for external application in duct and aerial

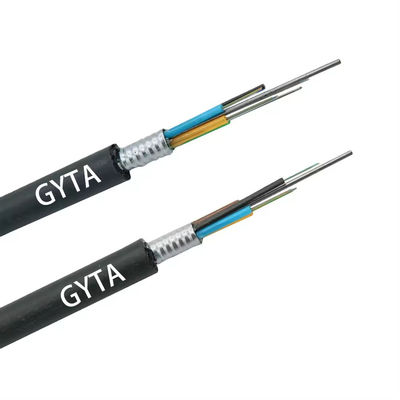

Outdoor Armored GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Telecom Network 0







Outdoor Armored GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Telecom Network 1

Outdoor Armored GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Telecom Network 2

Outdoor Armored GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Telecom Network 3







Packing details



Outdoor Armored GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Telecom Network 4

Outdoor Armored GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Telecom Network 5



Production equipment

Outdoor Armored GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Telecom Network 6

Outdoor Armored GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Telecom Network 7



GYTS / GYTA Stranded Loose Tube Outdoor Armored Fiber Optic Cable Factory Offer   We are 10+ years fiber optic cable manufacturer
