MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network

1km
MOQ
MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket Material: Flame-Retardant LSZH
Fiber Count: 4-288cores
Structure: Stranded Loose Tube
Product Name: Outdoor Optic Fiber Cable
Fiber Type: YOFC/Corning/Fiber Home/Fujikura Or As Request
Application: Aerial,Duct
Color: Blue/Yellow
Module: MGTSV-24B1
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: MGTSV
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 3-5dyas
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Bule LSZH Jacket Mining Flame-Retardant Fiber Optic Cable 24 core MGTSV

Features

  1. Excellent flame retardant performance for safe operation

  2. High strength loose tube with hydrolysis resistance

  3. Double sheath and single armor design offering strong crush resistance waterproofing and anti rodent protection

  4. Non woven tape wrapped loose tube providing effective water blocking

  5. Special tube filling compound ensures reliable fiber protection

  6. Blue PVC or LSZH jacket flame retardant and easy identification

  7. Flexible structure with high crush resistance for easy installation

Application

  1. Suitable for mine duct installation

  2. Suitable for aerial deployment

Storage and Operating Temperature

  1. Storage temperature range from minus 40 degrees Celsius to plus 70 degrees Celsius

  2. Operating temperature range from minus 40 degrees Celsius to plus 70 degrees Celsius



Item Name
MGTSV Fiber Optic Cable
Place of Origin
Guangdong,China
Model Number
MGTSV
Brand Name

      JQ
Fiber Type
Single mode ITU-T G652D
Fiber No.
2-288 cores
Strength Member
Central Steel Wire/ FRP
Material of Jacket
Flame-retardant Sheath
Cable Structure
Stranded Loose Tube
Certificate
ISO9001/CE/RoHS/CE
Storing Temperature
-40℃ to +70℃
Application
Duct/Aerial



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical data

Cable Type

Fiber

Count

Tubes

+Fills

Cable

Diameter

mm

Cable

Weight

Kg/km

Tensile

Strength

Long/Short

Term N

Crush

Resistance

Long

/Short Term

N/100m

Bending

Radius Static

/Dynamic mm

MGTSV-2~6

 2~60 5 12.2 156 1000/2000 500/1500 15D/30D
MGTSV-62~72 62~72 6 13.8 210 1750/3500 500/1500 15D/30D
MGTSV-74~96 74~96 8 15.1 242 1750/3500 500/1500 15D/30D
MGTSV-98~120 98~120 10 17.2 280 1750/3500 500/1500 15D/30D
MGTSV-122~144 122~144 12 19 320 1750/3500 500/1500 15D/30D
MGTSV-146~216 146~216 18 19 320 1750/3500 500/1500 15D/30D

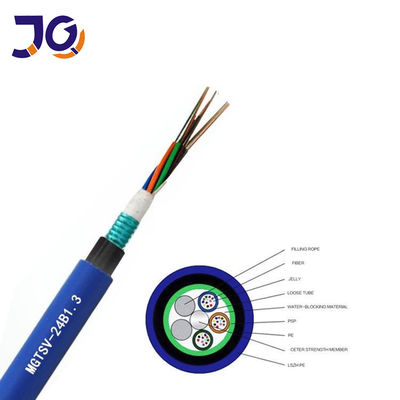

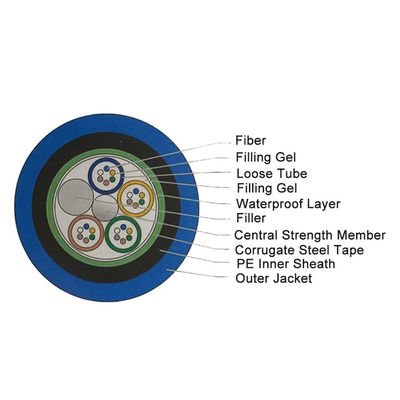

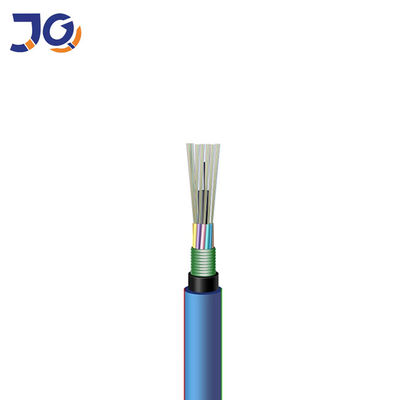

Product Image

MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network 0

MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network 1



Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network 2

MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network 3



MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network 4
