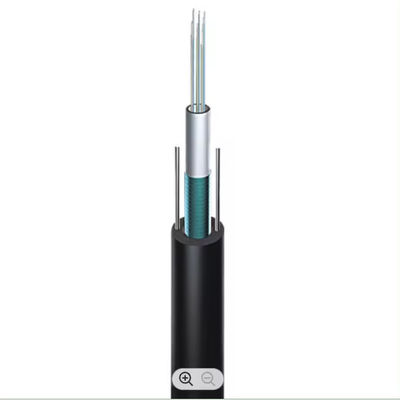

Single Mode 4 24 Core GYXTW Duct and Aerial Fiber Optic Cable with Steel Wire

1km
MOQ
Single Mode 4 24 Core GYXTW Duct and Aerial Fiber Optic Cable with Steel Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket Material: PE, MDPE, LSZH, HDPE
Outer Diameter: 6/7/8mm
Color: Black
Fiber Count: 2/4/6/8/12/24 Core
Structure: Central Loose Tube Cable
Strength Member: Two Steel Wire
Installation: Aerial &Duct
Fiber Type: Single Mode Or Multi Mode
Oem: Available
Highlight:

single mode duct fiber optic cable

,

24 core GYXTW fiber cable

,

aerial fiber optic cable with steel wire
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYXTW-4/6/8/12B1
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 3-5dyas
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Single Mode 4 6 8 12 24 Core GYXTW Fiber Optic Cable for Duct Laying

Product Description

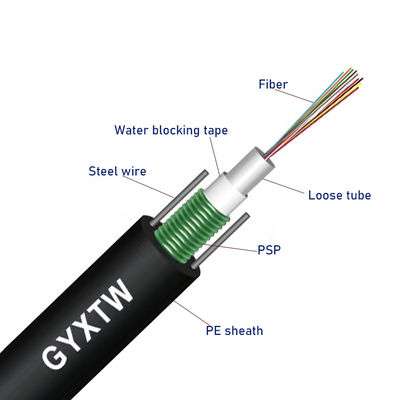

GYXTW is a single mode fiber optic cable with loose tube structure. Fibers are placed in a high modulus plastic loose tube filled with water blocking compound and wrapped with longitudinal PSP. Two parallel steel wires provide tensile strength. The cable is protected by a PE outer jacket ensuring compact structure and reliable waterproof performance.

Key Features

  • Loose tube design with water blocking compound

  • PSP layer enhances moisture resistance

  • Two parallel steel wires for tensile strength

  • Good crush resistance and flexibility

  • Small diameter and light weight for easy installation

Applications

  • Duct and aerial installation

  • Operating temperature -40℃ to +70℃







Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22







Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black





Technical Parameters

Fiber
Count		 Cable
Diameter(mm)		 Cable Weight
kg/km)		 Tensile Strength
Long/Short
Term (N)		 Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)
2~12 8  78 1000/3000 1000/3000 10D/20D
14~24 10  90 1000/3000 1000/3000 10D/20D







Product Image

Single Mode 4 24 Core GYXTW Duct and Aerial Fiber Optic Cable with Steel Wire 0

Single Mode 4 24 Core GYXTW Duct and Aerial Fiber Optic Cable with Steel Wire 1

Single Mode 4 24 Core GYXTW Duct and Aerial Fiber Optic Cable with Steel Wire 2

FAQ

1 Are you a manufacturer
Yes we are a direct manufacturer with over 10 years experience in fiber optic cable production based in Guangzhou China



2 How do you ensure quality
All cables are fully tested before delivery Free samples are available for quality check



3 Do you accept small orders
Yes small and trial orders are supported for new projects



4 What is the delivery time
Usually 3 to 7 working days depending on order quantity



5 Do you support OEM service
Yes OEM service and logo printing are available
