Home /Products/Duct Fiber Optic Cable/GYTS 24 48 Core Armored Fiber Optic Cable for Duct Installation Single Mode

GYTS 24 48 Core Armored Fiber Optic Cable for Duct Installation Single Mode

1km
MOQ
GYTS 24 48 Core Armored Fiber Optic Cable for Duct Installation Single Mode
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: YOFC,FiberHome,as Request
Jacket: PE,MDPE,LSZH,PVC,HDPE
Strength Member: Steel Wire/FRP Glass Yarn
Fiber Count: 2-288 Cores
Installation: Aerial & Duct
Fiber Color: Blue,Orange,Brown,Aqua,Grey
Armored: Steel Tape
Application: Network/long Distance Communication
Highlight:

GYTS armored fiber optic cable

,

24 core duct fiber cable

,

single mode armored fiber optic
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYTS-24B1
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

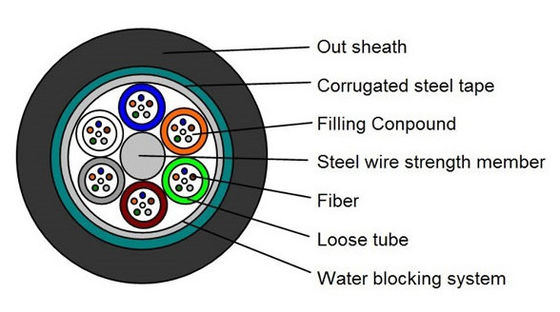

GYTS 24 core Single mode Outdoor Duct Armored Outdoor Fiber Optic Cable

Product Features

  • Stranded loose tube structure ensures stable fiber protection

  • Steel tape armor provides excellent crush resistance and moisture blocking

  • High strength hydrolysis resistant loose tubes for long term reliability

  • Water resistant filling compound enhances waterproof performance

  • PE outer sheath offers UV resistance and outdoor durability

  • Suitable for single mode and multimode fiber options

Applications

  • Aerial installation in outdoor communication networks

  • Duct installation for backbone and access networks

  • Telecom and broadband transmission systems

  • Metropolitan and long distance communication lines



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 9.8 95

10
Times
of
Diameter

















20
Times
of
Diameter

















 1500 600 1000 300
32-36 10.3 115 1500 600 1000 300
38-60 10.7 115 1500 600 1000 300
62-72 11.3 140 1500 600 1000 300
74-96 12.9 175 1500 600 1000 300
98-120 14.4 210 1500 600 1000 300
122-144 15.8 245 1500 600 1000 300
146-216 16.3 260 1500 600 1000 300
218-240 19.5 345 1500 600 1000 300
242-288 21.7 415 1500 600 1000 300



GYTS 24 48 Core Armored Fiber Optic Cable for Duct Installation Single Mode 0

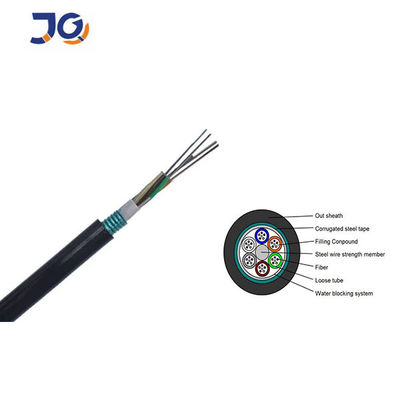

Product Show

GYTS 24 48 Core Armored Fiber Optic Cable for Duct Installation Single Mode 1





Application



Suitable for external application in duct and aerial

GYTS 24 48 Core Armored Fiber Optic Cable for Duct Installation Single Mode 2





Delivery&Payment

GYTS 24 48 Core Armored Fiber Optic Cable for Duct Installation Single Mode 3



FAQ

1 Are you a manufacturer or trading company
We are a direct manufacturer with over 10 years experience in fiber optic cable production based in Guangzhou China



2 How do you ensure product quality
All cables are fully tested before delivery Free samples are available after price confirmation



3 Do you accept small orders
Yes small and trial orders are supported for new projects



4 What is the delivery time
Usually 3 to 7 working days depending on order quantity



5 Do you support OEM service
Yes OEM service and logo printing are available
