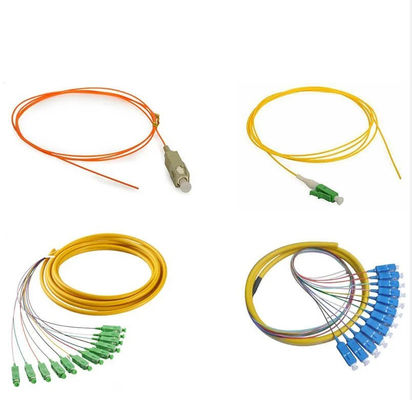

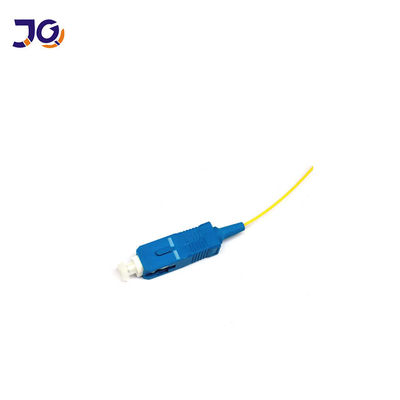

FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks

100pcs
MOQ
FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks
Features Gallery Product Description Request A Quote
Features
Specifications
Material: LSZH /PVC
Cable Diameter: 0.9/2.0/3.0mm
OEM & Custom: Support
Fiber Type: SM,MM(50/125um,62.5/125um)
Color: Orange, Yellow, Blue, Aqua
Use: FTTH
Connector Type: SC / LC / FC / ST / E2000
Connector Polish: UPC/APC/PC
Highlight:

FTTH fiber optic pigtail SC APC

,

62.5/125um telecom fiber pigtail

,

SC APC connector fiber patch cord
Basic Infomation
Place of Origin: China
Brand Name: Jiqian/Customize/ OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: fiber pigtail
Payment & Shipping Terms
Packaging Details: package carton
Delivery Time: 2-4day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 pcs per 2 day
Product Description

FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks

Fiber Optic Pigtail Features

  • Compatible with SC, LC, FC, MU, ST, MT-RJ, and E2000 connectors

  • PC, UPC, APC, and SPC polishing options available

  • Optional cable diameters: 0.9 mm, 2.0 mm, 3.0 mm

  • Single mode (9/125) and multimode (50/125, 62.5/125) fiber options

  • Supports simplex and duplex configurations

  • Low insertion loss and high return loss

  • Good interchangeability and long service life

Fiber Optic Pigtail Applications

  • FTTH and FTTx access networks

  • Telecom and data center fiber termination

  • Optical distribution frames (ODF) and patch panels

  • LAN and WAN network installations

  • Fiber splicing and network maintenance

Size Information
Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80
FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks 0
Size Information
Item
SM(Single Mode)
MM(Multimode)
Fiber Cable Type
G652D/G655/G657A1/G657A2
OM1
OM2/OM3/OM4
Fiber Diameter (um)
9/125
62.5/125
50/125
Cable OD (mm)
0.9/1.6/1.8/2.0/2.4/3.0
Endface Type
PC
UPC
APC
UPC
UPC
Typical Insertion Loss (dB)
<0.2
<0.15
<0.2
<0.1
<0.1
Return Loss (dB)
>45
>50
>60
/
Insert-pull Test (dB)
<0.2
<0.3
<0.15
Interchangeability (dB)
<0.1
<0.15
<0.1
Anti-tensile Force (N)
>70
Temperature Range (℃)
-40~+80

FAQ

1. Are you a real manufacturer?
Yes. We are a professional factory located in Guangzhou, China. Factory visits are welcome.



2. What is your minimum order quantity (MOQ)?
The standard MOQ is 1 km. Trial orders are available to support new projects.



3. Can I get a sample?
Yes. Free samples are available. Customers only need to cover the express shipping cost.



4. What payment methods do you accept?
We accept T/T, L/C, Western Union, and PayPal.



5. What is the delivery time?
Normally 3–7 working days, depending on order quantity and product specifications.



6. Do you support customized products and logo?
Yes. We provide OEM & ODM services, including customized specifications and branding.
