Home /Products/Fiber Optic Patch Cord/SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing

SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing

50PCS
MOQ
Inquiry for price
Price
SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing
Features Gallery Product Description Request A Quote
Features
Specifications
Application: FTTH FTTB FTTX Network
Connector Type: SC UPC
Cable Diameter: 0.9/2.0/3.0mm
Product Name: Fiber Optic Pigtail
Cable Diameter: 2.0mm, 3.0mm, 3.5mm
Fiber Diameter: 9/125μm, 50/125μm, 62.5/125μm
Fiber Alighment: V-Groove Fiber Alignment
Highlight:

SC UPC multimode fiber pigtail

,

0.9mm FTTH fiber optic cable

,

low loss fiber patch cord
Basic Infomation
Place of Origin: Guangzhou, China
Brand Name: JQ/OEM/Customize
Certification: ISO 9001,ROHS CE-EMC FCC SDOC
Model Number: Fiber Optic Pigtail
Payment & Shipping Terms
Packaging Details: PE bag or plastic box and Cartoon box
Delivery Time: 3-5 work days
Payment Terms: Western Union,T/T, L/C
Supply Ability: 30000pcs per day
Product Description

12 Core SC UPC Fiber Optic Pigtail Multimode 0.9mm FTTH Cable



Product Introduction:
12 core SC UPC fiber optic pigtail is designed for fiber termination and splicing, providing stable and low-loss connections in telecom and data networks.



Key Features:
 SC UPC connectors with low insertion loss
 Multimode fiber 50/125 or 62.5/125 optional
 0.9mm compact cable design
 PVC or LSZH jacket for safety
 100% factory tested for performance
 Multiple core counts and connector types available



Applications:

  • FTTH and FTTB networks
  • Telecom and broadband systems
  • Data centers and server rooms
  • LAN WAN and CATV networks
  • Optical distribution and splicing systems


Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80

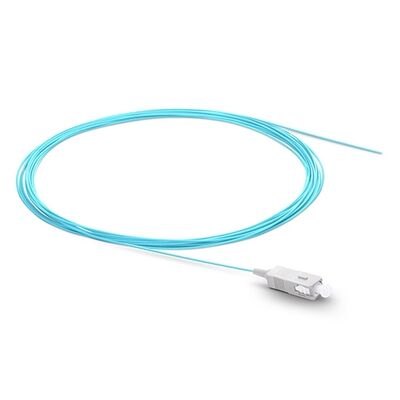

Detailed Image
SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 0

SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 1
SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 2

SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 3



Fiber Optic Pigtail FAQ



Q1: What is this pigtail used for?
A: It is used for fiber splicing, termination, and connection in networks.



Q2: What connector type does it use?
A: Standard SC UPC, with other connectors optional.



Q3: What fiber types are available?
A: Multimode (50/125, 62.5/125) and optional single-mode.



Q4: Is it safe for indoor use?
A: Yes, PVC or LSZH jackets are available for safety.



Q5: Is it tested before delivery?
A: Yes, all pigtails are 100% factory tested.
