MGTSV 24 Core Armored Mining Fiber Optic Cable Single Mode Flame Retardant Duct Optical Cable

1km
MOQ
MGTSV 24 Core Armored Mining Fiber Optic Cable Single Mode Flame Retardant Duct Optical Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket Material: Flame-Retardant LSZH
Fiber Count: 4-288 Cores
Structure: Stranded Loose Tube
Product Name: Outdoor Optic Fiber Cable
Fiber Type: YOFC Fiberhome Corning
Application: Aerial, Duct, Overhead Installation
Color: Blue/Yellow
Module: MGTSV-24B1
Highlight:

24 core armored fiber optic cable

,

flame retardant duct optical cable

,

single mode mining fiber cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: MGTSV
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 3-5dyas
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Multi Loose tube Miner Duct Fiber Optic Cable MGTSV

Application

  • Mining communication systems

  • Underground tunnels and duct networks

  • Industrial harsh environment communication

  • Metro and utility corridor networks

  • Safety monitoring and emergency communication

Key Features

  • Steel wire strength member for high tensile strength

  • PSP armored structure for crush and rodent resistance

  • Gel-filled loose tubes with full water-blocking design

  • Flame-retardant PVC outer sheath for fire safety

  • Stable performance in humid and high-stress environments

Item Name
MGTSV Fiber Optic Cable
Place of Origin
Guangdong,China
Model Number
MGTSV
Brand Name

      JQ/ Jiqian/ Customize
Fiber Type
Single mode ITU-T G652D
Fiber No.
2-288 cores
Strength Member
Central Steel Wire/ FRP
Material of Jacket
Flame-retardant Sheath
Cable Structure
Stranded Loose Tube
Certificate
ISO9001/CE/RoHS/CE
Storing Temperature
-40℃ to +70℃
Application
Duct/Aerial



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22



Technical data

Cable Type

Fiber

Count

Tubes

+Fills

Cable

Diameter

mm

Cable

Weight

Kg/km

Tensile

Strength

Long/Short

Term N

Crush

Resistance

Long

/Short Term

N/100m

Bending

Radius Static

/Dynamic mm

MGTSV-2~6

 2~60 5 12.2 156 1000/2000 500/1500 15D/30D
MGTSV-62~72 62~72 6 13.8 210 1750/3500 500/1500 15D/30D
MGTSV-74~96 74~96 8 15.1 242 1750/3500 500/1500 15D/30D
MGTSV-98~120 98~120 10 17.2 280 1750/3500 500/1500 15D/30D
MGTSV-122~144 122~144 12 19 320 1750/3500 500/1500 15D/30D
MGTSV-146~216 146~216 18 19 320 1750/3500 500/1500 15D/30D

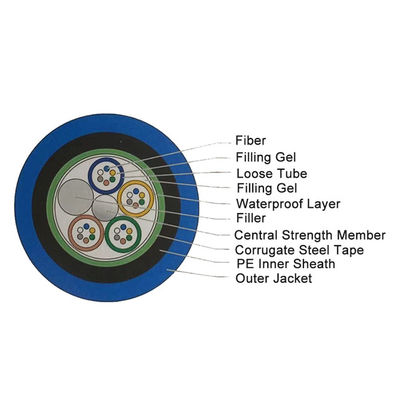

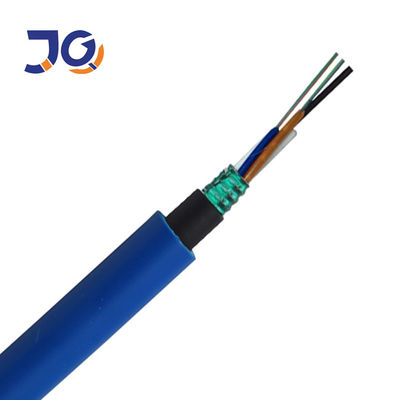

Product Image

MGTSV 24 Core Armored Mining Fiber Optic Cable Single Mode Flame Retardant Duct Optical Cable 0

MGTSV 24 Core Armored Mining Fiber Optic Cable Single Mode Flame Retardant Duct Optical Cable 1

Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

MGTSV 24 Core Armored Mining Fiber Optic Cable Single Mode Flame Retardant Duct Optical Cable 2

MGTSV 24 Core Armored Mining Fiber Optic Cable Single Mode Flame Retardant Duct Optical Cable 3



FAQ

Q1 Are you manufacturer
Yes we are professional fiber optic cable factory.



Q2 Do you support OEM customization
Yes OEM and custom design are available.



Q3 What fiber types do you supply
G652D G657A1 G657A2 and customized fiber types.



Q4 What is your MOQ
Normally 1 km trial order supported.



Q5 Do you provide samples
Yes free samples available customer pays freight.



Q6 What is delivery time
Usually 3 to 7 working days depending on quantity.



Q7 What certificates do you have
ISO9001 CE RoHS and other international standards.



Q8 What is cable service life
More than 25 years under normal conditions.
