12 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor Loose Tube Single Mode G652D

1km
MOQ
12 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor Loose Tube Single Mode G652D
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 4-144 Cores
Fiber Type: Single Mode G652D/G657A1
Jacket: PE,MDPE,LSZH,PVC,HDPE
Color: Black Or Orange Or Customized
Product Name: Non-armored Duct Fiber Optic Cable

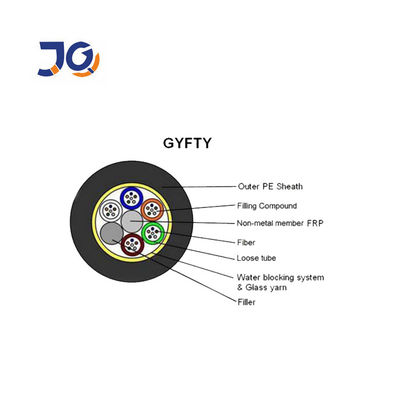

Structure: Stranding Loose Tube SZ
Installation: Aerial & Duct
Strenght Member: FRP
Highlight:

12 core GYFTY duct fiber optic cable

,

48 core outdoor loose tube fiber optic cable

,

single mode G652D duct fiber cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYFTY-48B1.3
Payment & Shipping Terms

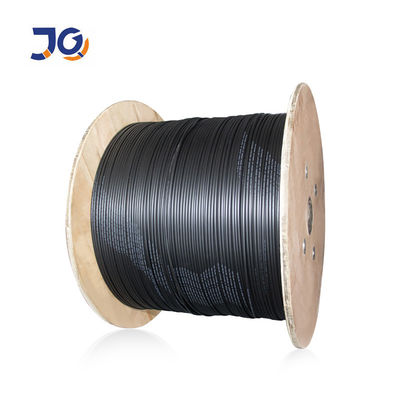

Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30km per day
Product Description

2-144 Core GYFTY Non Armored Duct Fiber Optic Cable Non Metallic FRP Outdoor Loose Tube G652D Communication Cable Factory Price OEM Support

Key Features

  • Lightweight & Flexible: Small diameter design for easy handling and installation.

  • Non-Metallic Structure: FRP strength member ensures strong tensile performance and excellent electromagnetic resistance.

  • Reliable Water Protection: Jelly-filled loose tube, water blocking tape, and PE sheath provide superior moisture resistance.

  • Stable Performance: Loose tube and PP filler structure protect fibers and improve cable durability.

  • Wide Capacity Range: Supports 2 to 144 cores for various network requirements.

Applications

  • Outdoor duct and pipeline communication networks

  • Backbone and metropolitan area network deployment

  • High electromagnetic interference environments

  • Long distance telecom and data transmission systems



Optical Characteristics



Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%



Cable Parameters

Items Specifications
Fiber Count 48fibers
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 2.0mm±0.2mm
Material FRP or steel wire
Outer Jacket Dimension 12.0mm±0.2mm
Material PE
Color Black

12 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor Loose Tube Single Mode G652D 0

12 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor Loose Tube Single Mode G652D 1

FAQ

Q1: Are you a manufacturer or trading company?
A: We are a professional fiber optic cable manufacturer with over 10 years of experience.



Q2: Do you support OEM service?
A: Yes, we support OEM and customized cable structure design.



Q3: Can I order small quantities?
A: Yes, small trial orders are acceptable.



Q4: What fiber brands do you use?
A: We use Corning, YOFC, FiberHome or equivalent brands.



Q5: What is your delivery time?
A: Normally 3–7 working days depending on order quantity.



Q6: Do you provide warranty?
A: Yes, we provide long-term quality warranty and technical support.
