ADSS 96 Cores G652D Overhead Span 100m Fiber Optic Cable

Minimum Order Quantity : 1KM Price : 288
Packaging Details : Wooden drum Delivery Time : 3-5 days
Payment Terms : L/C, T/T,Alipay Supply Ability : 4500km per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO 9001 Model Number: ADSS-96

Detail Information

Model Number: ADSS -96B1 Brand Name: Jiqian
OEM: Available Fiber Type: Single Mode
Strength Yarn: Kevlar Yarn Application: Overhead
Certification: ISO 9001 Packing: Wooden Drum
Storage Operating Temperature: -40 To +70 °C Manufacturer: Jiqian
Colour: Black
High Light:

G652D Span 100m Fiber Optic Cable

,

G652D 96core fiber optic cable

,

Overhead Span 100m Fiber Optic Cable

Product Description

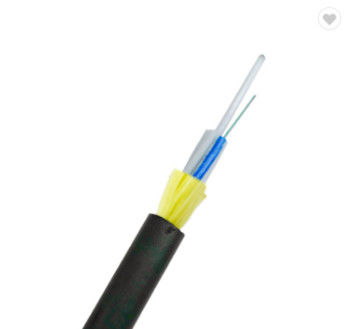

ADSS 96 Cores single Sheath G652D Overhead Span 100m Fiber Optic Cable

ADSS is one kind of loose tube stranded cable. 250μm's fibers are positioned in the loose tube which is made of high modulus plastics. The tubes are filled with a water-resistant filling compound. And we use the FRP(fiber reinforced plastic) as the central strength member. The loose tube with the fibers and the FRP are stranded together first, and then we use the PE sheath and the aramid yarn to protect the fibers. Because of the structure, ADSS cable have a very excellent performance during the storage, oprating and using.

ADSS 96 Cores G652D Overhead Span 100m Fiber Optic Cable 0



Characteristics

.Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE/LSZH sheath protects cable from ultraviolet radiation
· 100% cable core filling
Temperature Range
Transport/storage temp
-30℃~+65℃
Installation temp
-20℃~+50℃
Operation temp
-30℃~+65℃

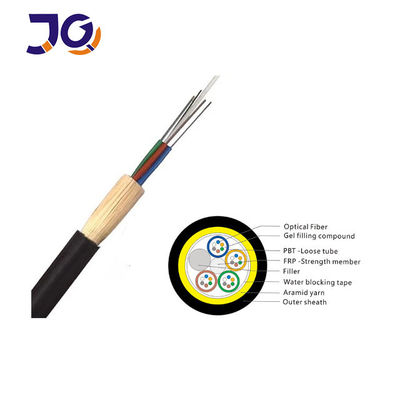

Structural Characteristics
Fiber count
2~144
Loose tube
Colored fiber in PBT loose tube,filled with fiber gel
Central strength member
Non-metallic strength member FRP(Fiber Reinforce Plastic Rod)
Waterproof layer
Cable core filled with cable gel or water blocking tape, water blocking yarns
High-strength aramid yarn
Offers very high tensile strength, small diameter and light weight to fit different climate conditions and laying spans
Sheath
Anti-tracking(AT) material or Polyethylene(PE)



FAQ:



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:Corning,YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
