Premium ADSS Double Sheath Fiber Optic Cable Span 400m 24 48 72 96 144 288 Core
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1KM | Price : | 288 |
|---|---|---|---|
| Packaging Details : | Wooden drum | Delivery Time : | 3-5 days |
| Payment Terms : | L/C, T/T,Alipay | Supply Ability : | 4500km per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | ADSS-96 |
|
Detail Information |
|||
| Model Number: | ADSS -96B1 | Brand Name: | Jiqian |
|---|---|---|---|
| OEM: | Available | Fiber Type: | Single Mode |
| Strength Yarn: | Kevlar Yarn | Application: | Overhead |
| Certification: | ISO 9001 | Packing: | Wooden Drum |
| Storage Operating Temperature: | -40 To +70 °C | Manufacturer: | Jiqian |
| Colour: | Black | ||
| High Light: | G652D Span 100m Fiber Optic Cable,G652D 96core fiber optic cable,Overhead Span 100m Fiber Optic Cable |
||
Product Description

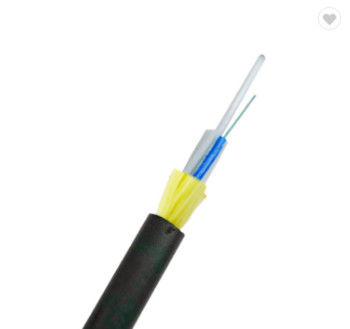

ADSS 96 Cores single Sheath G652D Overhead Span 100m Fiber Optic Cable
ADSS is one kind of loose tube stranded cable. 250μm's fibers are positioned in the loose tube which is made of high modulus plastics. The tubes are filled with a water-resistant filling compound. And we use the FRP(fiber reinforced plastic) as the central strength member. The loose tube with the fibers and the FRP are stranded together first, and then we use the PE sheath and the aramid yarn to protect the fibers. Because of the structure, ADSS cable have a very excellent performance during the storage, oprating and using.
|
Temperature Range
|
|
|
Transport/storage temp
|
-30℃～+65℃
|
|
Installation temp
|
-20℃～+50℃
|
|
Operation temp
|
-30℃～+65℃
|
|
Structural Characteristics
|
|
|
Fiber count
|
2～144
|
|
Loose tube
|
Colored fiber in PBT loose tube,filled with fiber gel
|
|
Central strength member
|
Non-metallic strength member FRP(Fiber Reinforce Plastic Rod)
|
|
Waterproof layer
|
Cable core filled with cable gel or water blocking tape, water blocking yarns
|
|
High-strength aramid yarn
|
Offers very high tensile strength, small diameter and light weight to fit different climate conditions and laying spans
|
|
Sheath
|
Anti-tracking(AT) material or Polyethylene(PE)
|
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
