GJYXCH GJYXFCH FTTH 2 Core G657A2 Fiber Flat Drop Cable

Minimum Order Quantity : 1000m Packaging Details : package carton
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GJXH GJXCH GJXFXCH

Detail Information

Material: LSZH /PVC Fiber Type: G657A1/A2/G652D/G657A1/G657A2
Color: White /black Central Strength Member: FRP Strength Member/steel Wire
Oem: Available Installation: FTTH
Core: 2 4 6
High Light:

G657A2 Fiber Flat Drop Cable

,

GJYXCH Flat Drop Cable

,

GJYXFCH Fiber Optic Drop Cable

Product Description

Outdoor Self-supporting Gjyxfch G657/G652D Fiber Ftth Drop Cable



Item Model: GJYXFCH (1/ 2 / 4 fibers)

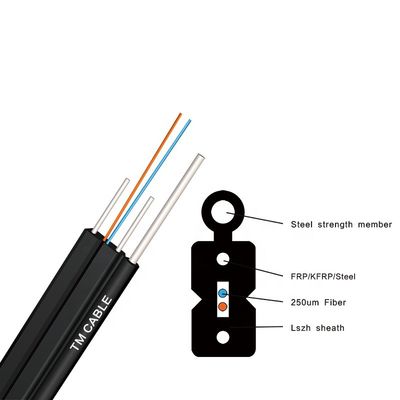

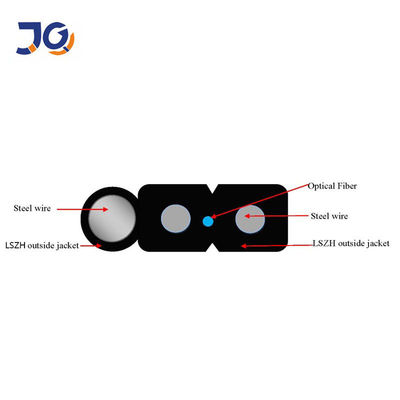

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced member FRP are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

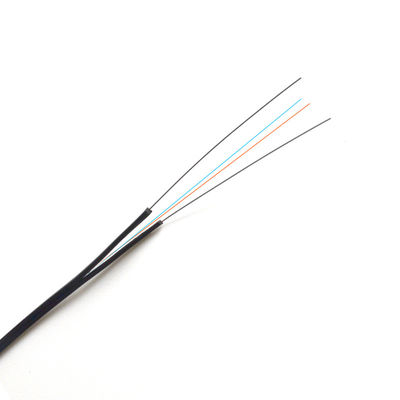

GJYXCH GJYXFCH FTTH 2 Core G657A2 Fiber Flat Drop Cable 0

Features:

Special low-bend sensitivity fibre provides high bandwidth and excellent communication transmission property.

Two parallet FRP strength member ensure good performance of crush resistance to protect the fibre.

Simple structure, light weight and high practicability for 1 to 4 core SM Indoor FTTH Drop cable.

Novel flute design, easily strip and splice, simplify the installation and maintenance.

Low smoke, zero halogen and flame retardant sheath.

Single steel wire as the additional strength member ensures good performance of tensile strength



Technical Parameter:

Number of fiber 1~4 core
strength member Material steel wire/FRP/KFRP
diameter 2*0.45/0.5/0.5mm
Self support Messenger wire Material steel wire
diameter 1.0mm/7*0.4mm
Outer sheath material LSZH/PVC
diameter 1.8±0.2mm
Cable size (Height * width) 2.0(±0.1) mm × 5.0(±0.2)mm
Cable sheath thickness Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness 0.5~0.7mm



Items Description
Installation Temperature range(℃) -20+60
Operation and transport temperature(℃) -40+70
Min Bending Radius(mm) Long term 15D
Min Bending
Radius(mm)
Short term 30D
Min allowable
Tensile Strength(N)
Long term 400
Min allowable
Tensile Strength(N)
Short term 660
Crush Load (N/100mm) Long term 1000
Crush Load (N/100mm) short term 2200
Packaging :

1.Wooden roll, 1000m/roll,2000m/roll,3000m/roll,customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.

GJYXCH GJYXFCH FTTH 2 Core G657A2 Fiber Flat Drop Cable 1


Factory :

GJYXCH GJYXFCH FTTH 2 Core G657A2 Fiber Flat Drop Cable 2

COMPANY PROFILE:
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
