G652D G657A Indoor Drop Cable
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
Minimum Order Quantity : | 1000m | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
Supply Ability : | 100km per 2 day |
Place of Origin: | CHINA | Brand Name: | jiqian |
---|---|---|---|
Certification: | ISO | Model Number: | GJXH GJXCH GJXFXCH |
Detail Information |
|||
Material: | LSZH /PVS | Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 |
---|---|---|---|
Color: | White /black | Central Strength Member: | FRP Strength Member/steel Wire |
Oem: | Available | Installation: | FTTH |
Highlight: | Steel Wire FTTH Drop Cable,G.657A Fiber FTTH Drop Cable,4 Core FTTH Drop Cable |
Product Description

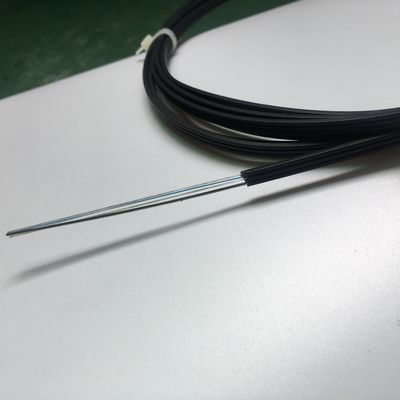

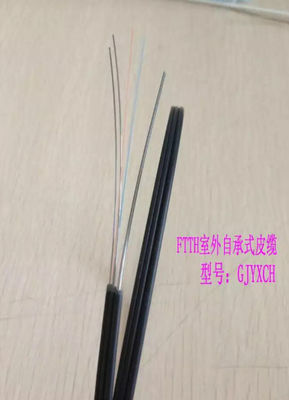

Ftth Drop Cable Steel Wire FTTH Drop Cable GJYXFCH 1 2 4 Core G.657A Fiber
1. Soft and bendable, easy to deploy and maintenance.
2. Smaller diameter, Light weight, and high practicability.
3. Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.
4. Environmental protection- Low smoke, zero halogen and flame retardant sheath.
Applications
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor
Optical Characteristics
Item
|
Technology parameter
|
||
Cable type
|
GJYXCH-1B6
|
GJYXCH-2B6
|
GJYXCH-4B6
|
Cable specification
|
5.2×2.0
|
||
Fiber type
|
9/125 (G.657A2)
|
||
Fiber counts
|
1
|
2
|
4
|
Fiber color
|
Red
|
Blue, orange
|
Blue, orange, green, brown
|
Sheath color
|
Black
|
||
Sheath material
|
LSZH
|
||
Cable dimension mm
|
5.2(±0.2)*2.0(±0.2)
|
||
Cable weight Kg/km
|
Approx. 19.5
|
||
Min. bending radius mm
|
120
|
||
Min. bending radius mm
(Excluding messenger wire) |
10 (Static)
25 (Dynamic) |
||
Attenuation dB/km
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
||
Short term tensile N
|
600
|
||
Long term tensile N
|
300
|
||
Short term crush N/100mm
|
2200
|
||
Long term crush N/100mm
|
1100
|
||
Operation temperature ℃
|
-20~+60
|
