G657a1 G657a2 LSZH Jacket FTTH Drop Cable Outdoor Drop Cable FTTX Fiber Optic Cable

Minimum Order Quantity : 10 km Packaging Details : 1/2/3/4/5 km in one wooden drum
Delivery Time : 6 dyas Payment Terms : L/C, T/T, Western Union
Supply Ability : 600 KM Per day
Place of Origin: Guangdong China Brand Name: JQ/OEM
Certification: ISO9001/CE/ROHS Model Number: GJXH/GJYXCH

Detail Information

Jacket Material: LSZH (low Smoke Zero Halogen) Outer Diameter: 2.0*3.0mm/2.0*5.0mm
Steel Wire/FRP: 2*0.5mm/2*0.45mm Color: Black/white
Fiber Type: G657a1/G657a2/G652D Fiber Count: 2/4/6/8/12 Core
Installation: FTTH Indoor And Outdoor Fiber Brand: Corning/ Fujikaru
Free Sample: Avalible OEM: Avalible
Highlight:

LSZH Jacket FTTH drop cable

,

Outdoor FTTH drop cable

,

G657a1 FTTH drop cable

Product Description

G657a1 G657a2  FTTH FTTX indoor outdoor drop cable fiber optic cable



Description of fiber drop cable



GJXH/GJYXCH drop fiber optic cable is a type of fiber optic cable that is widely used in FTTH application. This type of fiber optic cable has been praised due to its exceptional performance in indoor and outdoor LAN cabling.

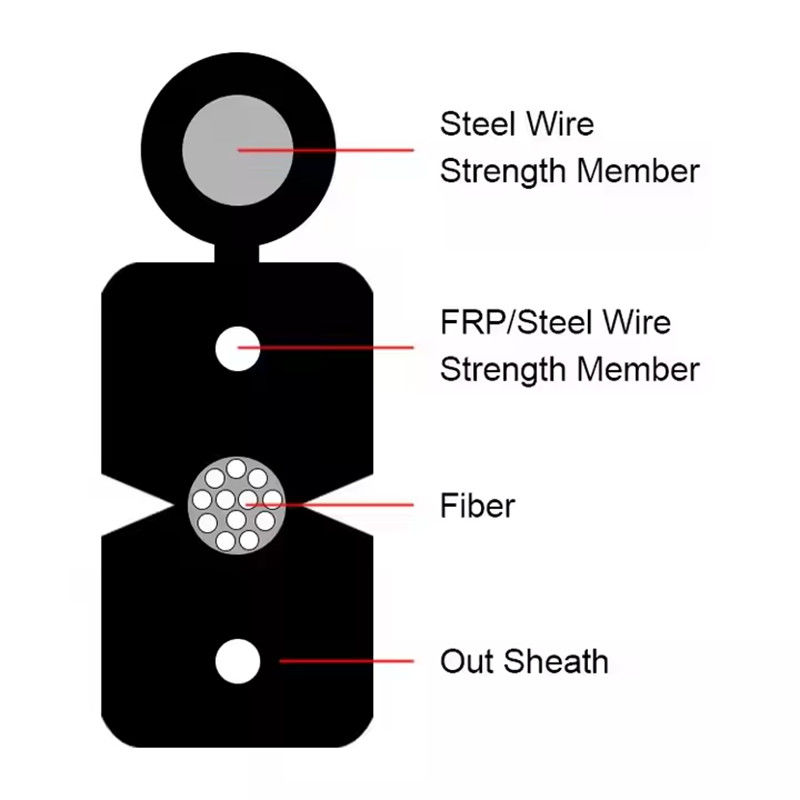

For the indoor cabling, we can choose the type GJXH, which has two steel wire or FRP inside for strenght member. For the outdoor cable, we can choose the GJYXCH type , which has one steel wire passenger and two steel wire strenght member .





Features

Low loss, high perfermance

FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*3.0mm, Φ2.5*6.0 mm

Strength: FRP, QFRP, GFRP, steel wire

Fiber Mode: G.657A1, G657A2, G657B3

Compliant to IEC standard Certification:ISO9001:2008, ROHS,CE

All products undergo 100% strict quality inspection before shipment.



Application



FTTH network for indoor and outdoor Local Area Network and Building Cabling Network

Interconnect between instruments, terminal box and communication





Optical Characteristics

Items Unit Specification

G657a2

Mode Field Diameter 1310nm um 8.6±0.4
1550nm um 9.5±0.5
Cladding Diameter um 125±0.7
Cladding Non-Circularity %  0.7
Core-Cladding Concentricity Error um  0.5
Coating Diameter um 245±5
Coating Non-Circularity %  6.0
Cladding-Coating Concentricity Error um  12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.35
1550nm dBkm 0.21







Cable Parameters

Items Specifications
Fiber Count 2~12
Colored Coating Fiber Dimension 250μm+15μm
Color blue /orange
Strength Member Diameter 0.45mm/0.5mm
Material Steel/FRP
Outer Jacket Dimension 2.0*3.0mm/2.0*5.0mm/2.7*6.5mm
Material LSZH ( Low smoke zero halogen)
Color Black/white





Technical Parameters

Fiber
Count
Cable
Diameter(mm)
Cable Weight
kg/km)
Tensile Strength
Long/Short
Term (N)
Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)

2~4 2.0*3.0 9.5 300/600 1000/2200 10D/20D
6-12 2.7*6.5  11 300/600 1000/2200 10D/20D

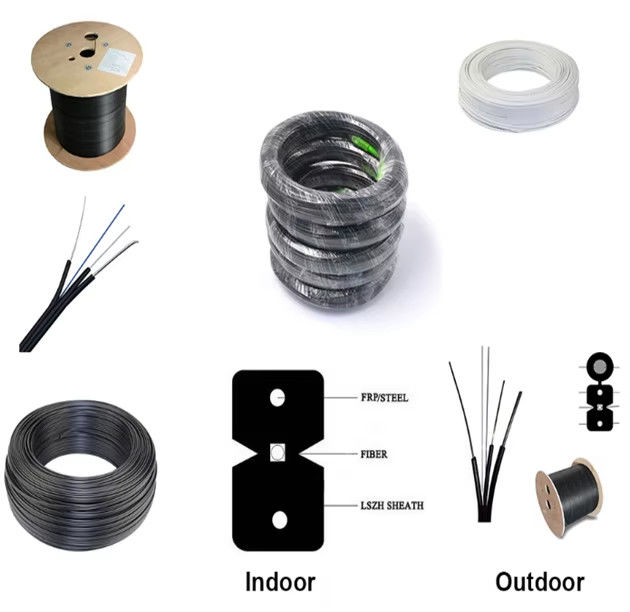

details pictures showes



G657a1 G657a2 LSZH Jacket FTTH Drop Cable Outdoor Drop Cable FTTX Fiber Optic Cable 0

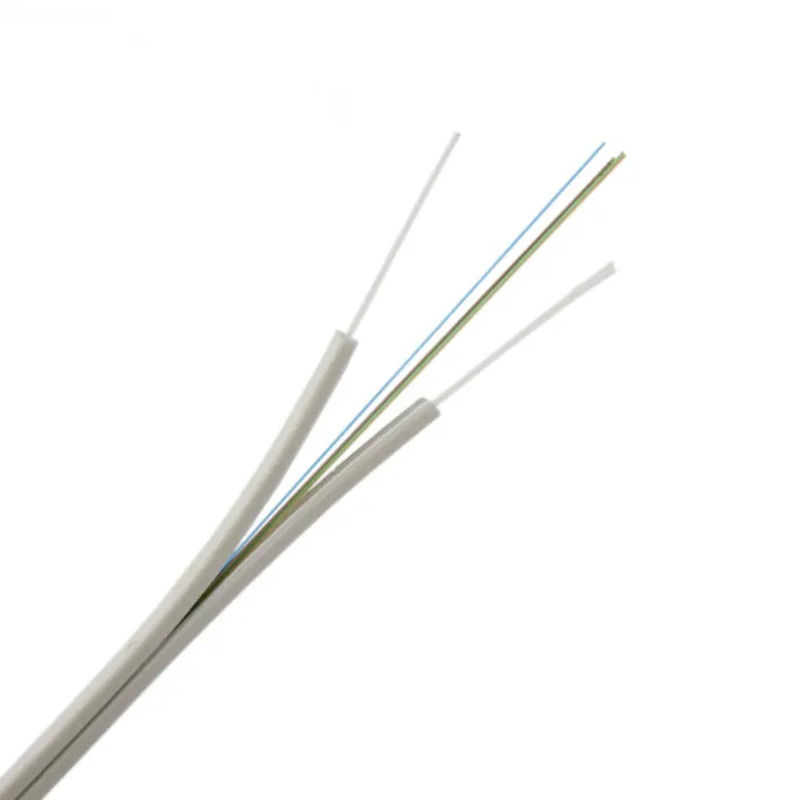

                                                   indoor drop cable





G657a1 G657a2 LSZH Jacket FTTH Drop Cable Outdoor Drop Cable FTTX Fiber Optic Cable 1

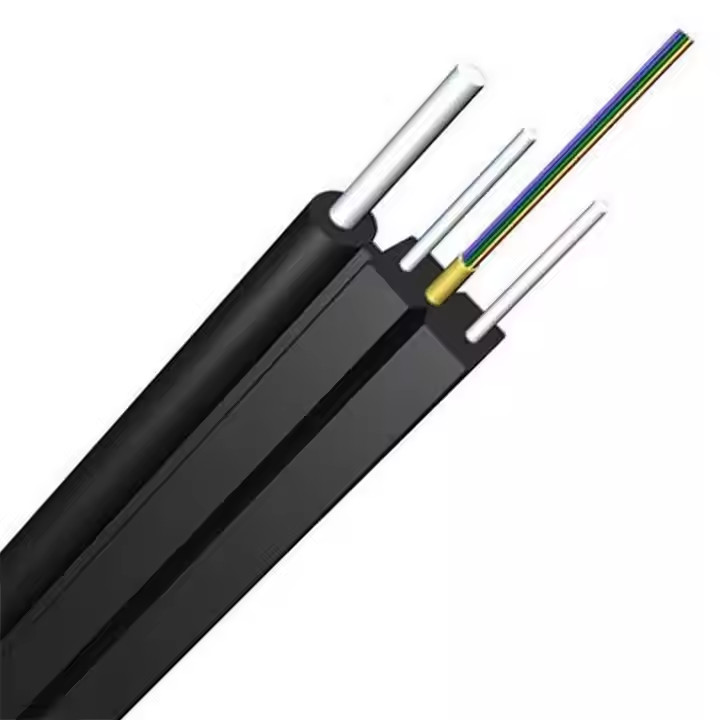

                                              outdoor drop cable





G657a1 G657a2 LSZH Jacket FTTH Drop Cable Outdoor Drop Cable FTTX Fiber Optic Cable 2

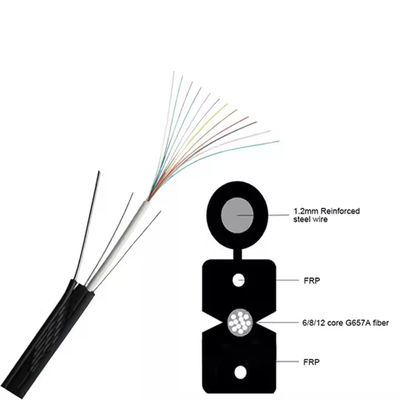

                                           loose tube outdoor drop cable

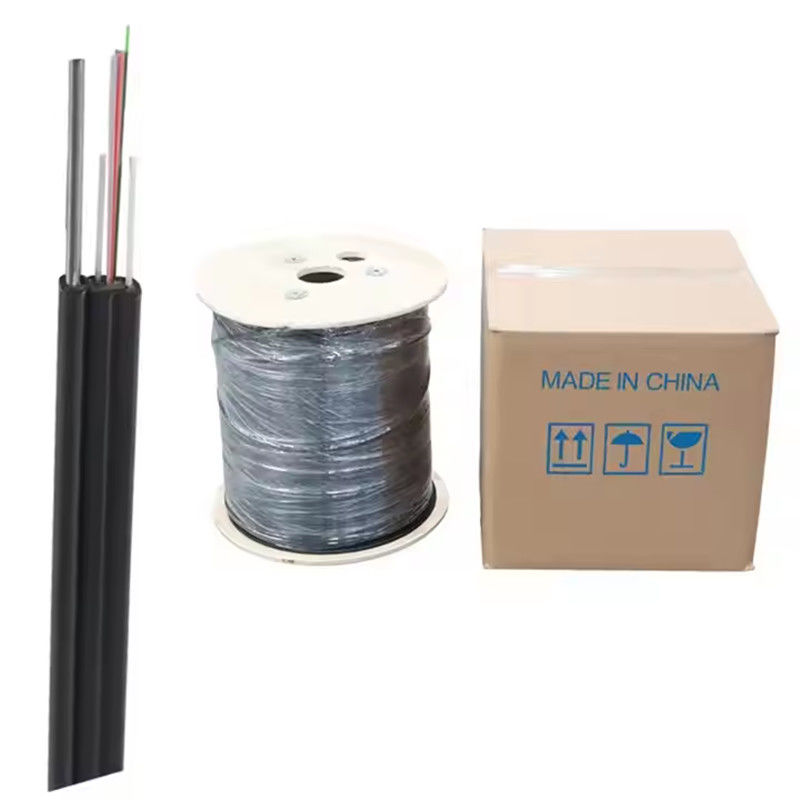

drop cable package



G657a1 G657a2 LSZH Jacket FTTH Drop Cable Outdoor Drop Cable FTTX Fiber Optic Cable 3



                                                    package in the box



G657a1 G657a2 LSZH Jacket FTTH Drop Cable Outdoor Drop Cable FTTX Fiber Optic Cable 4



                                              package in the pallets







For more details, pls contact Philip, Tel:  +8613422342788, What App : +8613422342788,

Email : philip@gzjqofc.com





FAQ


1. Are you trading company or manufacturer?
 We are the manufacturer with 12 years' experience ,we are specialized in research,development and production
 for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2. About the quality?
 We will delivery before tested every fibers when finished production.
 After price confirmation, you can require for free samples to check our quality.

3. Can you accept small order?
   Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4. What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5. Can you accept the OEM service?
  Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
