2 Core Indoor FTTH GJXH-2B6 Drop Cable G657A2 LSZH PVC Jacket

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 4500 per month
Place of Origin: China Brand Name: JQ/OEM
Certification: ISO 9001,ROHS CE-EMC FCC SDOC Model Number: GJXH-2B6

Detail Information

Place Of Origin: Guangzhou,China Manufactuer: Yes
Type: Drop Cable GJXH Fiber Type: G657A1/A2/G652D/G657A1/G657A2
Jacket: LSZH PVC Length: 1km Or 2km
Oem: Available Central Strength Member: FRP Strength Member,steel Wire Strength Member
Weight: 10-20kg/km
Highlight:

GJXH-2B6 Drop Cable

,

2 Core FTTH Drop Cable

,

G657A2 Fiber Optic Drop Cable

Product Description



Product descrpition

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in fiber optic network.
The fibers is position between two parallel steel wire. Then this cable is completed with black or white LSZH sheath.

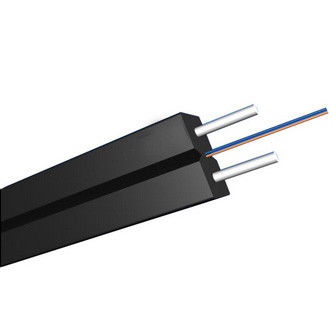

2 Core Indoor FTTH GJXH-2B6 Drop Cable G657A2 LSZH PVC Jacket 0

Indoor Drop Cable Single Mode 1/2/4 Core Self-supporting FTTH drop cable



Single-mode fiber (G657A1 )
A dielectric strength member made of fiberglass reinforced plastic (2*FRP) Or 2*steel wire
The fibers is position between Two FRP/KFRP or parallel steel wire
Then this cable is completed with black or white LSZH sheath

2 Core Indoor FTTH GJXH-2B6 Drop Cable G657A2 LSZH PVC Jacket 1

Related Products

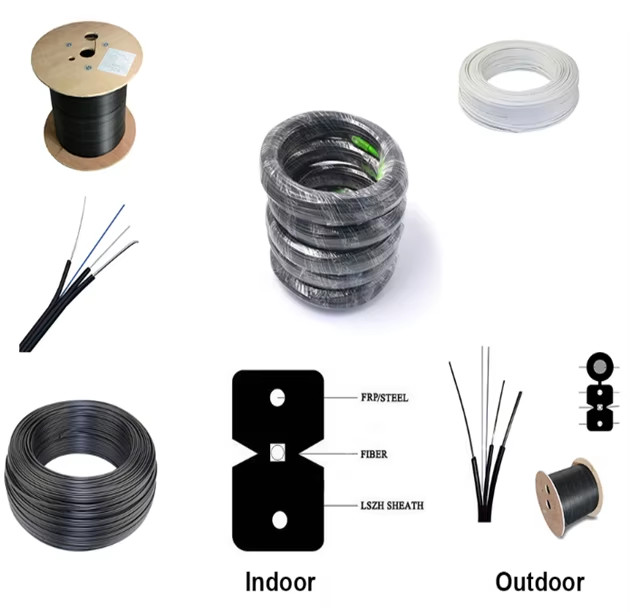

2 Core Indoor FTTH GJXH-2B6 Drop Cable G657A2 LSZH PVC Jacket 2

Fiber Optical

Item
Unit
Specification
G. 657A
Mode field diameter
1310nm
mm
8.6 ± 0.4
Cladding diameter
mm
125.0 ± 0.7
Cladding non-circularity
%
≤1.0
Core concentricity error
mm
≤0.5
Coating diameter
mm
245 ± 5
Coating/cladding concentricity error
mm
≤12
Cable cut-off wavelength
nm
≤ 1260
Attenuation Coefficient
1310nm
dB/km
≤0.35
1550nm
dB/km
≤0.21
Macro-bend loss (1 turn,7.5mm radius)
1550nm
dB/km
≤0.5
1625nm
dB/km
≤1.0
Proof stress level
kpsi
≥100





Technical parameters



Product
Model
Fiber
Count
(core)
Cable Diameter(mm) Cable Weight
(kg/km)
Tensile
Strength
Long/Short
Term(N)

Crush

Resistance
Long/ShortTerm(N)

Bending
Radius
Static/Dynamic
GJXH 1 (2.1+0.1)*(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 2 (2.1+0.1)x(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 4 (2.3+0.1)*(3.3+0.1) 12 1000/2200 200/1000 |15/30
GJXFH 1 (2.1+0.1)x<(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 2 (2.1+0.1)x(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 4 (2.1+0.1)x(3.1+0.1) 11 800/1800 200/1000 15/30
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300

15/30

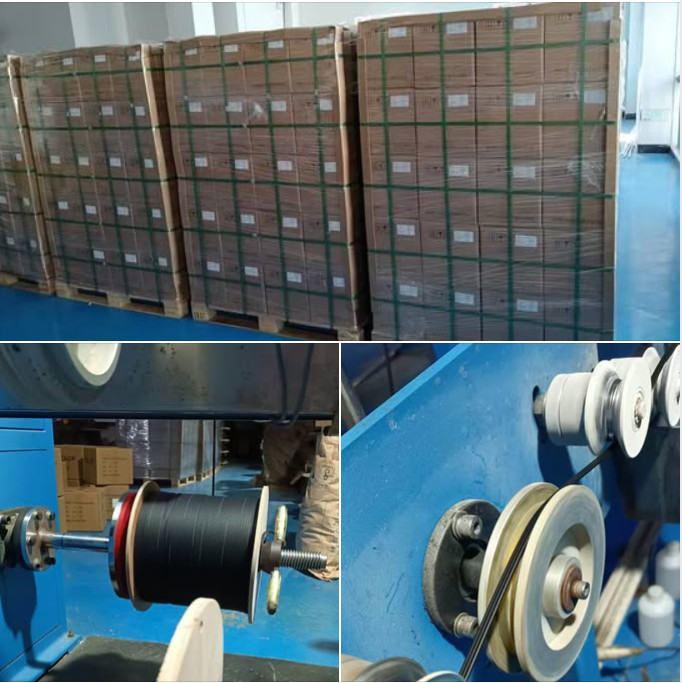

Package



Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.

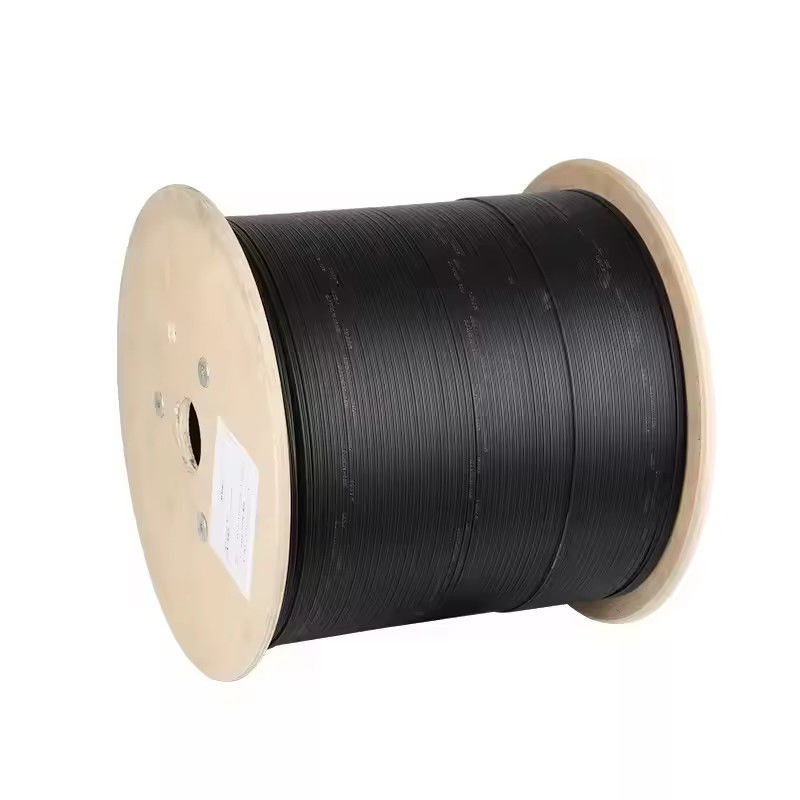

Each length of the cable will be wound on a separate strong wooden.one drum in a carton box



2 Core Indoor FTTH GJXH-2B6 Drop Cable G657A2 LSZH PVC Jacket 3

2 Core Indoor FTTH GJXH-2B6 Drop Cable G657A2 LSZH PVC Jacket 4

2 Core Indoor FTTH GJXH-2B6 Drop Cable G657A2 LSZH PVC Jacket 5

2 Core Indoor FTTH GJXH-2B6 Drop Cable G657A2 LSZH PVC Jacket 6





Lead time:
Quantity(km)
Samples
1-100km
100-500km
Earliest time
1days
3-5 work days
5-7 work days





FAQ



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
